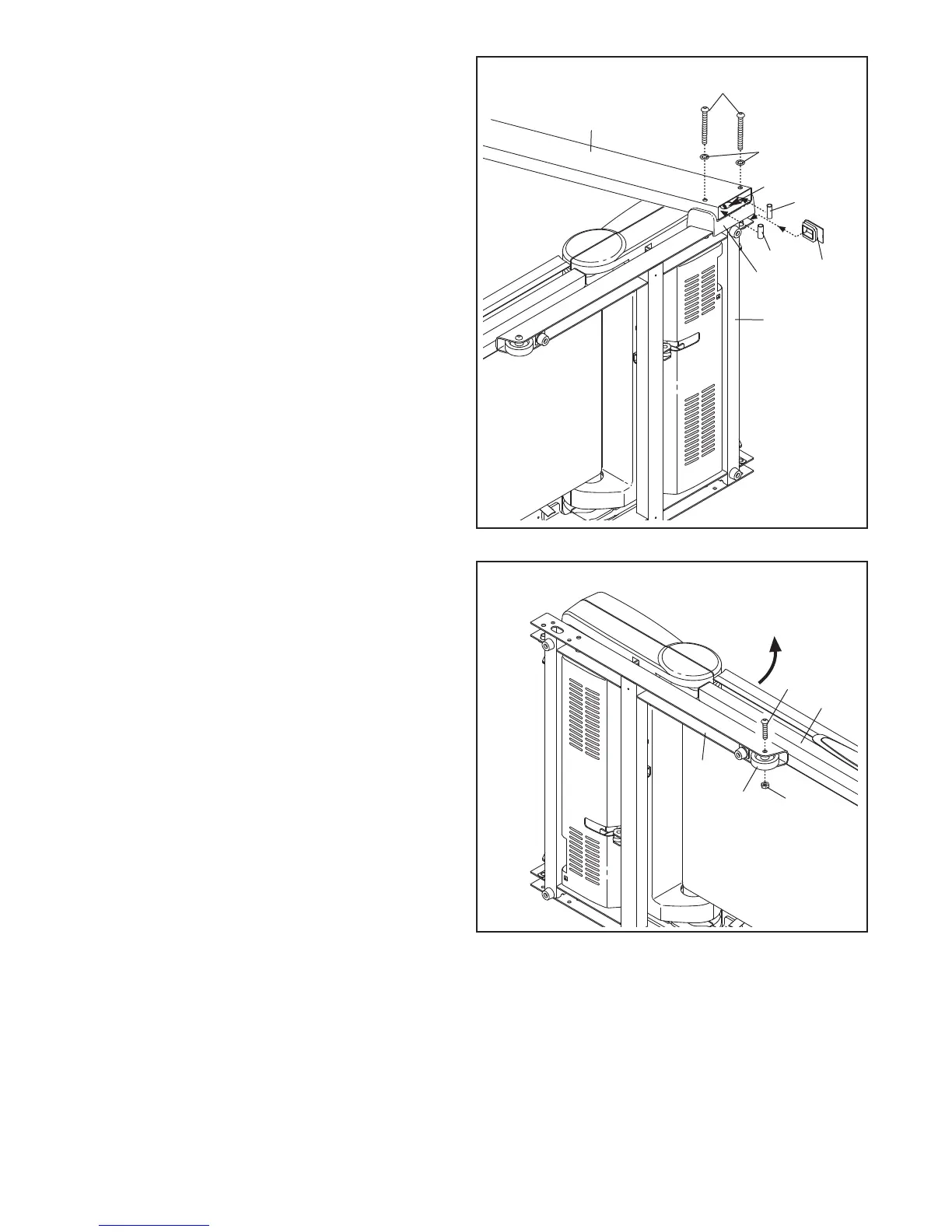

5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
5
7
51
11
87
88
4. Hold a Bolt Spacer (81) inside the lower end of
the Right Upright (80). Insert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Right
Upright and the Bolt Spacer. Repeat this step
w
ith a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Right Upright Spacer (82) and the
R
ight Upright (80) against the Base (87). Be
careful not to pinch the Upright Wire (79).
Tighten the 3/8" x 4" Bolts (9) until the heads of
the Bolts touch the Upright; do not fully tighten
the Bolts yet.
Press a Base Cap (83) into the Base (87).
82
80
79
12
83
81
81
9
4
87
