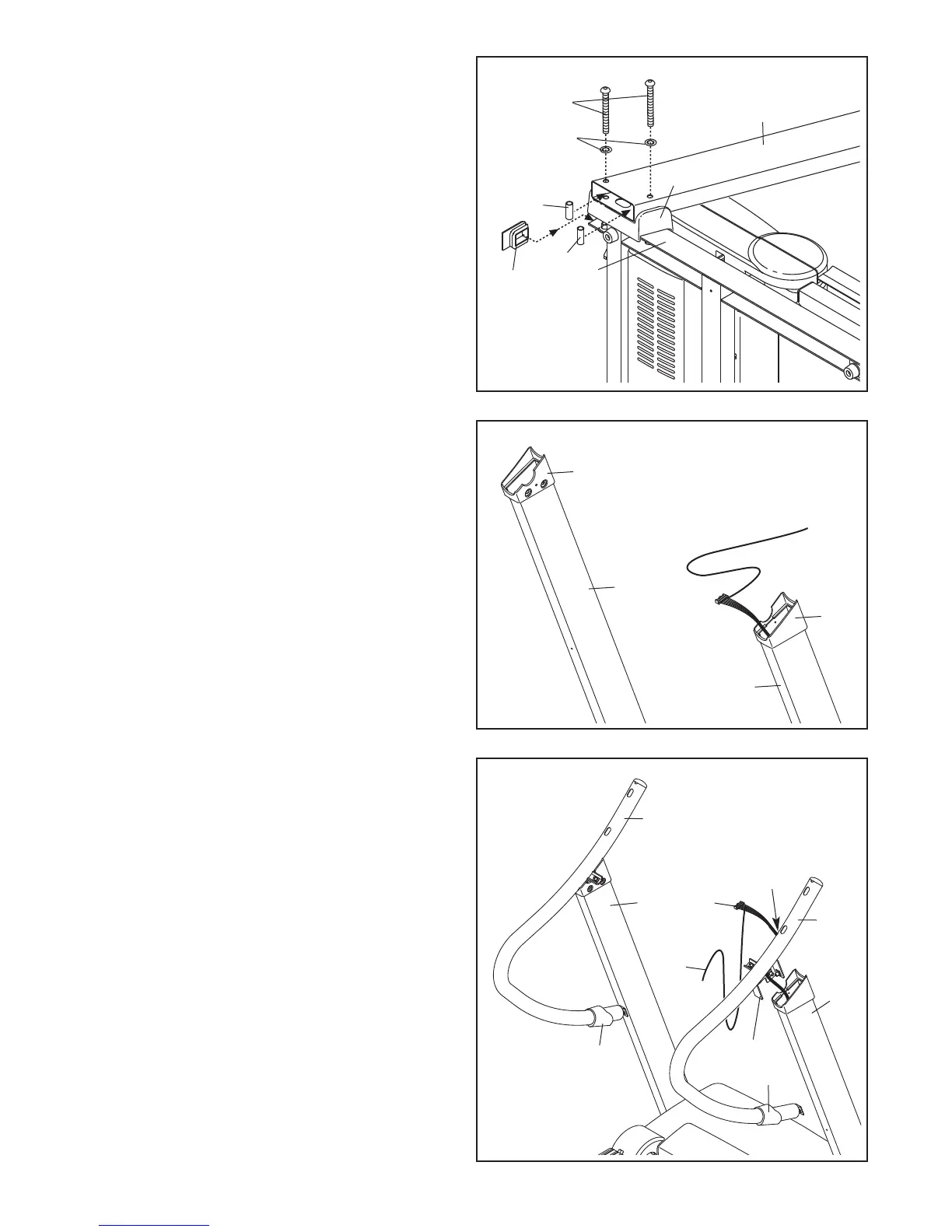

7. Slide the Left Handrail Spacer (74) and the Right
Handrail Spacer (78) onto the top of the Left
Upright (75) and the Right Upright (80).
74
78
75
80
7
6. Hold a Bolt Spacer (81) inside the lower end of
the Left Upright (75). Insert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Left
Upright and the Bolt Spacer. Repeat this step
w
ith a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (86) and the Left
U
pright (75) against the Base (87). Tighten the
3/8" x 4" Bolts (9) until the heads of the Bolts
touch the Upright; do not fully tighten the
Bolts yet.
Press a Base Cap (83) into the Base (87).
With the help of a second person, tip the tread-
mill so that the Base (87) is flat on the floor.
86
75
9
87
81
81
83
12
6
8. Insert the end of the Upright Wire (79) into the
bottom of the Right Handrail (104) and out of the
hole in the side of the Right Handrail.
Slide the Handrail Caps (105) onto the lower
ends of the Left Handrail (107) and the Right
Handrail (104). Then, insert the brackets on the
Handrails into the tops of the Uprights (75, 80).
Remove the wire tie from the Upright Wire (79).
107
105
105
Hole
Wire
Tie
Bracket
75
79
104
80
8
9
