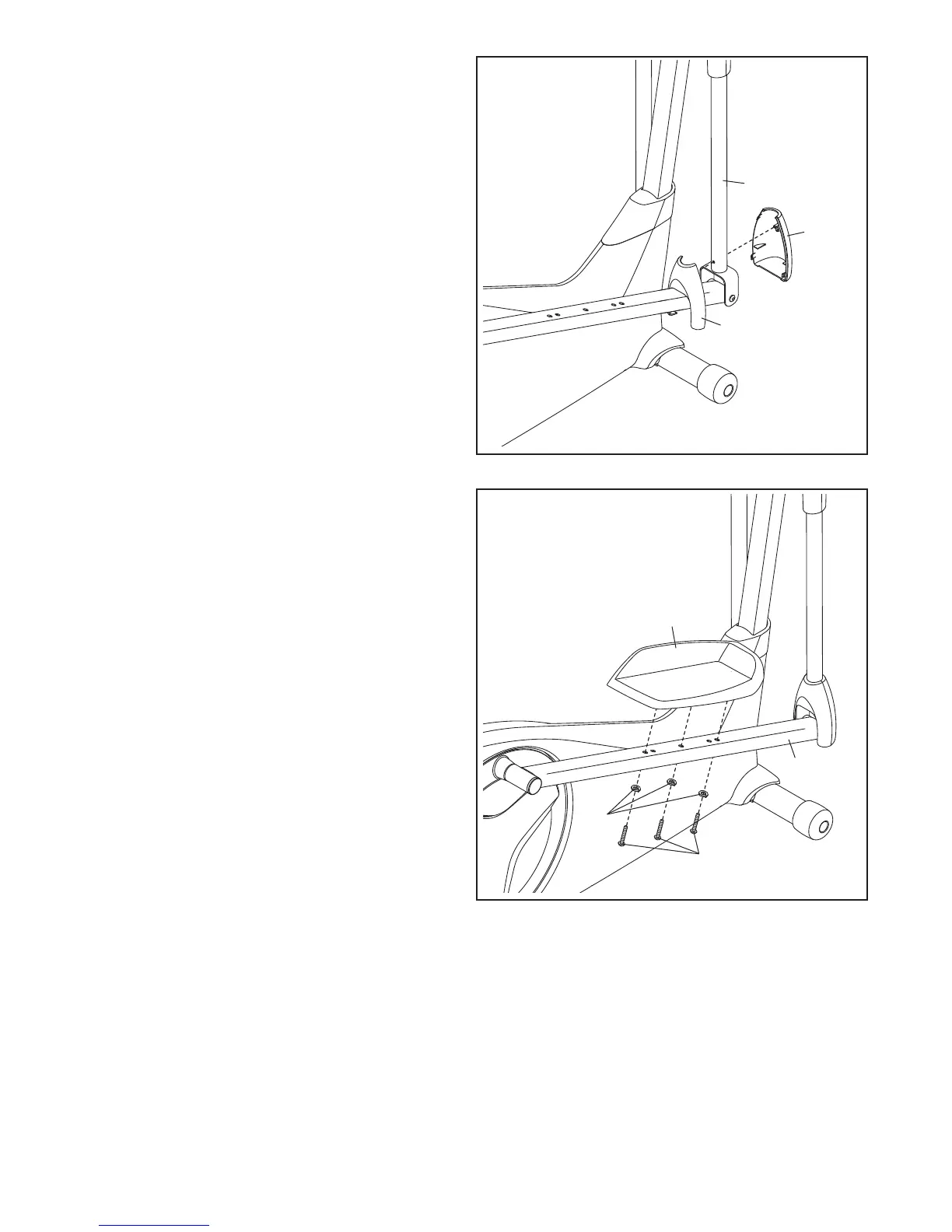

15. Identify the Right Pedal (13), which is marked
with a “Right” sticker.
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 48mm Patch Screws
(75) and three M10 Split Washers (78). Make
sure to use the center hole and the two
outer holes to attach the Right Pedal.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
14
20
21
14. Press a Front Leg Cover (20) and a Rear Leg
Cover (21) together around the right Upper
Body Leg (6).
Repeat this step for the other side of the
e
lliptical exerciser.
6
