HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.

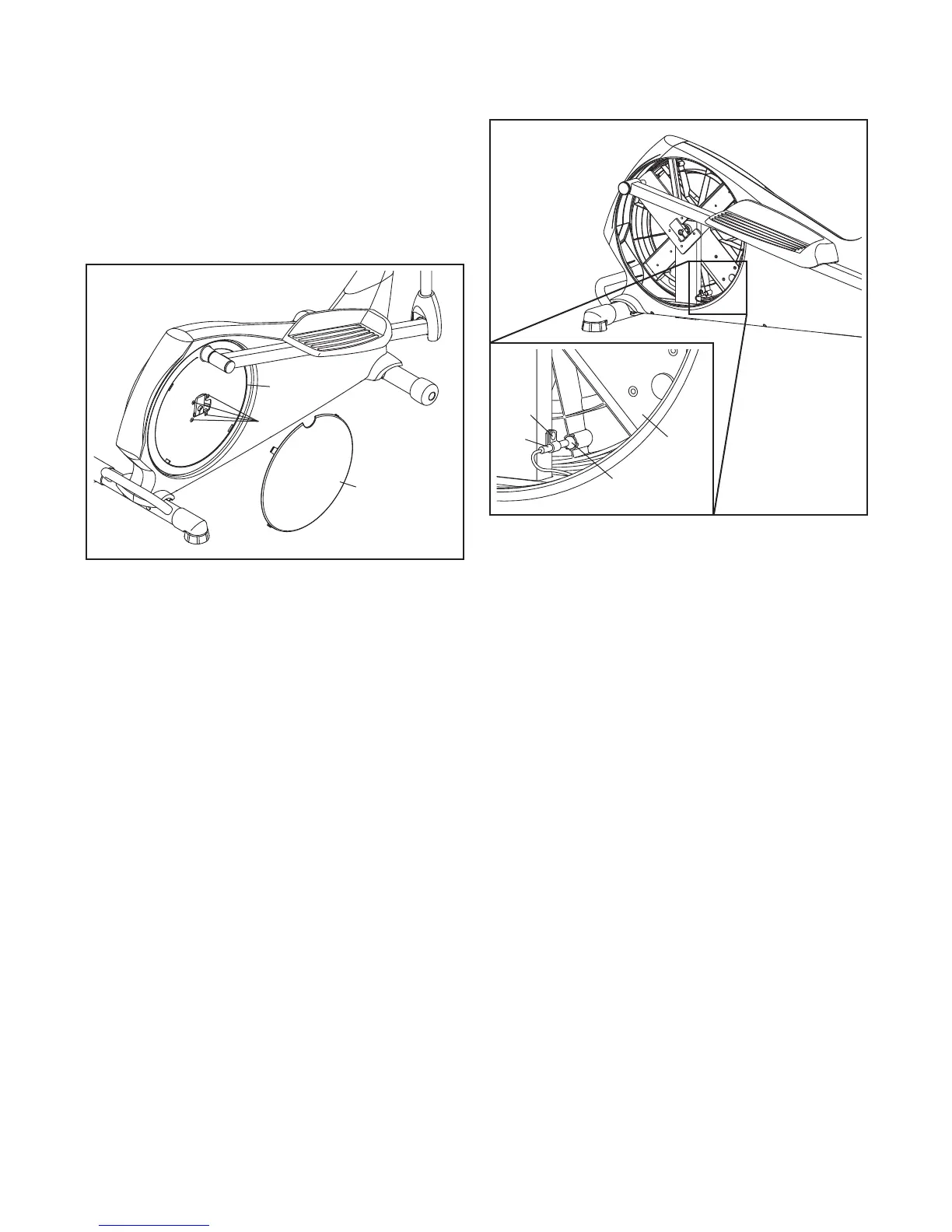

To adjust the reed switch, you must remove the right
disc cover and the right pedal disc.
Using a flat screwdriver, remove the right Disc Cover
(18).
Then, remove the M8 x 14mm Button Screws (81)
from the Right Pedal Disc (27), and gently rotate the
Right Pedal Disc out of the way.
Locate the Reed Switch (58). Loosen, but do not
r
emove, the M4 x 16mm Screw (92).
Next, rotate the Crank Assembly (24) until a Magnet
(41) is aligned with the Reed Switch (58). Slide the
Reed Switch slightly toward or away from the Magnet.
Then, retighten the M4 x 16mm Screw (92).
Rotate the Crank Assembly (24) for a moment. Repeat
these actions until the console displays correct feed-
back.
When the reed switch is correctly adjusted, reattach
the right pedal disc and the right disc cover.
