Page #12 background imageLoading...
Page #12 background image
Positively earthed
ConnecttheBLACKlead(batteryclip)fromthechargertotheNegative(-)battery
terminal.
ConnecttheREDlead(batteryclip)fromthechargertothevehicle’schassisawayfrom
thefuellineormovingparts.
12
12V 35A 7-Stage
POWER ON
BULK CHARGE
ABSORPTION
FULLY CHARGED
VOLTS/AMPS
CHARGE RATE BATTERY TYPE RECONDITION
ON
OFF

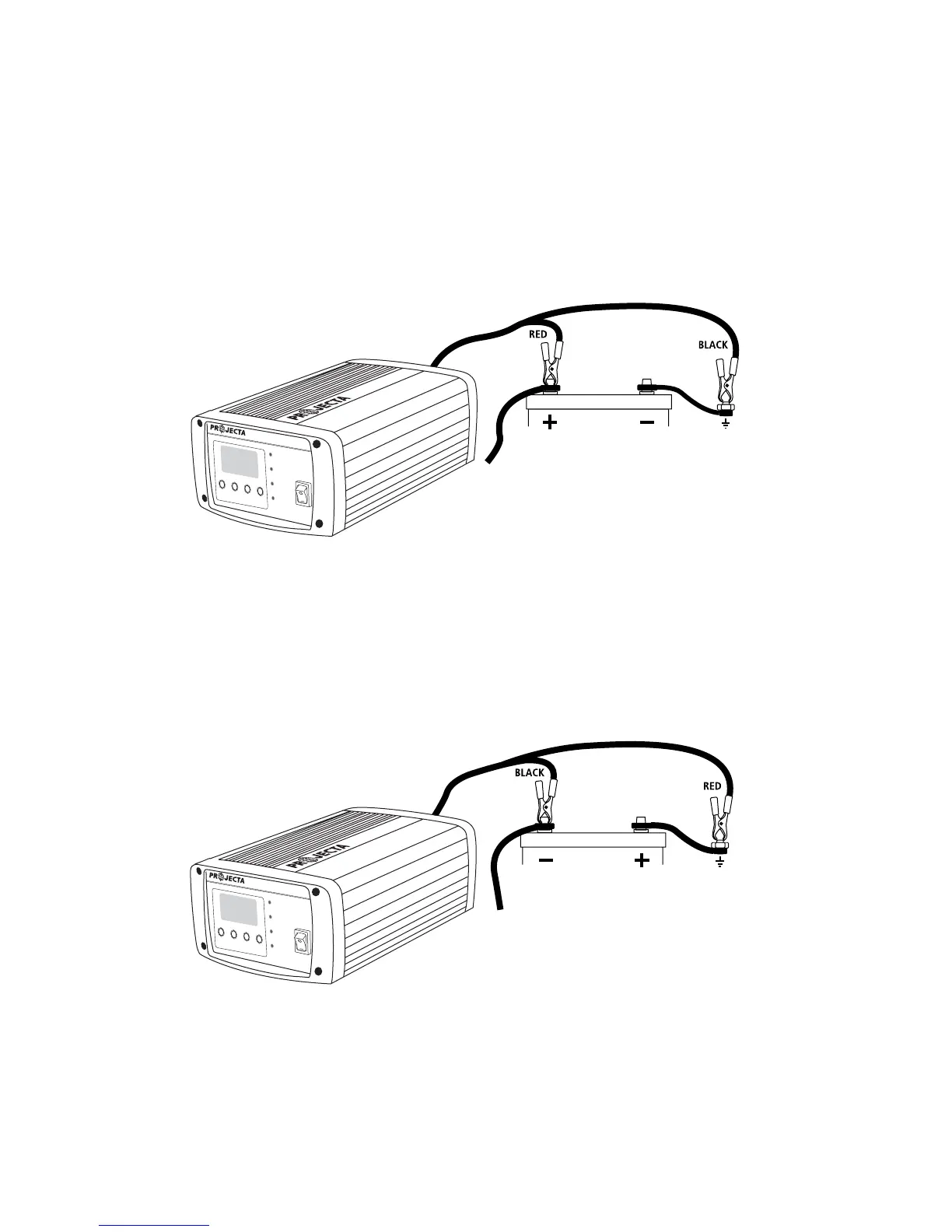

Connection in vehicle
(positively earthed)
12V 35A 7-Stage
POWER ON
BULK CHARGE
ABSORPTION
FULLY CHARGED
VOLTS/AMPS CHARGE RATE BAT
TERY TYPE RECONDITION
ON
OFF
Connection in vehicle
(negatively earthed)
STEP 2B – BATTERY IN VEHICLE
DetermineifthevehicleisPositively(+)orNegatively(-)earthed.Negativelyearthed
vehicleshaveacable(usuallyblack)fromtheNegativebatteryterminaltothevehicle’s
chassis.
Negatively earthed (most vehicles)
ConnecttheREDlead(batteryclip)fromthechargertothePositive(+)batteryterminal.
ConnecttheBLACKlead(batteryclip)fromthechargertothevehicle’schassisaway
fromthefuellineormovingparts.
