12
4 Display Explanation and Troubleshooting

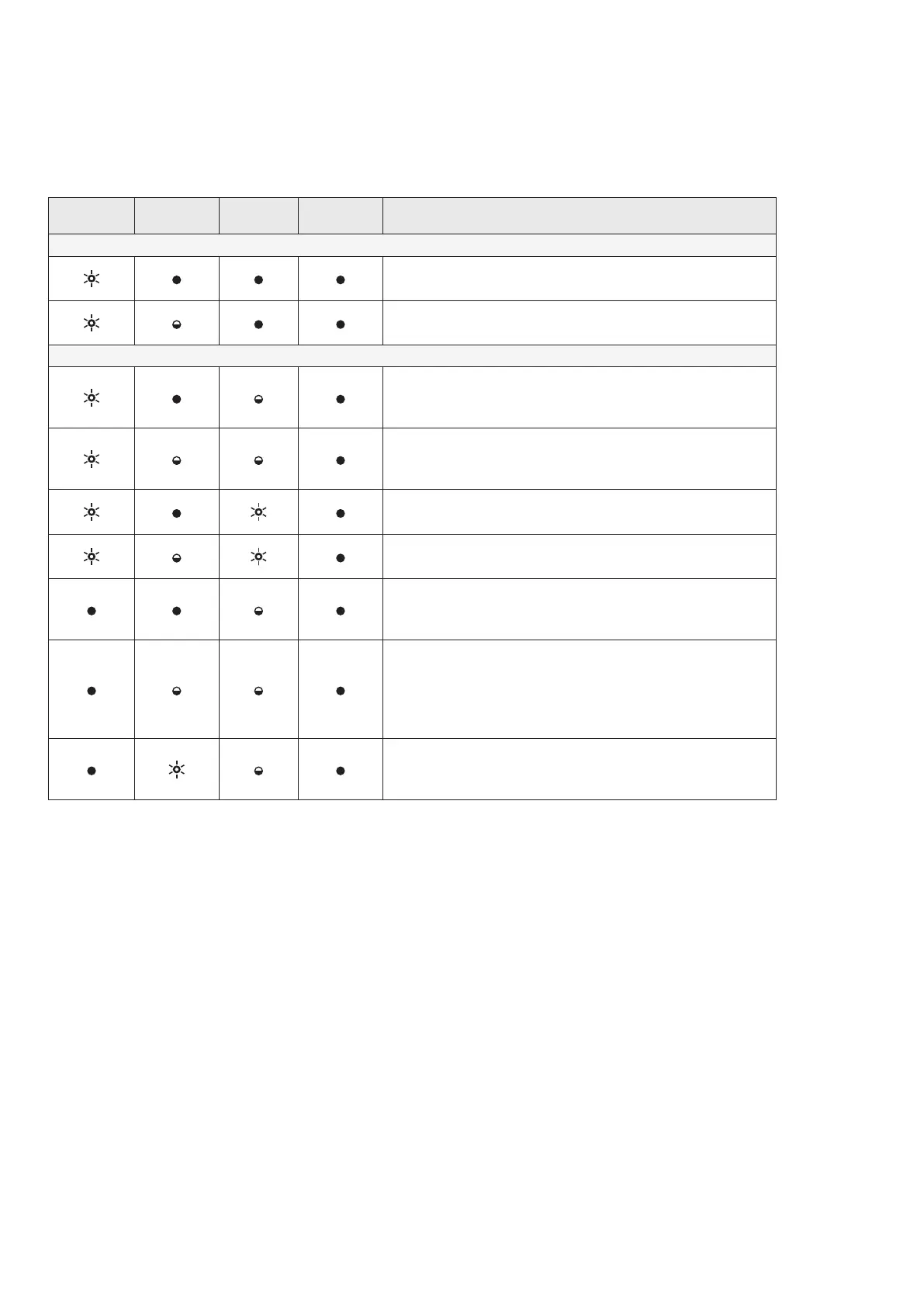

4.1 Display Explanation
* When the PM100J detects the voltage of the vehicle battery is below 2V, it assumes that the vehicle battery
is not connected to our system.
MAINS. VEHICLE
BATTERY
CHARGE FAULT DESCRIPTION
POWER SUPPLY MODE (PS MODE)
AC grid is working as the source of power supply.
No vehicle battery connected
AC grid is working as the source of power supply.
Vehicle battery has been connected.
BATTERY CHARGER MODE (CH MODE)
“Charge” ashes once every sec.
No vehicle battery connected.
Absorption charging by Mains Grid.
“Charge” ashes once every sec.
Vehicle battery connected.
Absorption charging by Mains Grid.
Floating charge by Mains Grid.
No vehicle battery connected.
Floating charge by Mains Grid.
Vehicle battery connected.
“Charge” ashes as 1sec on then 2 secs off.
AC Mains is not available,10.5V≤ house battery voltage <16V.
No vehicle battery connected
“Charge” ashes as 1sec on then 2 secs off.
“Vehicle Bat.”ashes twice every sec .
AC Mains is not available,10.5V≤ house battery voltage <16V.
VCR doesn’t charge because of the voltage of vehicle battery
doesn’t meet the requirements.
“Charge” ashes once every second.
AC Mains is not available.
The engine is charging the house battery via VCR.
