9
Illuminating
Dim
Flash

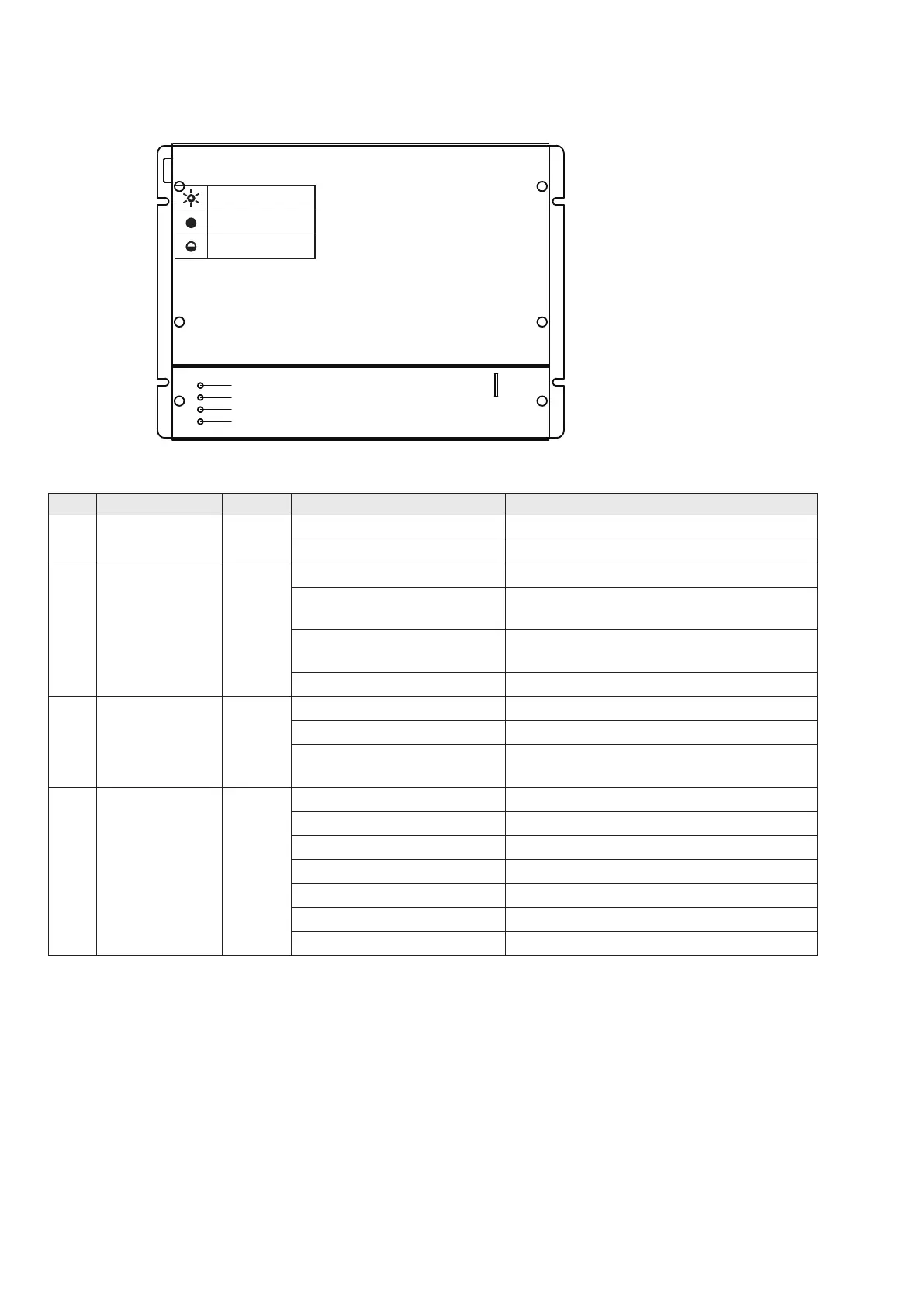

3.3 LED Diagnostic Codes
No. LED COLOUR STATUS DESCRIPTION
1 Mains Green
ON AC input ok
OFF AC disconnected
2 Vehicle Battery Green
ON VCR connected
Slow ashing (ash once every
second)
The voltage of vehicle battery is normal but the
house battery is charged by the AC
Quick ashing (ash twice every
second)
The voltage of vehicle battery doesn’t meet the
requirements, VCR disconnected
OFF No vehicle battery connected
3 Charge Green
ON Battery is fully charged or in oating phase
Flashing (ash once every second) Battery is charging
Slow ashing (1 second ON 2
seconds OFF)
Battery is discharging
4 FAULT Red
ON Fault
Flashes 1 time every cycle House battery voltage low
Flashes 2 times every cycle House battery voltage high
Flashes 3 times every cycle Over temp (Heatsink)
Flashes 4 times every cycle Bulk charge timeout
Flashes 5 times every cycle VCR anomaly
Flashes 6 times every cycle Over temp (Environment)
3
1
2
4
