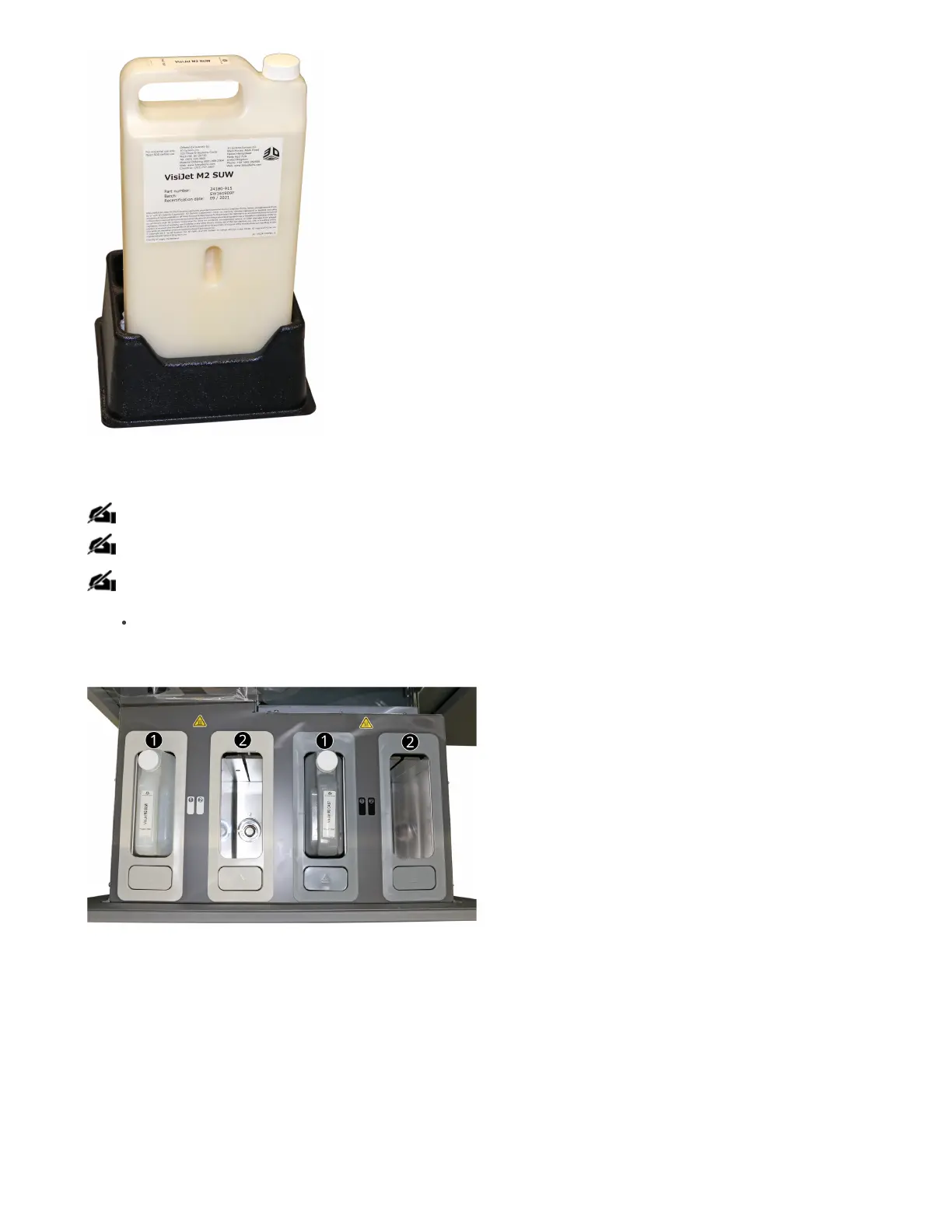

2. If drawer is not already open, push to unlock drawer.
3. Pull open the MDM drawer.
NOTE: The steps to install a support cartridge are the same as installing a part cartridge.
NOTE: To install cartridges into the MDM drawer properly ensure that the small cap be installed away from the user.
NOTE:It is important to verify the cartridges have been audibly clicked into place, have material in them, and the cartridge caps properly
ventilated; otherwise the printer may not be able to pull material from thebottles, potentially resulting in the following fault codes:
93-134 thru 137
4. Place cartridge in slot and push down until you hear it click in place.
5. Vent each cartridge by loosening the material cap (A) by a 1/2 turn counterclockwise.
