Fig.3
2
1
CLAMP
SAFETY
CABLE
ECL
8
- 2 - INSTALLATION
2.1 MOUNTING
ECL may be set up on a solid and even surface. The unit can also be mounted upside down to a cross arm.
For xing, stable mounting clips are required. The mounting place must be of sucient stability and be
able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.

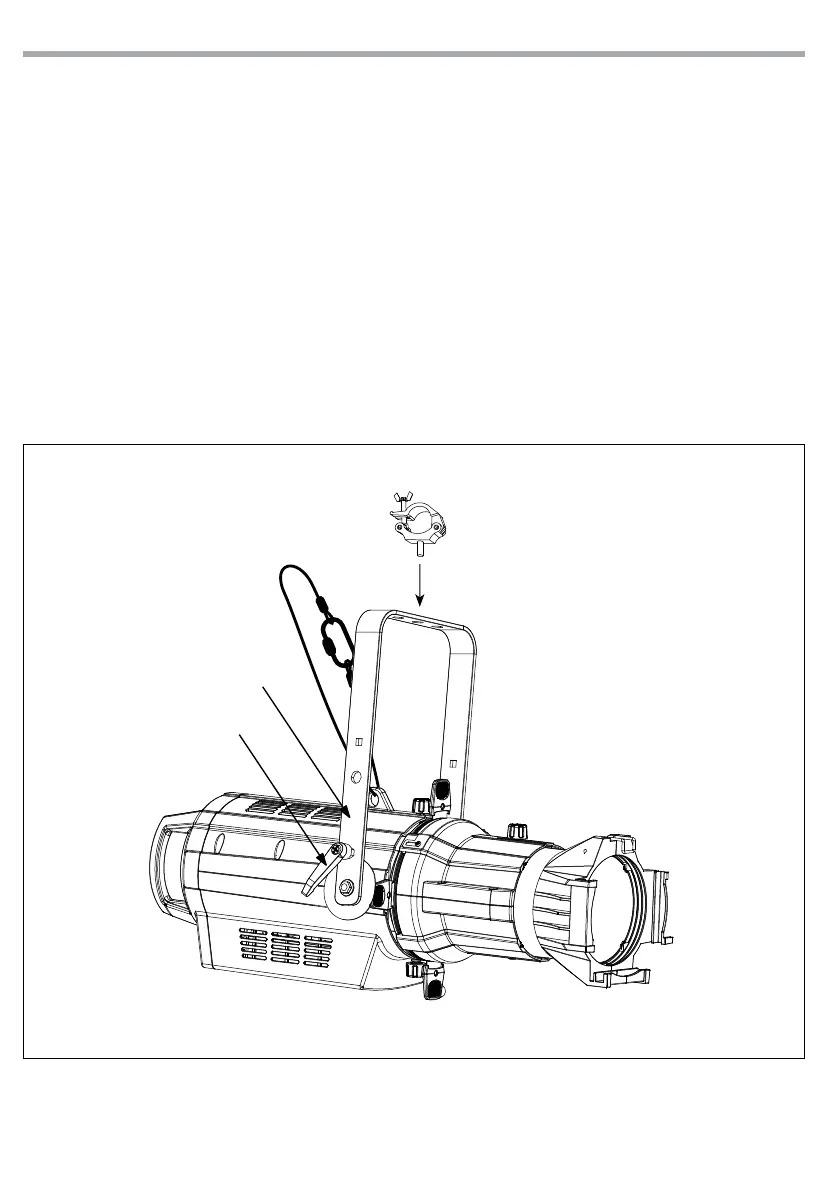

• Install the projector at a suitable location by means of the mounting bracket (1).
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.
• Adjust the projector and use the knob (2) to slightly release or tighten the locking mechanism of the
bracket if is necessary.
