ProLights H150UFC - 2 Functions and Settings; Operating Elements and Connections; Control Panel

5
H150UFC

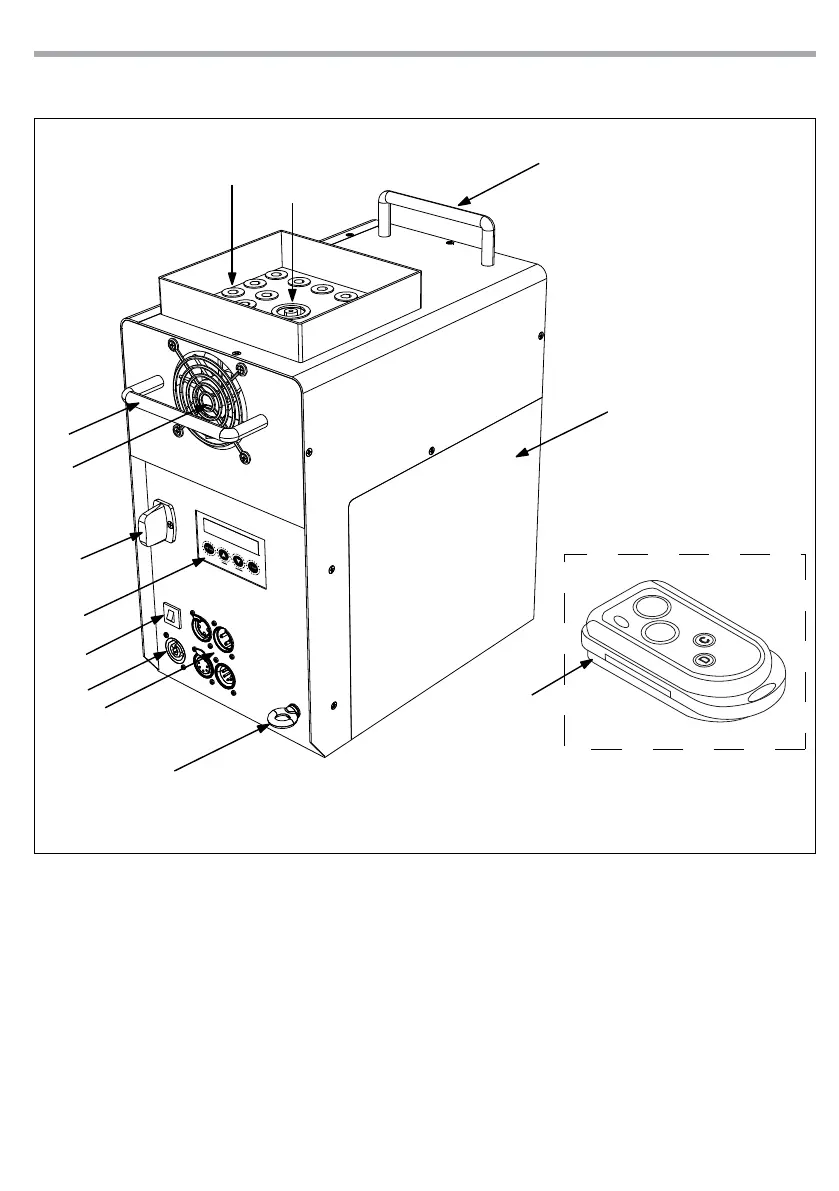

1.3 OPERATING ELEMENTS AND CONNECTIONS
1. NOZZLE
2. LED PANEL
3. HANDLES
4. TANK COMPARTMENT
5. SAFETY RING to attach safety cable;
6. CONNECTORS:
- DMX IN (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
- DMX IN (5-pole XLR):
1= massa, 2 = DMX -, 3 = DMX +, 4 N/C, 5 N/C
- DMX OUT (3-pole XLR):
1= massa, 2 = DMX -, 3 = DMX +
- DMX OUT (5-pole XLR):
1= massa, 2 = DMX -, 3 = DMX +, 4 N/C, 5 N/C
7. MAINS INPUT (Power connector) for
connection to a socket (220-240V~/50-60Hz)
via the supplied mains cable.
8. CIRCUIT BREAKER
9. CONTROL PANEL
10. WIRELESS RECEIVER
11. COOLING FAN
12. WIRELESS TRANSMITTER
Rear panel Fig.1
A
B
1
2
3
3
4
5
6
7
8
9
10
11
12
