Prolon T1100 - Menu Guide; 8.8) Range; 9.1) Override; 10.1) Max Slab Temp

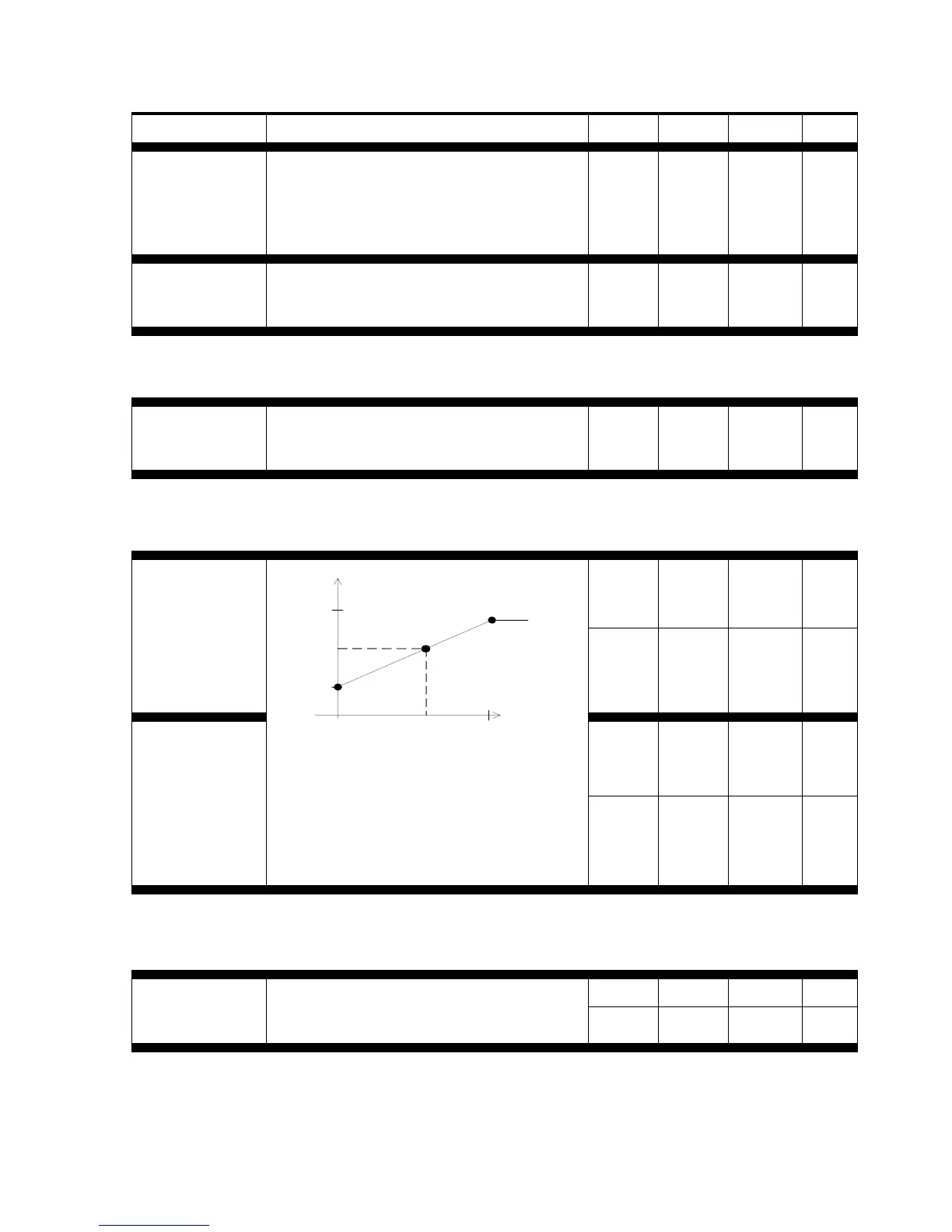

Section Description Min Max Default Units
8.8) Range The analog output can be set to work over
different voltage ranges:
- - 0-10V -
• 0-10VDC
• 2-10VDC
• 0-5VDC
8.9) Override This option lets you manually override the
analog output or set it back to automatic
control.
0 100 AUTO %
9.1) Override This option lets you assign an output to
control the radiant floor system. It also gives
access to the radiant floor menu.
-- None-
5 30 27 °C10.1) Max Slab
Temp
41 86 80.6 °F
5 30 21 °C
Calculated
Output
Level
Slab Temperature
Min
Max
Slab
Temperature
Setpoint
0% 100%
10.2) Min Slab
Temp
The Slab Temperature Setpoint is
determined using a scale defined by the
minimum and maximum slab temperatures.
The Calculated Output Level that
determines the Slab Temperature Setpoint
is defined by the configuration of the output
selected to control the radiant floor.
41 86 69.8 °F
5 30 19 °C11.1) Min Slab
Temp
When in unoccupied mode, the scale
defined above is ignored, and the controller
maintains this temperature in the slab.
41 86 66.2 °F
15
