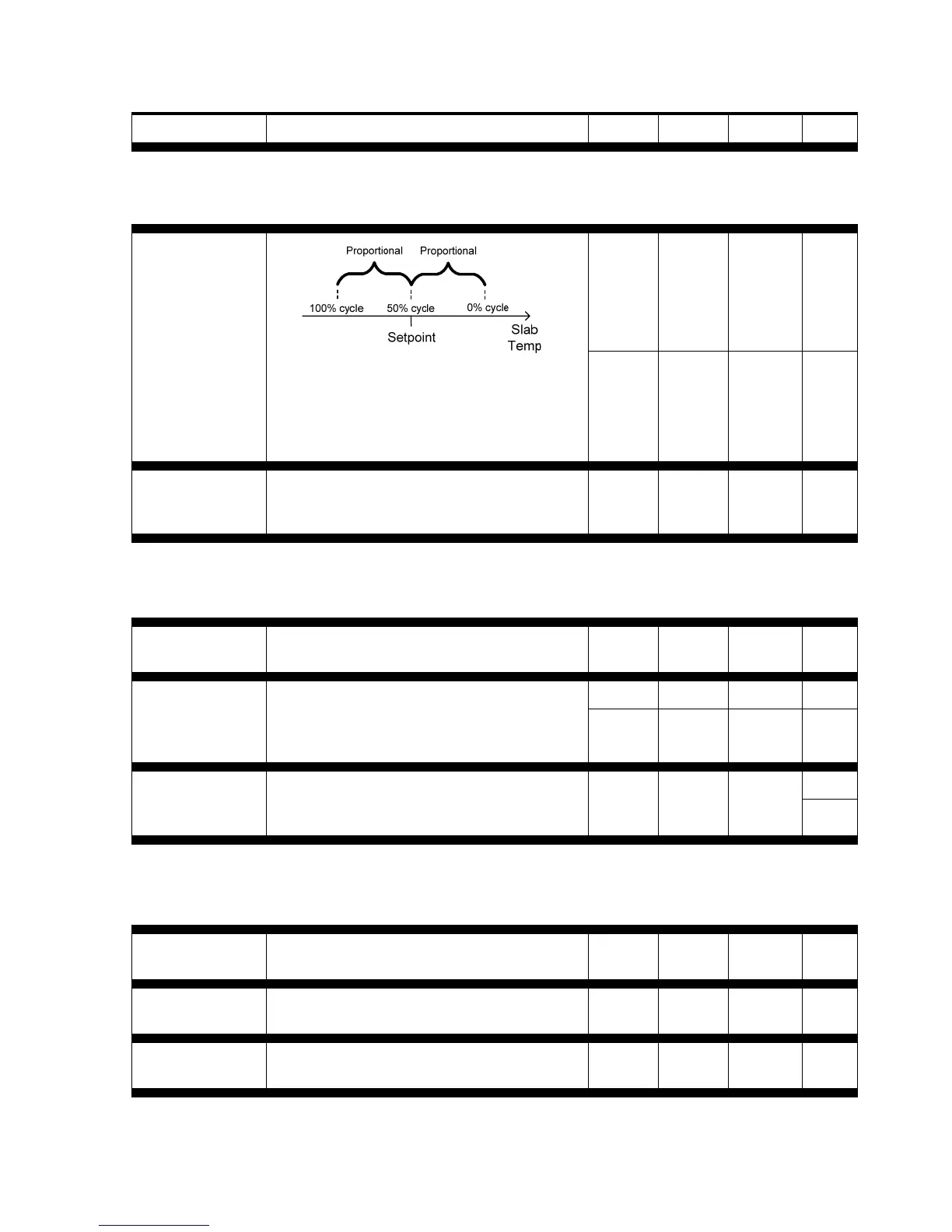

Prolon T1100 - Menu Guide; 12.1) Proportional; 13.1) Cycle Length; 14.1) GrpCode1

Section Description Min Max Default Units
0 10 1 °C12.1)
Proportional
0 18 1.8 °F
The output pulses at 50% of the cycle
length when the slab temperature reaches
the setpoint. The proportional band will
increase or reduce the length of the pulse
depending on the offset from the setpoint.
12.2) Integral Defined as the amount of time required to
cause the pulse width to vary by 100% to
compensate for a continual error of 1 °C.
0 600 60 min
13.1) Cycle
Length
The amount of time of a total ON AND OFF
cycle.
5 250 15 min
5 30 15 °C13.2) Outside
Cutoff
Above this temperature, the radiant floor
output always remains deactivated. (There
is a 2°C differential to allow for temperature
fluctuations).
41 86 59 °F
-15 15 0 °C13.3) Calibration This applies an offset to the slab
temperature reading, if required.
-27 -27 0 °F
14.1) GrpCode1 One of three control groups that this
thermostat can belong to. Zero is ignored.
0 250 0 -
14.2) GrpCode2 One of three control groups that this
thermostat can belong to. Zero is ignored.
0 250 0 -
14.3) GrpCode3 One of three control groups that this
thermostat can belong to. Zero is ignored.
0 250 0 -
