17
ProMinent
®
Equipment overview

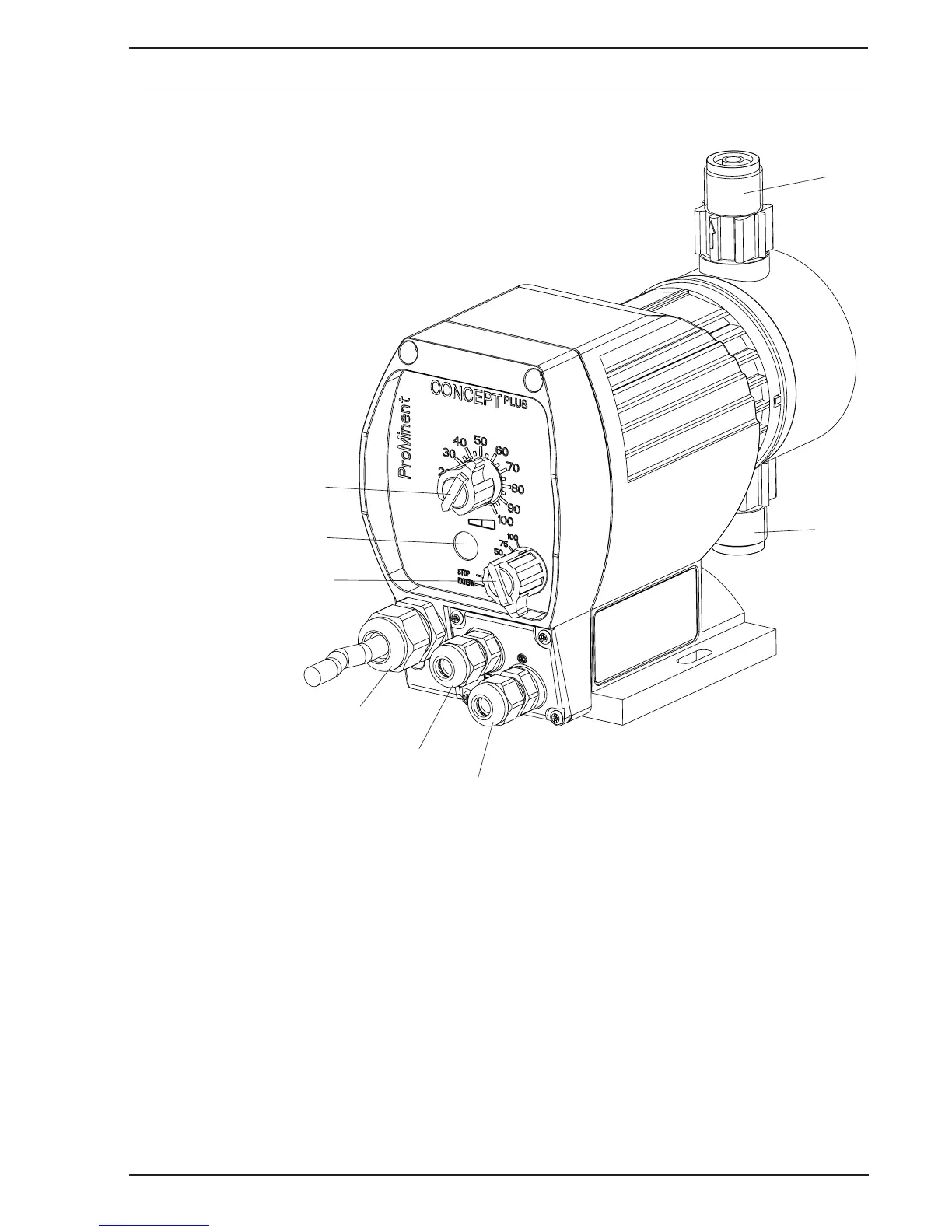

1 Equipment overview
1 Stroke length adjustment knob
2 Error/operating indicator (error - red / operation - green)
3 Multifunction switch (stroke rates (in % of 180 strokes/min), stop,
operating mode ”external” (Retrofit kit))
4 Power cable
5 “External actuation” socket (actuation via contact signal in ”external”
operating mode; Retrofit kit)
6 “Float switch” socket (for 1-stage float switch; Retrofit kit)
7 Suction valve
8 Discharge valve
The leakage bore is between the suction valve and the drive housing.
7
4
6
8
5
2
1
3
