Address Type Slot

O_Adr_Clear_Count Int 6

O_Adr_Operation_Mode Int 7

O_Adr_Charge Int 8

O_Adr_Frequency Int 9

I_Adr_Status Int 10

I_Adr_Actual_Mode Int 11

I_Adr_Actual_Factor Int 12

I_Adr_Cont_Frequency Int 13

I_Adr_Batch_Frequency Int 14

I_Adr_Stroke_Length Int 15

I_Adr_Remain_Strokes Int 16

I_Adr_Error Int 17

I_Adr_Warning Int 18

I_Adr_Max_Frequency Int 19

I_Adr_StrokeNumber Int 20

I_Adr_VpS Int 21

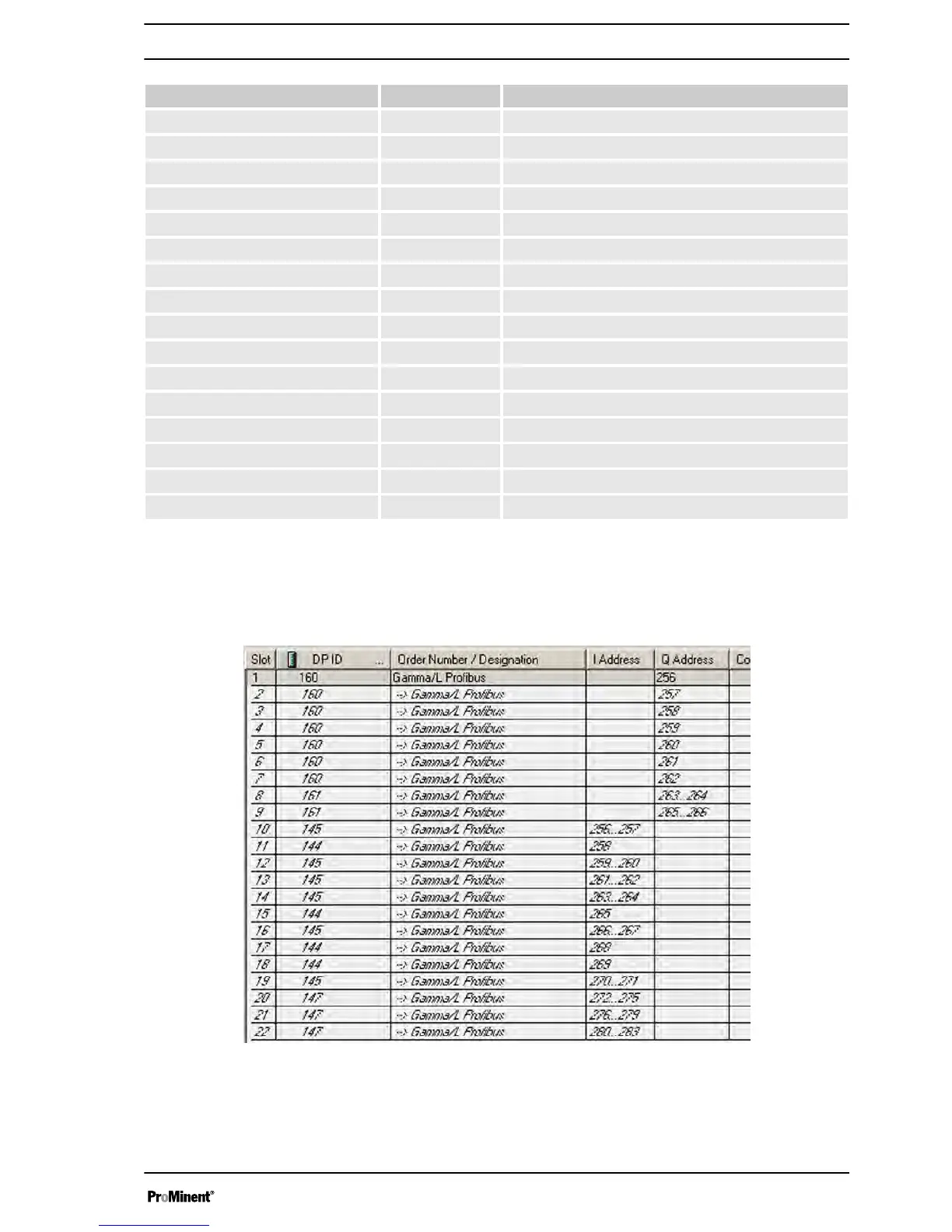

The input addresses or output addresses of gamma/ L or Sigma for the

CPU can be read out in the Hardware Configurator under gamma/ L or

Sigma for the appropriate slots:

Fig. 32

Relationship: Slots - address ranges of the

function block

Function blocks for gamma/L and Sigmas
