9.
Mark the PROFIBUS
®
subnet and click
[OK] .
ð
The Hardware Configurator connects the CPU (the Master
System) with the Subnet of the PROFIBUS
®
, which the Hard‐
ware Configurator now displays in this manner:

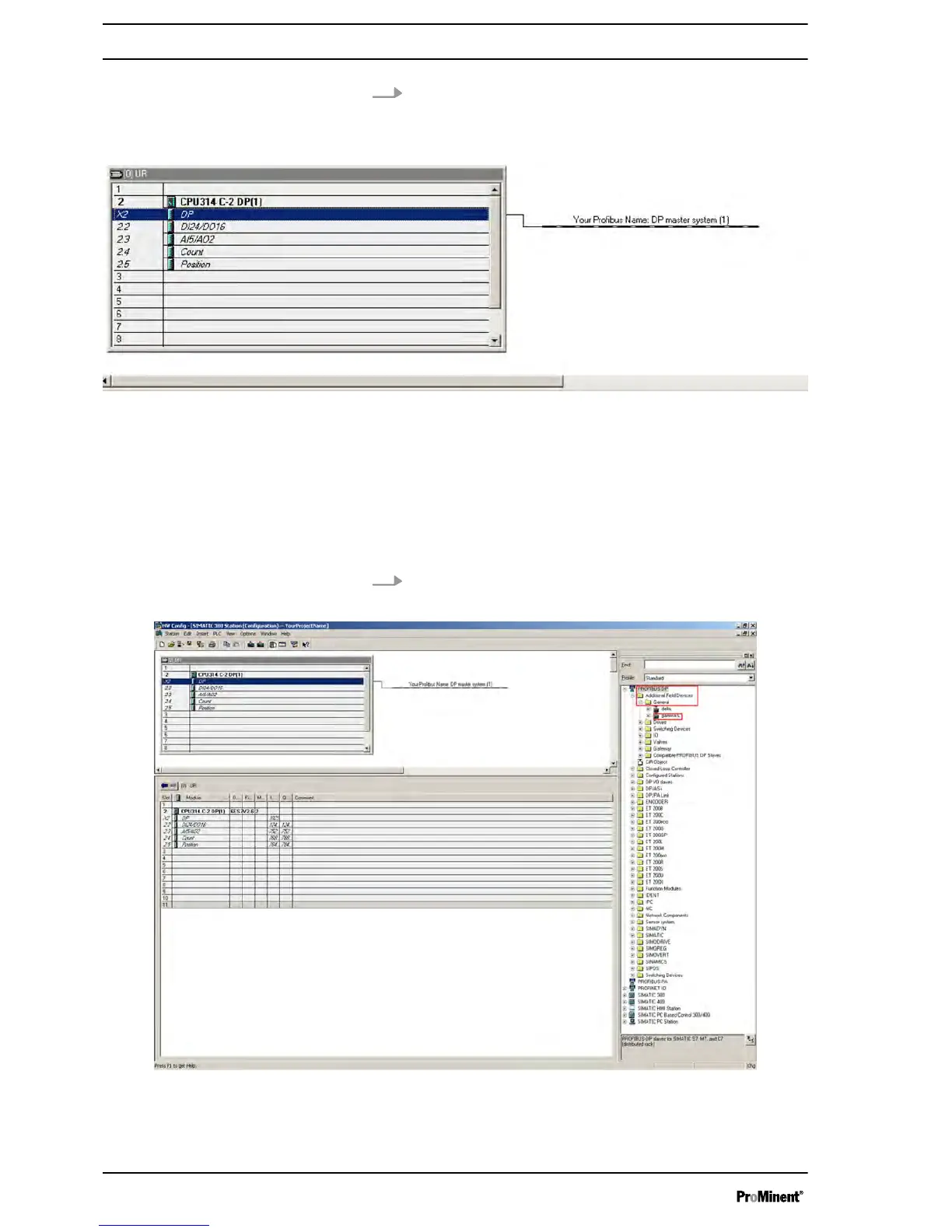

Fig. 9: Graphic presentation: Connection CPU (Master System) with the subnet of the PROFIBUS
®
in the Hardware Con‐
figurator (excerpt)
2.2
Connecting the device to the PROFIBUS
®
Master System
As soon as the PROFIBUS
®
master system has been added to the project
and the PROFIBUS
®
subnet is created, the gamma/ L or Sigma metering
pump can be connected to the PROFIBUS
®
:
1.
Call the catalog via
“Options è Display Catalog” .
ð
To the right in the window you will see:
Fig. 10
Integrating the device and the function block into your own project
