ProMinent gamma/l - Function Description; Feed rate determination

6. Click
[New] .
ð

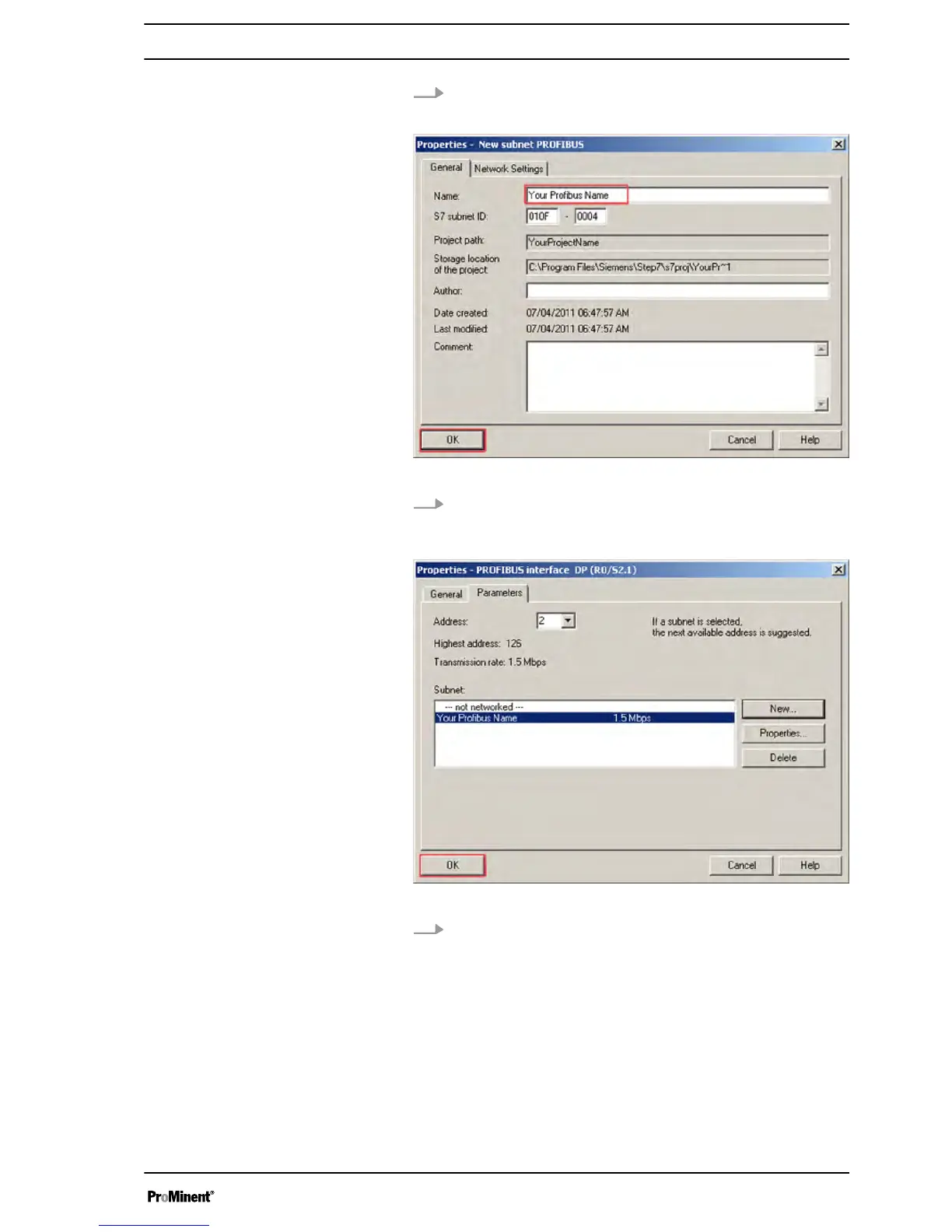

The “New Subnet PROFIBUS” will be displayed:
Fig. 7
7. Under
“Name” enter a name for the subnet of the PROFIBUS and
click [OK] .
ð
The window “PROFIBUS Interface DP” will be displayed again:
Fig. 8
8.
(If necessary via
“Properties” special PROFIBUS
®
parameters can
be adjusted.)
Integrating the device and the function block into your own project
13
