3. Add a Master System for the CPU: For example, for CPU
314C-2DP, right click slot X2 “DP”.
ð
The context menu will open:

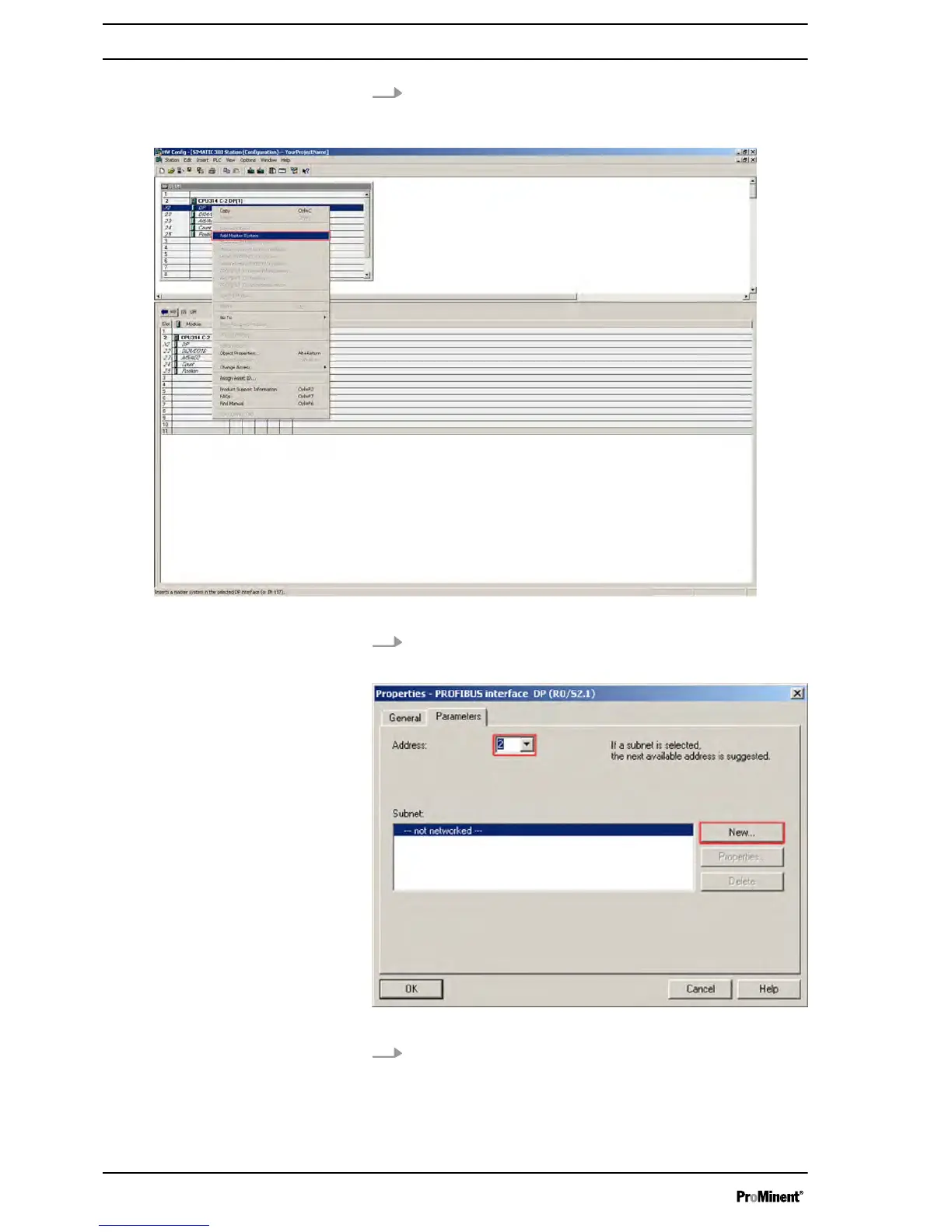

Fig. 5
4. Here select
“Add Master System” .
ð
The window “PROFIBUS Interface DP” will be displayed:
Fig. 6
5.
In the
“Parameters” tab under “Address” enter the PROFIBUS
®
address of the CPU used.
