Use the 5 mm hex wrench to loosen the horizontal clamp 1 (Fig. 14), and then
place the workpiece 2 so that it makes contact with the guide 3. Next, move the
horizontal clamp toward the workpiece (4) and tighten the screws in this position (5).

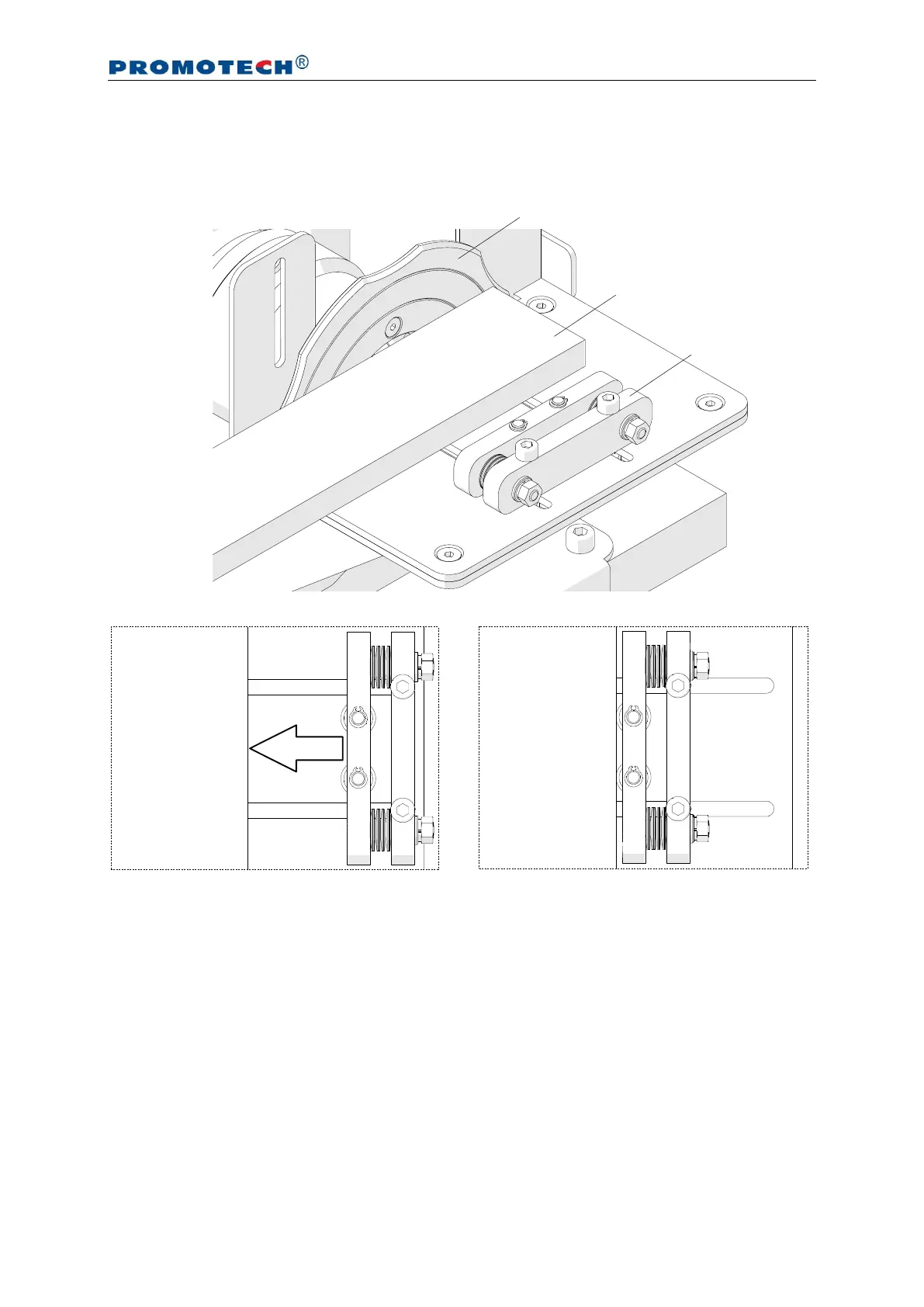

Fig. 14. Adjusting the horizontal clamp
