Install the vertical clamp 1 (Fig. 15) by lightly tightening the levers 2, move the
clamp to the workpiece (3), and then tighten the levers in this position (4). Next,
remove the workpiece, set the required bevel parameters, and then use the 5 mm hex
wrench to tighten the screws 5 to fix the machine.
Start the machine and set the required rotational speed. Then, place the workpiece
on the left and bevel according to the direction 6.

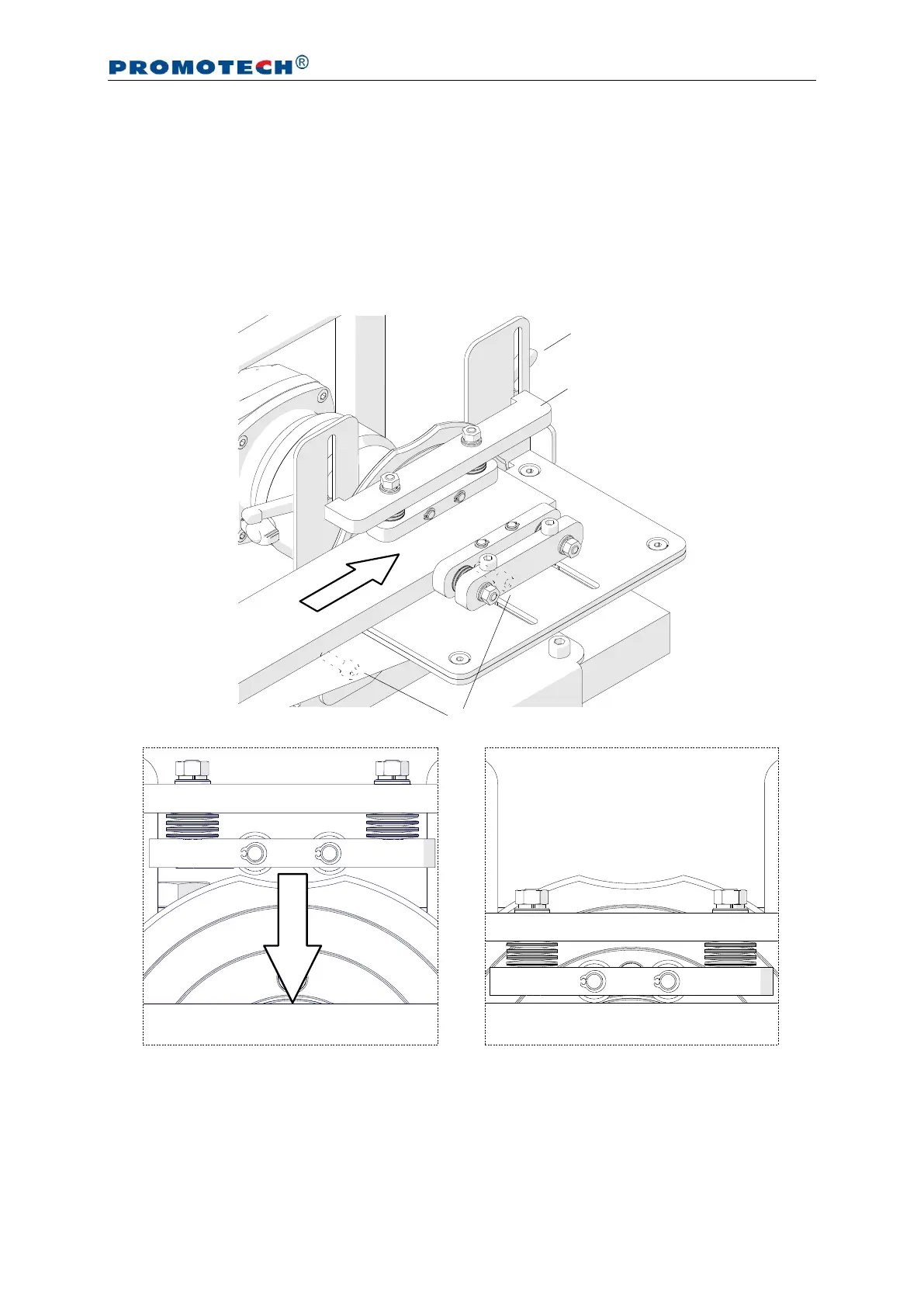

Fig. 15. Adjusting the vertical clamp
