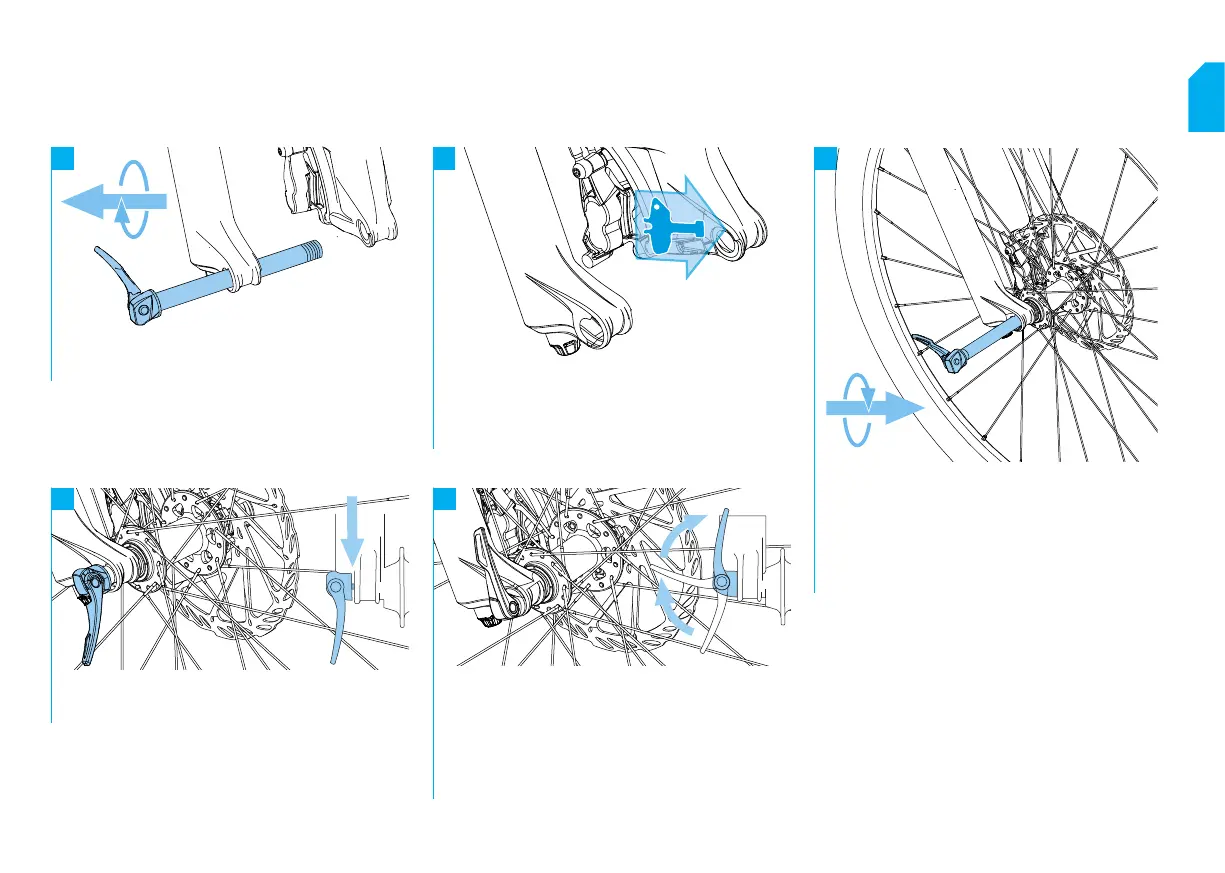

// MOUNTING THE FRONT WHEEL
Remove the thru axle from the fork. 1. tÐĉďŒÐĴìÐĴīĊĮĨďīĴĮÐÆķīðĊæÌÐŒðÆÐĴìĴðĮťĴĴÐÌ
between the brake pads.
2. Store the transport securing device for future transport
of your bike.
1. Put the front wheel into the dropouts of the fork. The
brake rotor must be placed between the brake pads.
2. Open the lever of the thru axle and slide the axle through
the non-drive side (left in the direction of travel) fork
dropouts and hub of the wheel.
Rotate the lever clockwise until there is only a small gap left
between lever head and dropout.
1. Close the lever of the thru axle.
2. There must be no gap between lever head and dropout.
ĺ Closing the lever should require an increasing amount of hand force until the lever is fully closed.
}ďðĊÆīÐĮÐăÐŒÐīĴÐĊĮðďĊșďĨÐĊĴìÐăÐŒÐīĊÌĴķīĊðĴÆăďÆāœðĮÐȘăďĮÐĴìÐăÐŒÐīĴďīÐÆìÐÆāăÐŒÐīĴÐĊĮðďĊȘ
tÐĨÐĴķĊĴðăĴìÐĴÐĊĮðďĊðĮĮķŨÆðÐĊĴșĴìÐĊÆăďĮÐĴìÐăÐŒÐīȘ
#ÐĨÐĊÌðĊæďĊĴìÐåďīāĉĊķåÆĴķīÐīșĴìÐĴìīķŘăÐĉķĮĴÅÐĨķĮìÐÌåīďĉĴìÐīðæìĴďīăÐåĴĴìīďķæìĴìÐÌīďĨďķĴďåĴìÐåďīāȘ
