MARK68AF1001 Rev 2

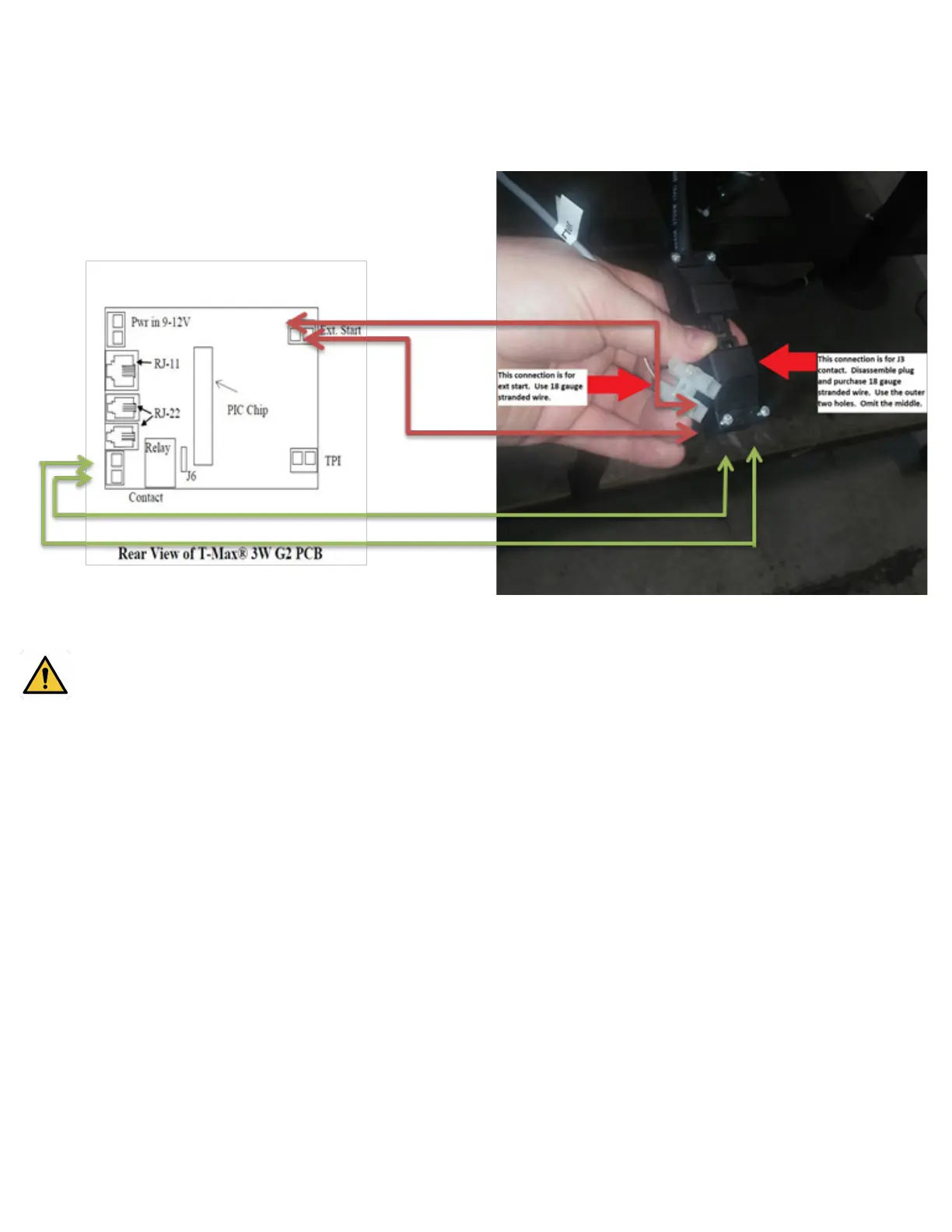

Step 3: Use 18 Gauge Stranded Wire to make the connections between the T-Max and The

Aquafrixio as shown in the picture below.

NotetheGreyCordwithterminalblockthatconnectstotheEXTSTARTisfortheQuickStart

function.ThisisabenetforyourcustomersothattheydonothavetohitstartontheTmaxdisplay

itself. This way they can bypass the delay time and start their session directly on the screen. We

recommend using this function for your customer but it is not required.

IfyouchoosenottousetheQuickStartfunctionyouonlyneedtoconnectthe18gagewiretothe

black cord.

When making the connection to the black “pig tail” cord, you will need to open the small screws and

you will place the 18 gage stranded wire in the two outside ports and connect to the J3 Contact on

the back of the Tmax.

Always make sure that the wires are all securely fastened by tugging on them lightly.
