MARK68AF1001 Rev 2

External Timer T-Max Connection and Quick Start

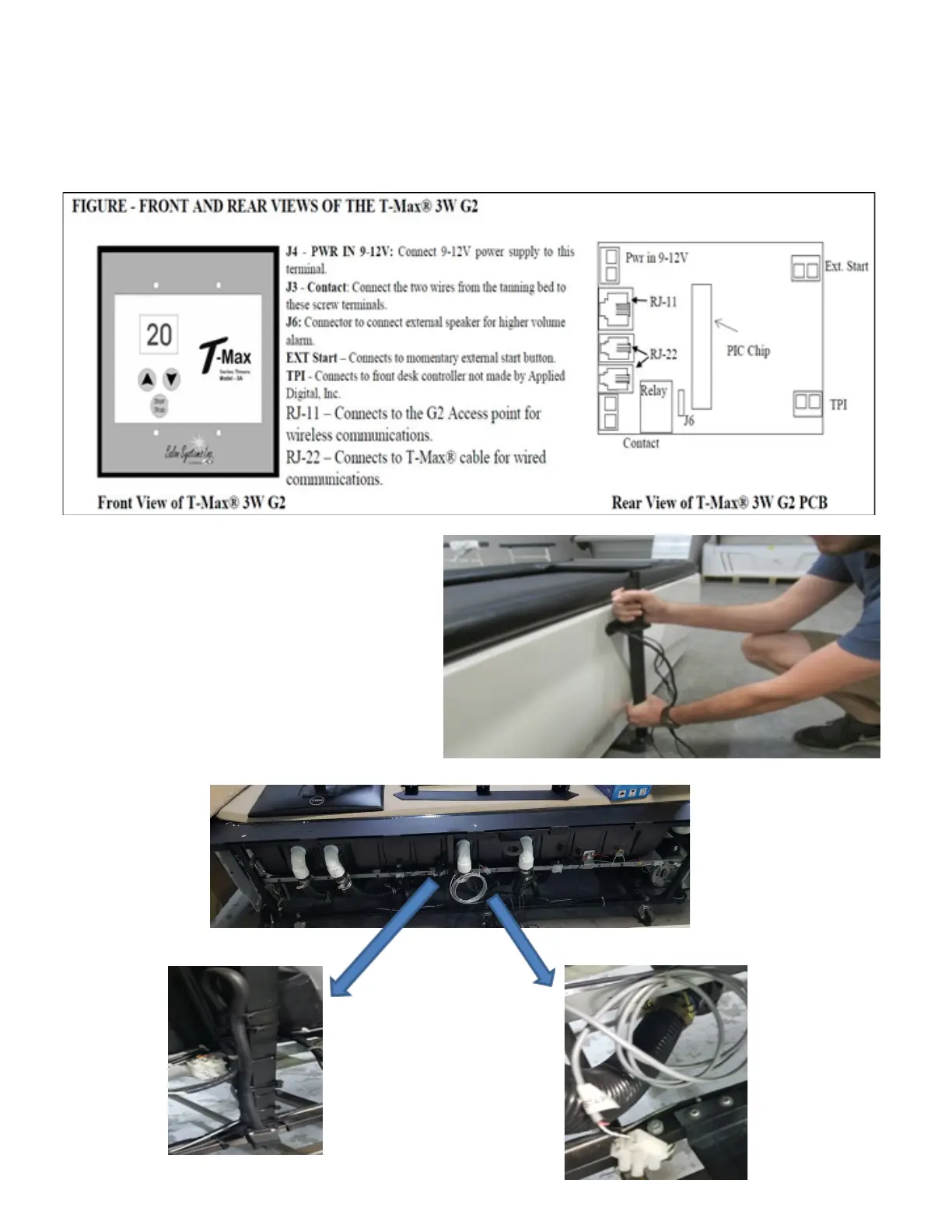

Step1:LookinthebackofyourT-max3WG2thatwillbelocatedwiththeunit,andndThe

Ext. Start and J3- Contact connections on the back of the board. They will be in the outside

corners as shown below.

Step 2: remove the back panel of your

Aquafrixiounit(ScreenSide),youwillnd2

connections for your T-max attached to the

frame, a black and a grey cord, cut the zip

tie and run de cables underneath the skirt/

panel. You will need to remove the screen

and pole as shown in the photo on the right.
