32 OPTIMAX
®

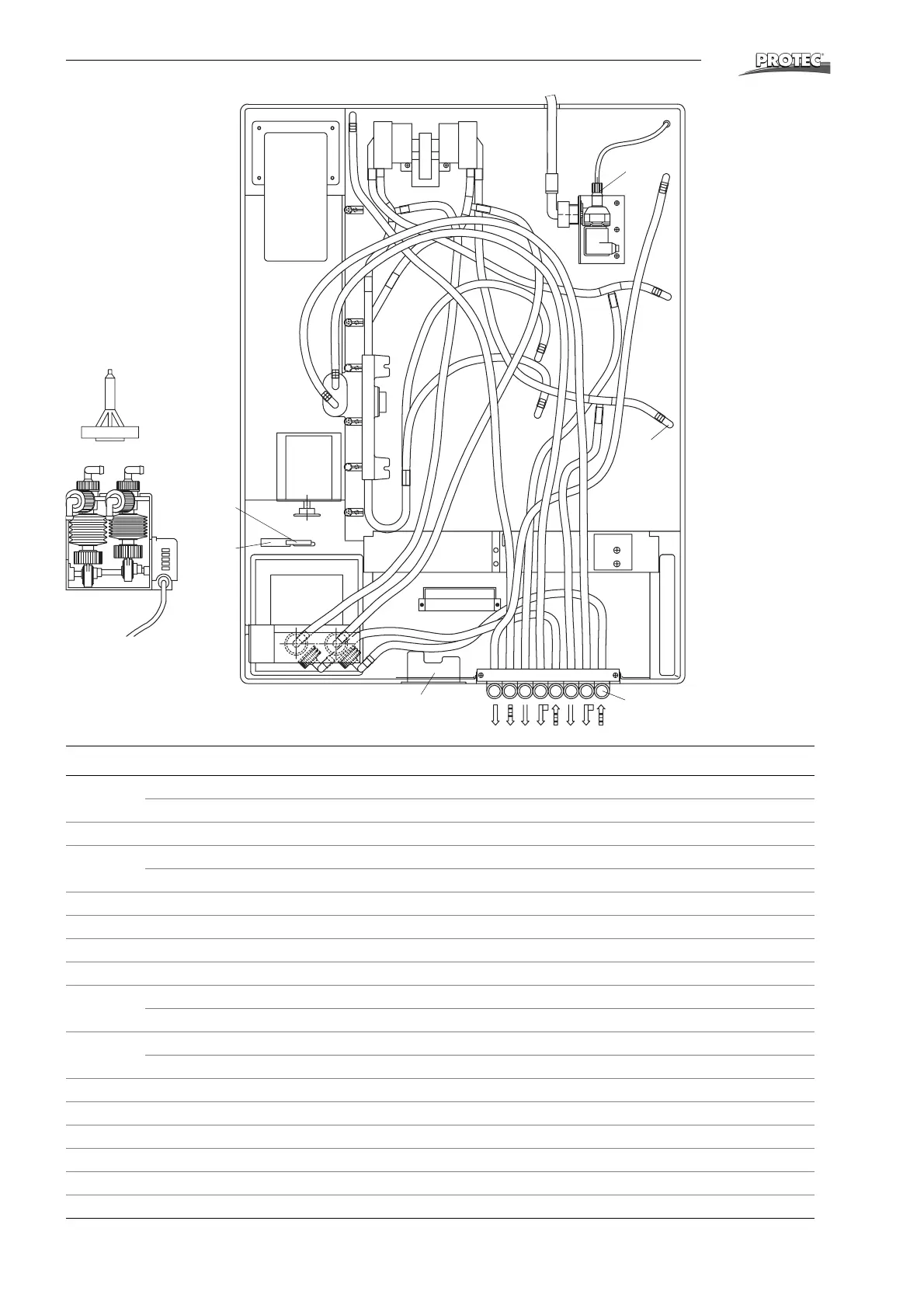

Spare Parts List
®
Pos. Order No. Description
20 0202-1-0008 Replenishment pump 2KBA 220-240 V, 50/60 Hz
0202-6-0008 Replenishment pump 2KBA 115 V, 50/60 Hz
20a 0002-1-0008 Valve insertion f. pos. 20
21 2002-1-0013 Circulation pump 220-240 V, 50/60 Hz
2002-6-0013 Circulation pump 110 V, 50/60 Hz
22 1170-0-1400 Main switch combi 220-240 V UL
23 2010-0-0010 Fuse, slow blow in gold, 10 A / 250 V UL
22+23 2028-0-0036 Main switch 110-120 V UL
24 1170-0-0702 Angle connection (grey)
25 1170-5-1300 Electronic 220-240 V
0170-6-1300 Electronic 110-120 V
26 0170-0-2400 Micro-switch (cover)
0170-4-2400 Micro-switch (cover) UL
27 2007-0-0010 Operator for micro-switch
28 1101-0-0704 Angle fitting
- 0016-0-0002 PU - glue kit
29 2021-0-0001 Screw-in connector
- 1170-0-1250 Wiring harness V2 230 V
- 1170-0-1251 Wiring harness V2 115 V
20a
20
29
21
(53)
(30)
(61)
28
(58)
24
22-23
25
20
26
27
