Protec OPTIMAX - Page 33

OPTIMAX
®
33

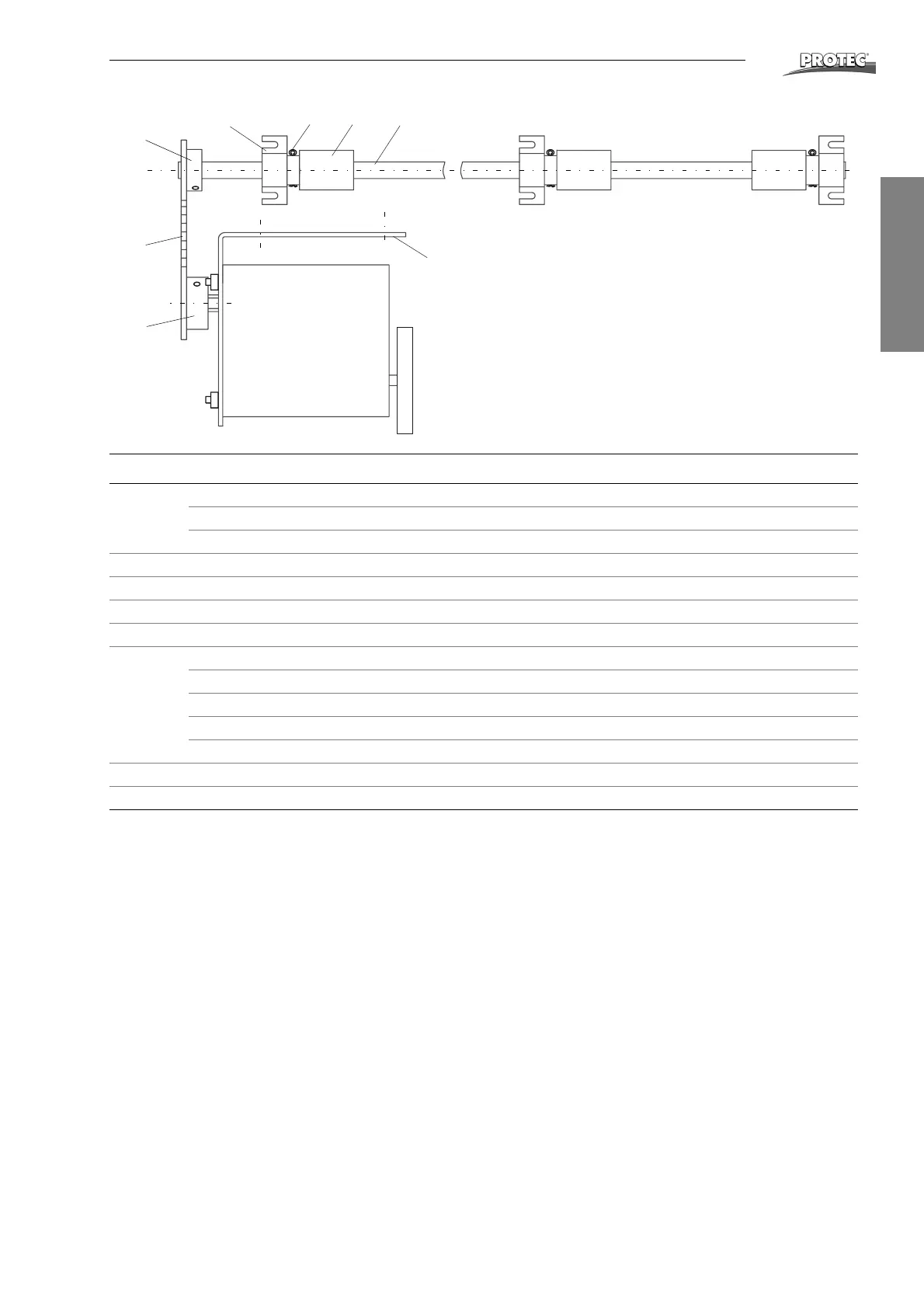

Spare Parts List
English
®
Pos. Order No. Description
30 2001-0-0003 Main drive motor 220-240 V, 50 Hz
2001-2-0003 Main drive motor 220-240 V, 60 Hz
2001-6-0003 Main drive motor 120 V, 50/60 Hz
31 1170-0-1101 Motor bracket
32 1170-0-1501 Drive shaft worm-gear
33 1170-0-1503 Worm-gear
34 1170-0-1502 Bearing block
35 1170-0-1506 Chain wheel t=12
1170-0-1504 Chain wheel t=14
1170-0-1505 Chain wheel t=16
1170-0-1102 Chain wheel t=17
1170-0-1507 Chain wheel t=18
37 2037-0-0002 Chain 6 mm with coupler link
38 3000-9-4013 Cotter pin 2.0x20 mm, inox
35
37
35
34 38 33 32
30
31
