34 OPTIMAX
®

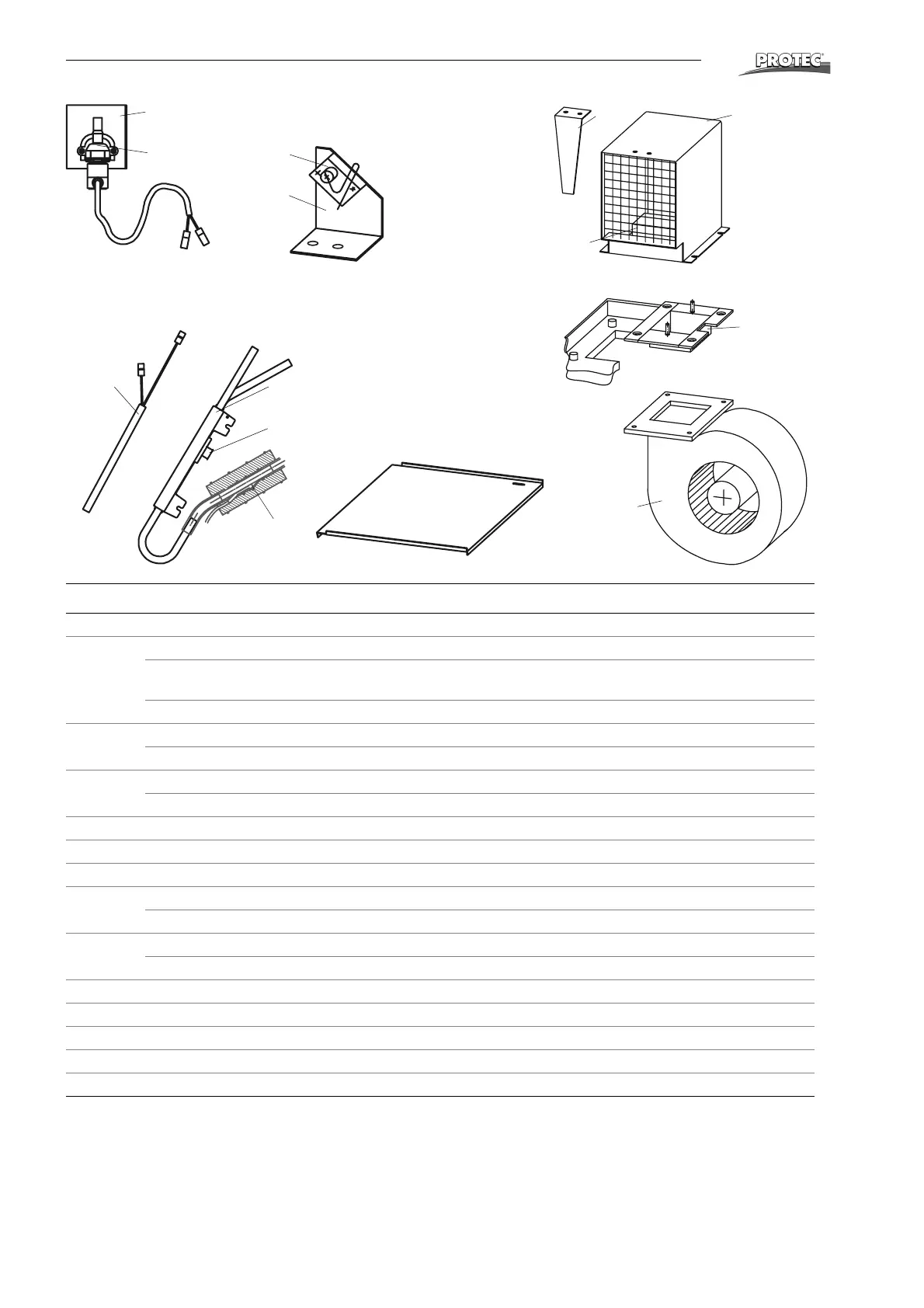

Spare Parts List
®
Pos. Order No. Description
50 1170-0-1301 Air channel
51 2003-5-0006 Heating elment 230 V, 1100 W
2003-6-0007 Heating element 110 V, 900 W
standard model
2003-5-0008 Heating element 230 V, 1000 W
53 2008-5-0007 Dryer fan 220-240 V, 50/60 Hz
2008-6-0007 Dryer fan 115 V, 50/60 Hz
54 0170-5-1900 Solenoid valve 220-240 V, 50/60 Hz
0170-6-1900 Solenoid valve 115 V, 50/60 Hz
55 1101-0-0121 Securing bracket
56 0170-0-0800 Micro-rotary-switch for film-detection with operator
58 1170-0-0804 Bracket for micro-rotary-switch
59 1170-0-0105 Film feed tray
1172-0-0105 Film feed tray graphic arts
60 2003-5-0002 Heating element 230 V, 800 W
2003-6-0002 Heating element 120 V, 400 W
61 1130-0-2101 Heat exchanger
62 2005-0-0005 Temperature safety switch mounted on heat exchanger
63 0190-0-2200 Temperature sensor
64 1170-0-1303 Plate for air channel
65 1170-0-1302 Channel dryer heating
55
54
56
58
60
61
62
63
59
53
65
64
50
51
