Installation
8 OPTIMAX
®
®

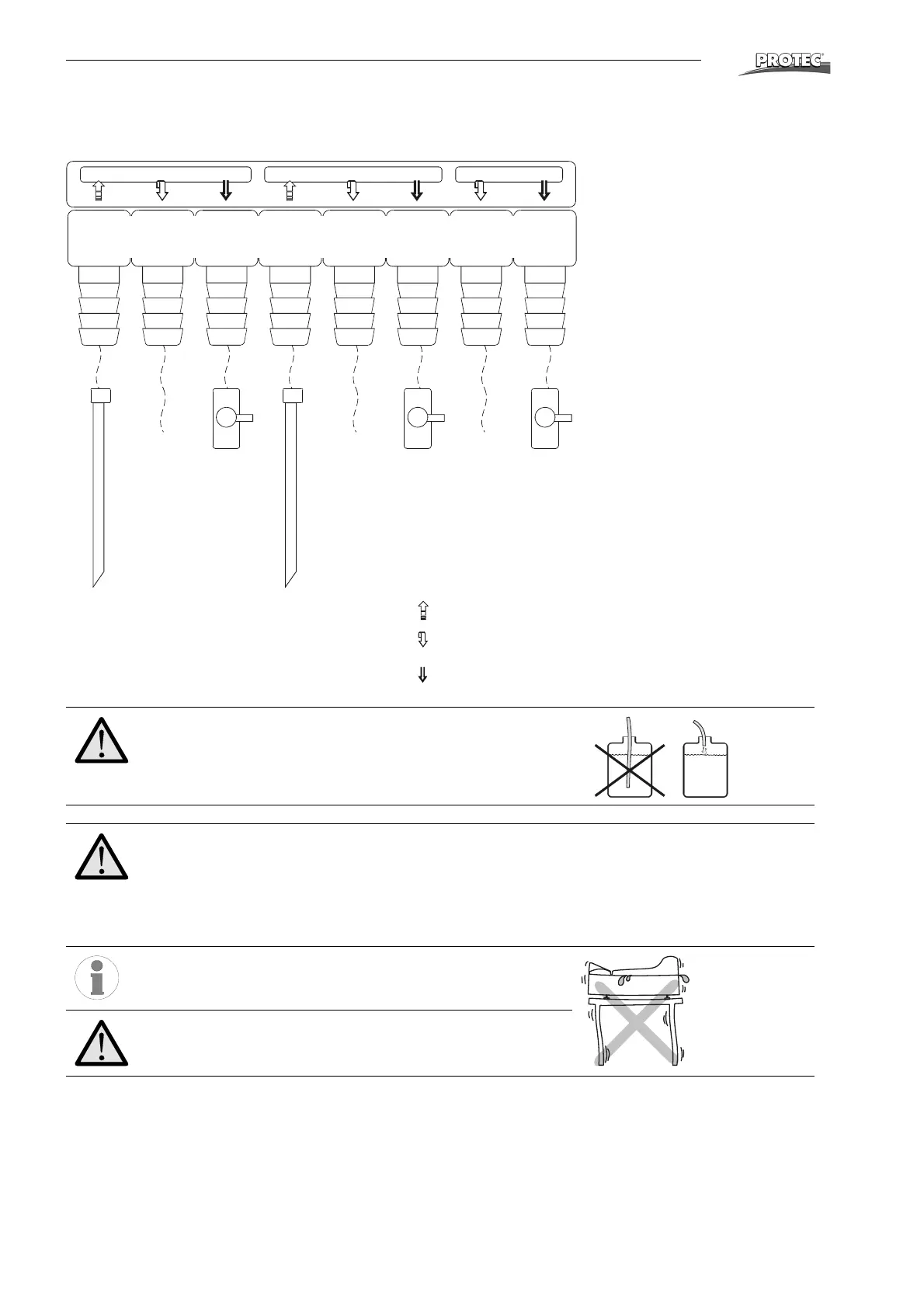

Hose connections
Danger of Overflow!
Use the included cable ties (accessory bag) to secure the hos-
es. Fix all hose ends which guide into syphon or collecting
container, so that they do not drop into the liquid.
Very important:
The hose piping should be straight (without the hoses going
up and down) with a constant fall. The hoses should be as
short as possible and without bends and kinks. This is very
important for the water overflow hose. Bad piping work will
cause the machine to overflow!
Inform yourself of the local water board regulations regarding
drainage. These regulations may differ from information in
this manual, but they should be complied with.
If the machine is installed table-top, ensure that the table is
stable enough and does not wobble.
DEV FIX
HO
2
Pay attention to the correct color connections:
Developer: red
Fixer: blue
Water: clear
Developer (red) Fixer (blue) Water (clear)
Replenishment tanks
Outlet
Overflow
Overflow
Outlet
Outlet
Overflow
Replenishment tanks
Replenishment
Overflow
Outlet
Overflow
