8

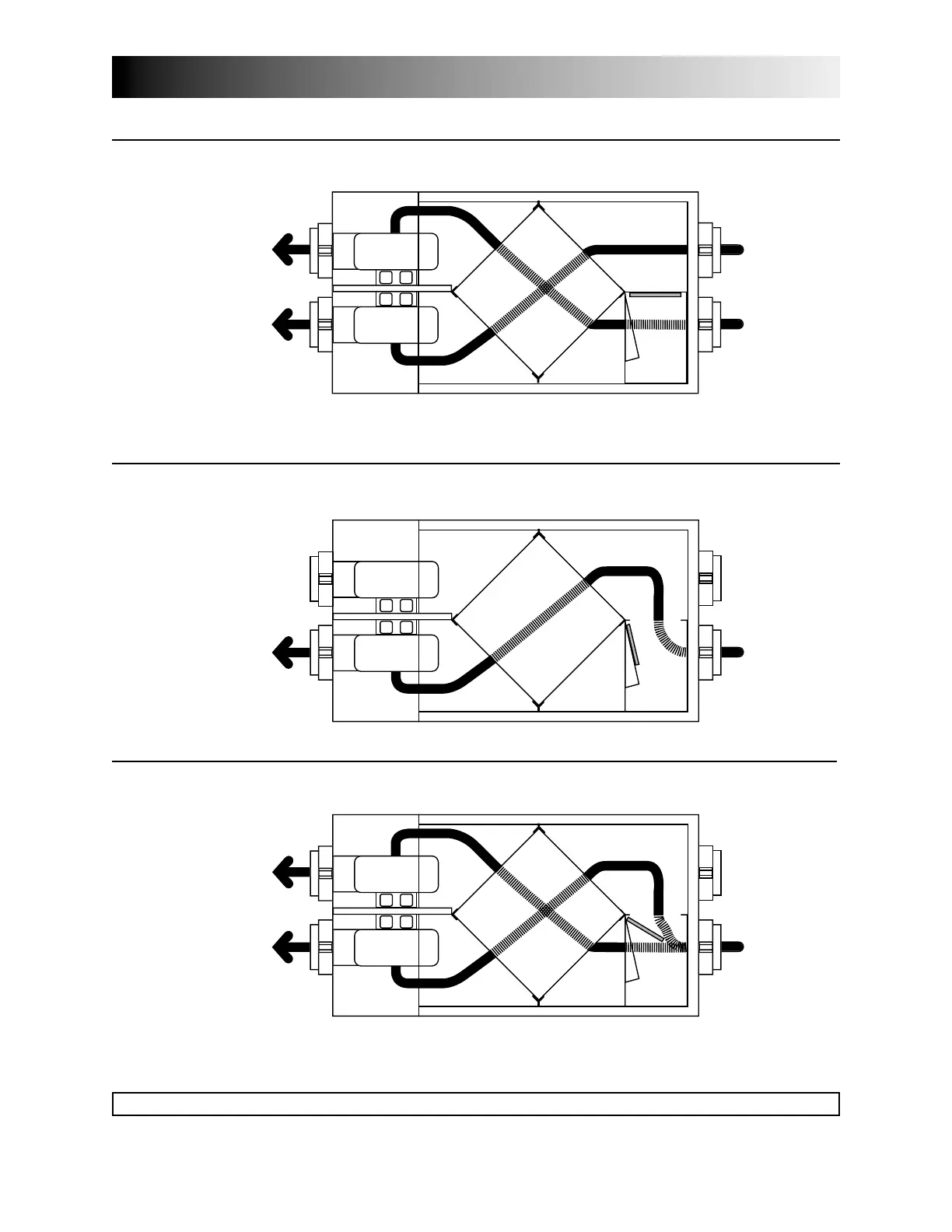

4.1 A IR D ISTRIBUTION (N ORMAL O PERATION )
4.2 A IR D ISTRIBUTION (D EFROST M ODE )
4.0 Technical Data
FRESH AIR
TO BUILDING
For defrost cycles table, refer to Section 9.0, Wiring Diagram.
Applicable to all model numbers
FRESH AIR
TO BUILDING
STALE AIR
FROM BUILDING
STALE AIR
TO OUTSIDE
FRESH AIR
FROM OUTSIDE
Defrost Mode 1
Applicable to model numbers:
- 84-HRV100
- 84-HRV200
STALE AIR
FROM BUILDING
VF0012
FRESH AIR
TO BUILDING
STALE AIR
TO OUTSIDE
Defrost Mode 2
Applicable to model numbers:
- 84-ERV100
- 84-ERV200
STALE AIR
FROM BUILDING
