Proteco MATRIX User Manual

10
MATRIX - rev. 1.1_09_2020

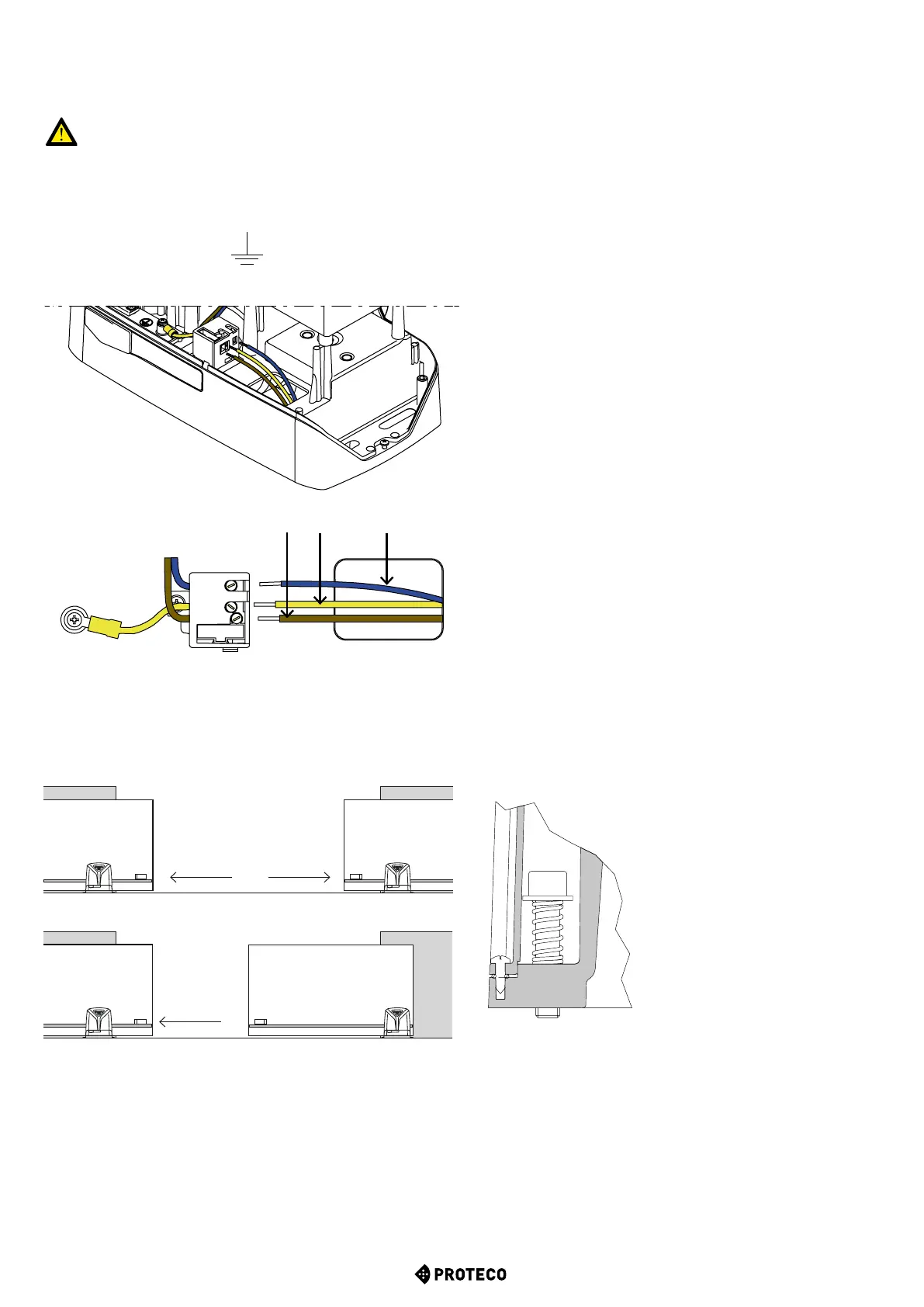

Picture 26: Wirings
3.10 Wirings
The power connection must be performed by experienced
qualiedpersonnel,infullcompliancewith laws,rules
and regulations.
Insert the electrical cables into the supplied cable gland, breaking
through the membranes and place the cable gland in the appropriate
seat on the base of the gearmotor.
Connect all
power and grounding cables to the appropriate terminal
block located near the symbol .
Picture 27: Wirings terminal block
LIVE EARTH NEUTRAL
3.11 MasterandSlaveconguration
Picture 28: TWIN mode - full opening
Picture 29: TWIN mode - pedestrian/partial opening
3.12 General test
Before starting the general test, be sure programming has been
carried out (Refer to chapter "3.5 Start Up" of the control unit
manual).
Once mechanical installation and electrical connections have
been completed, power the automation and proceed with a
careful test of the gearmotor, accessories and safety devices
connected.
Important! Programming procedure must be repeated
every time anything concerning the gate has been changed
(speed, weight, rail, wheels ...)
Most importantly, check that opening and closing limit switches
work correctly, stopping the gearmotor before it reaches
the mechanical stops.
After powering the gearmotor, manually move the leaf to
opening and closing position and check that LO (Opening limit
switch) and LC (Closing limit switch) are displayed on the
control unit before reaching the mechanical stop.
Make sure both messages are properly displayed.
Deliver the end user chapter of this manual to the customer
and instruct him how the automation works and how to use it.
3.13 Cabinet installation
Once both mechanical and electrical installations are
completed, proceed to fit the cabinet.
Lean the cabinet onto the alluminium base, just put a little
pressure on the upper side.
Use the two screws 4,2x13 to fix the cabinet, as show Pictures
30 and 31.
Picture 30: Matrix section view
PARTIAL/PEDESTRIAN start command is performed only by
MASTER motor.
The TWIN function allows to synchronize two mirror sliding gates
as shows Picture 28.
For more details refer to chapter "TWIN mode"
.
