Proteco MATRIX User Manual

4
MATRIX - rev. 1.1_09_2020
1 2
3
4
5
6 7
227 mm361 mm
360 mm

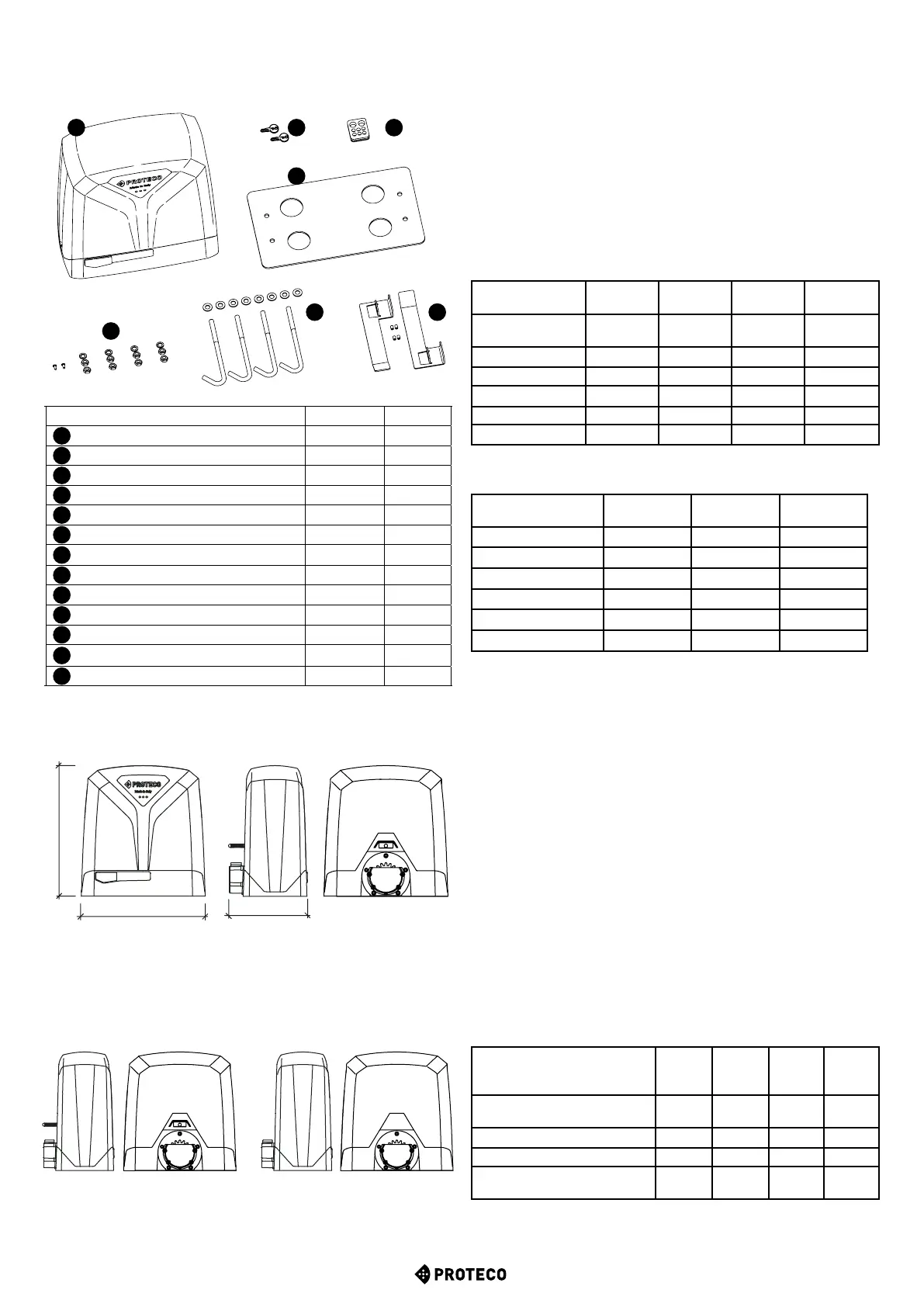

2.3 Content
DESCRIZIONE CODICE QUANTITÀ
1
Gearmotor
1
2
Release key
FLC2722 2
3
Ground plate
MPIS06 1
4
Wires membrane
MPC06 1
5
Anchor screws Grower M10
MRO10EZ 4
5
Washer Ø 10
8
5
4,2x13 self-threading screws
MVI4213DI 2
6
Anchor screws i M10
MTRF10185Z 8
6
Bolt M10 + Washer M10
MDAM10Z 4
6
Washer M10
MRO10Z 8
7
Limit switch cam LH
MSLF01S 1
7
Limit switch cam RH
MSLF01D 1
7
Dowel M6x10
MGR0610Z 4
2.4 Dimensions
Matrix 2500/
Matrix BLDC
Matrix 1800 Matrix High
Speed
Gate weight Duty cycle rate Duty cycle rate Duty cycle rate
600 Kg 100 100 100
From 600 to 1000 80 70 70
From 1000 to 1500 70 50 50
From 1500 to 1800 50 30 30
From 1800 to 2500 40 - -
Matrix 2500 Matrix 1800 Matrix BLDC Matrix High
Speed
Gate length (m) Max. Cycles/
Hour
Max. Cycles/
Hour
Max. Cycles/
Hour
Max. Cycles/
Hour
Up to 6
28 28 40 58
From 6 to 10
14 14 28 40
From 10 to 12
12 12 22 32
From 12 to15 8 - 15 20
From 15 to18 - - 10 -
2.6 Duty cycles
The calculation of cycles refers to a gate of standard length, installed
according to the standards in force, free from mechanical and/or
accidental friction, with an outside temperature of 20 ° C, as per EN
60335-2-103 regulations.
The number of working cycles depends very much on the length
and weight of the gate, as well as the Matrix model choosen for the
installation.
Table 1: Gate Length
Table 2: Reduction of duty cycle rate according to gate weight
Example:
Gate length 10 m, gate weight 1500Kg, Matrix 2500
14 x 0,7 (70%) = 9,8
Approximately 10 cycles per hour
In addition, there may be other factors that can affect the shelf life
of the product.
Factors may vary depending on the environment in which the automation
is installed.
2.7 Life line
The life of the gearmotor may be affected by multiple waste factors.
The life expectation can be calculated using the criteria outlined in
the below table.
In order to get the waste rate add together all values that comply
with the installation scenario and according accessories.
ATTENTION:
If the waste rate obtained is beyond 10, move to a superior
versioninordertofullltheexpectedperformances.
Matrix
2500
Matrix
1800
Matrix
BLDC
Matrix
High
Speed
Normal operation frequently cut
due to obstacle
1 1 1 1,5
Seaside areas 1 1 1 1
Sandy and/or dusty areas 0,5 0,5 0,5 0,5
Outside temperatures often beyond
40° or below 0°
0,5 0,5 0,5 0,5
2.5 Limit switches
Picture 1: Mechanical limit switch Picture 2: Magnetic limit switch
