Introduction
These instructions are intended for those who want to interconnect their Ray 6 – 24 K
electric boiler with the B 120 S hot water tank.
To functionally interconnect these two devices, you will need the following three
interconnection kits:
Kit a – electric interconnection kit, Order No. SPT-ELKTUV: contains an interconnecting
cable harness (2), a control board for 3-way valve (1), a distance ring (8) and instructions
for interconnecting Ray electric boiler with B 120 S hot water tank.
Kit b – thermostat, Order No. 0020018051: contains a tank thermostat
Kit c – hydraulic interconnection kit Order No. 0020015570: contains a 3-way valve
actuator (6), a 3-way valve actuator cable with connectors (5), mechanical part of the
3-way valve (3), actuator safety clip (7), connector safety shield (10), return pipe distributor
(4), temperature sensor and sensor clip (which in this case will not be used), suite
interconnection instructions (do not proceed according to the enclosed instructions).

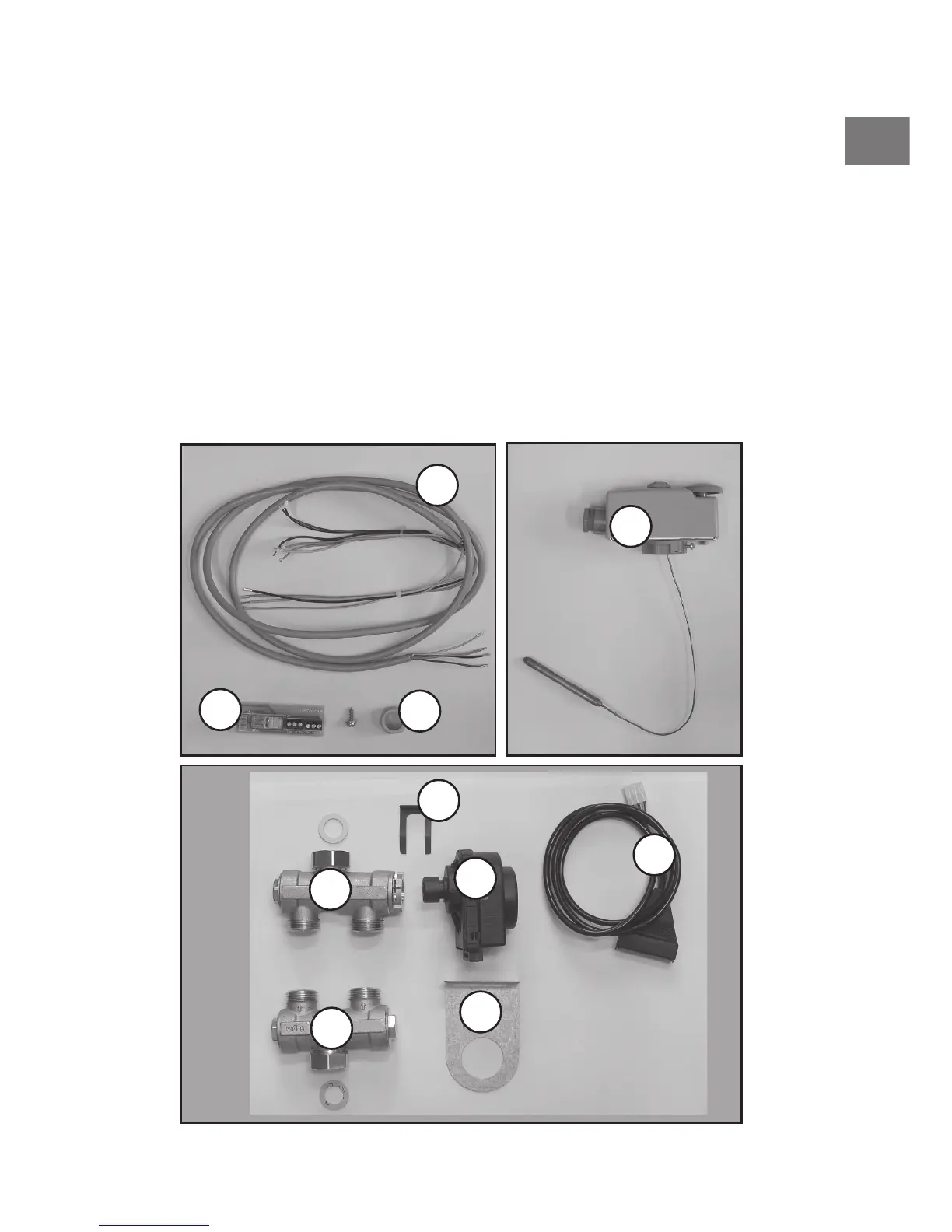

fig. 1
kit c
kit b
9
kit a
1
2
8
3
4
5
6
7
10
