When prompted, enter 64000 for the password and click the “OK” button:
3

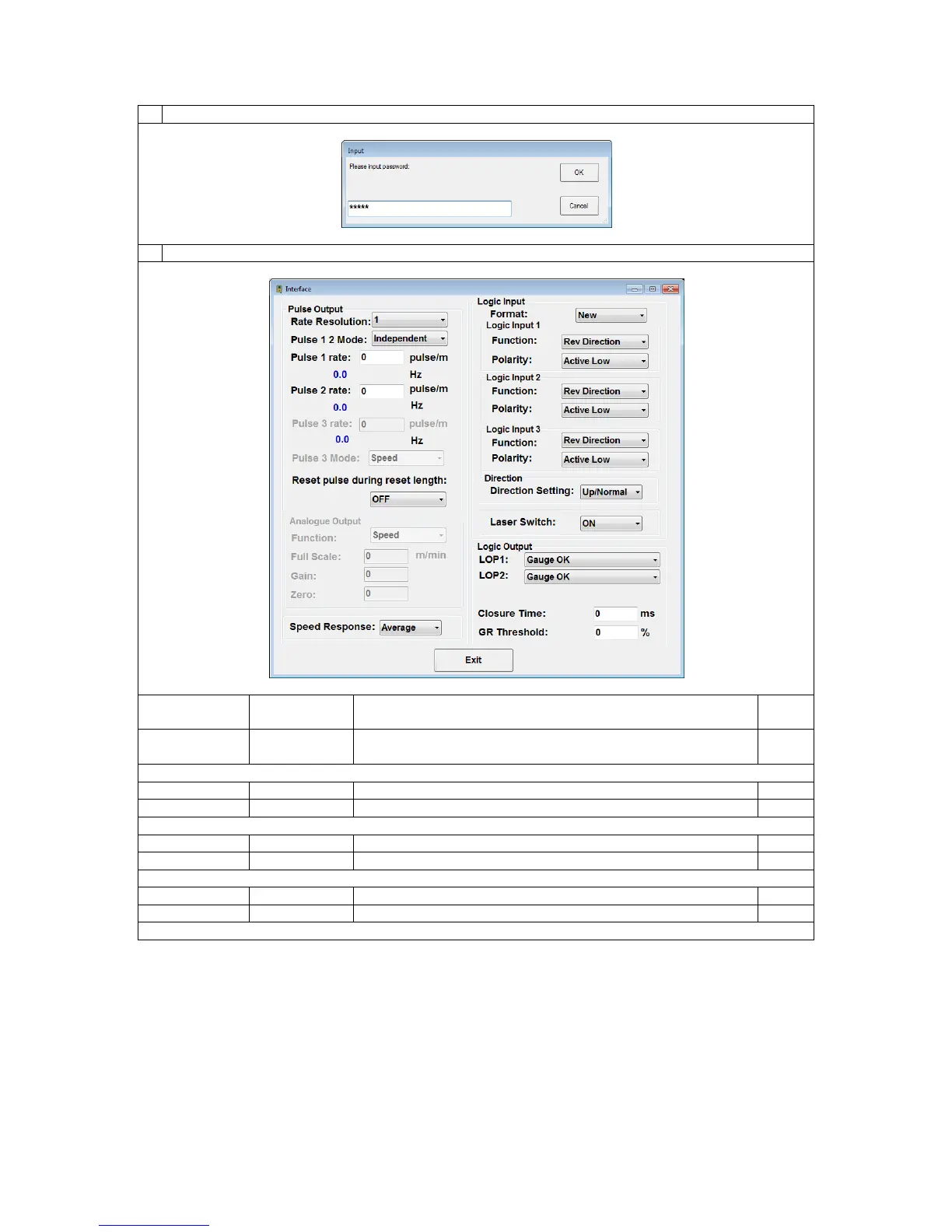

Configure the logic input interfaces as follows and then click the “Exit” button:
Label
Value
Description
Input
DW
Format
New
12.15
Logic Input 1
Function
Length Hold
12
Polarity
Active Low
12
Logic Input 2
Function
Length Hold
12
Polarity
Active Low
12
Logic Input 3
Function
Reset
12
Polarity
Active Low
12
