Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

UDP Protocol

The gauge may be configured to continuously send data by UDP-protocol (at a user-configured rate)

to a server on the same network.

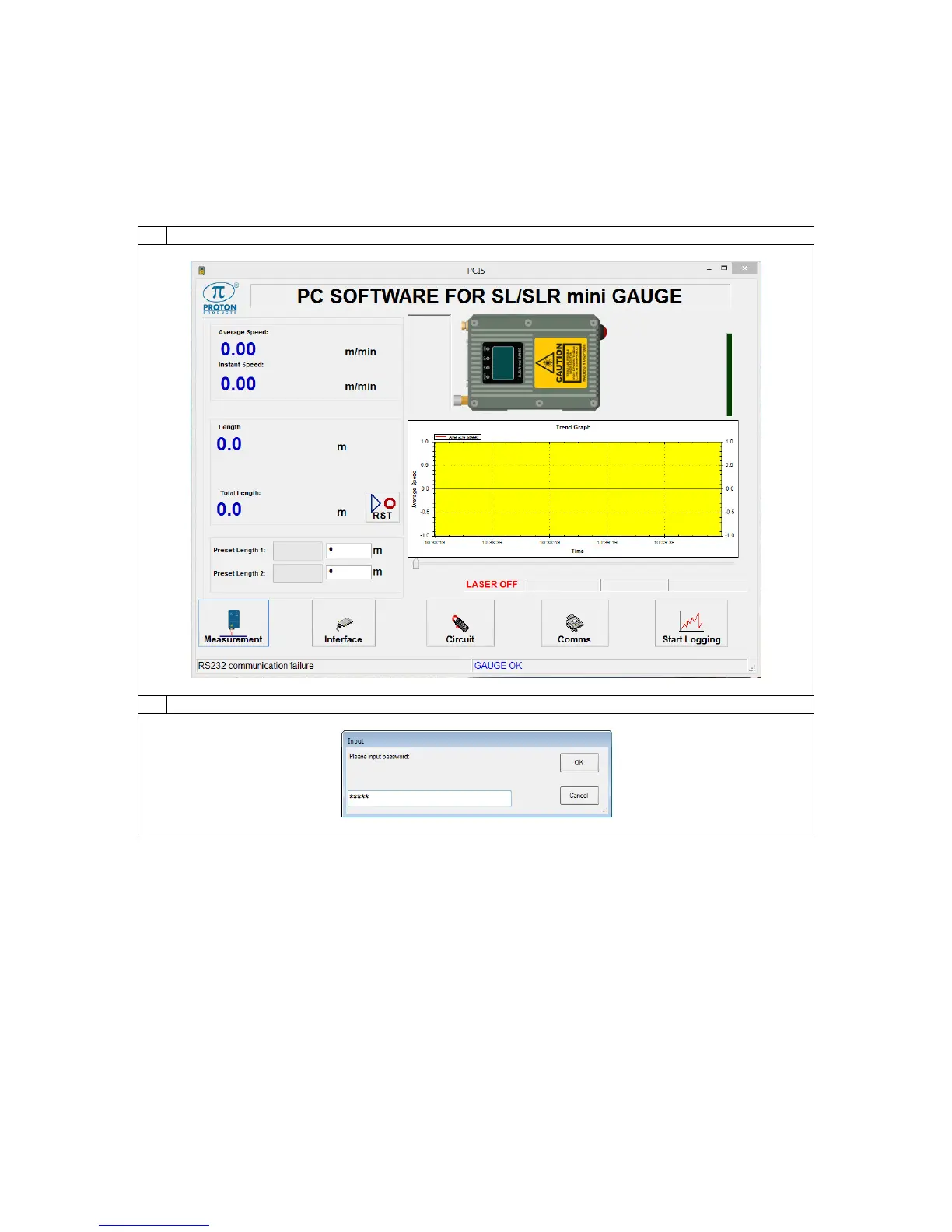

Configuration via the PCiS_SLmini software:

Click the “Comms” button on the main page:

When prompted, enter 65000 for the password and click the “OK” button:
