Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

Object stabilisation

For accurate speed and length measurements, the distance between the measured object and the

gauge must be kept constant; the measured object must be guided to prevent flutter:

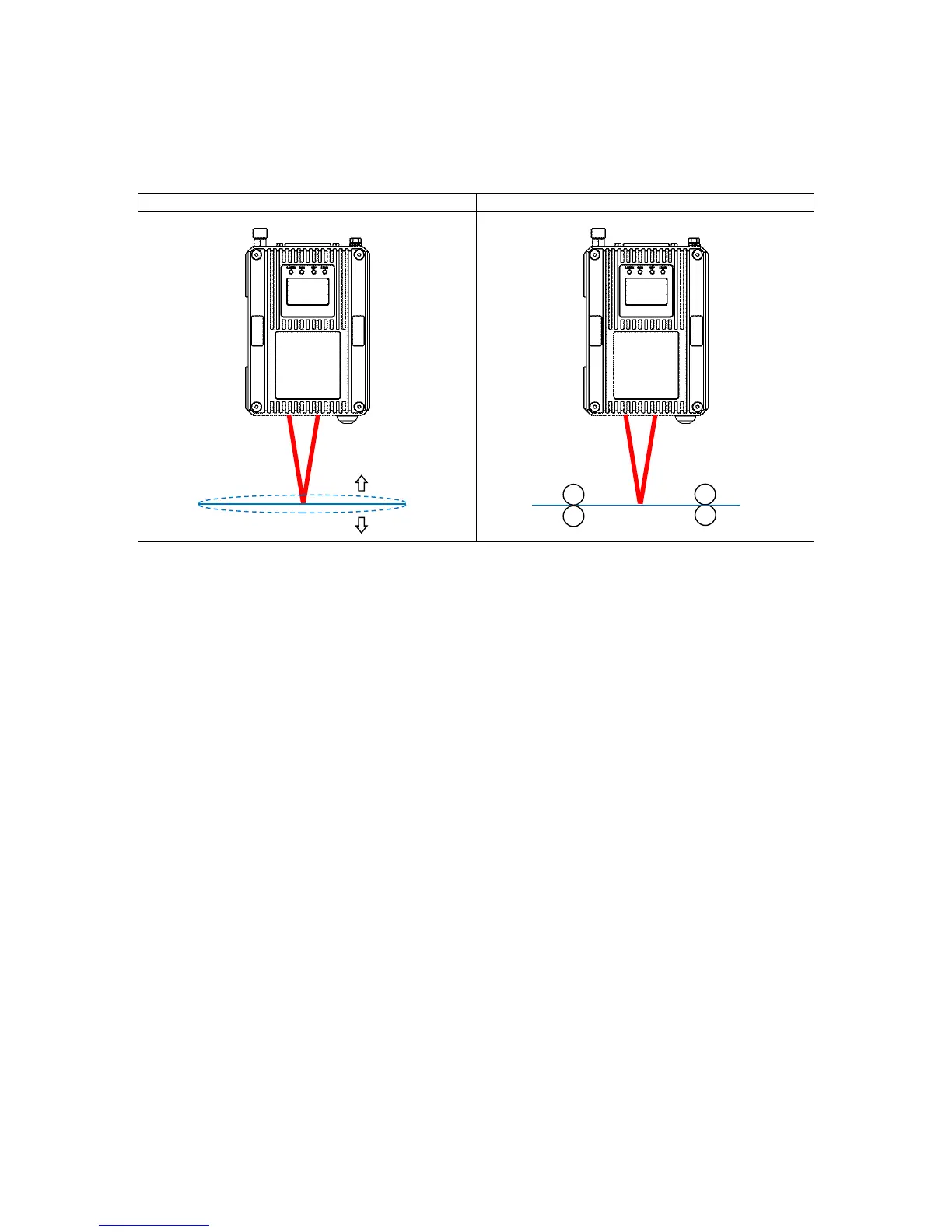

Incorrect

Correct

The end-user must provide suitable mechanisms for guiding and stabilising the motion of the

measured object.
