Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

MEASUREMENT CONFIGURATION

Configuration via the PCiS_SLmini software:

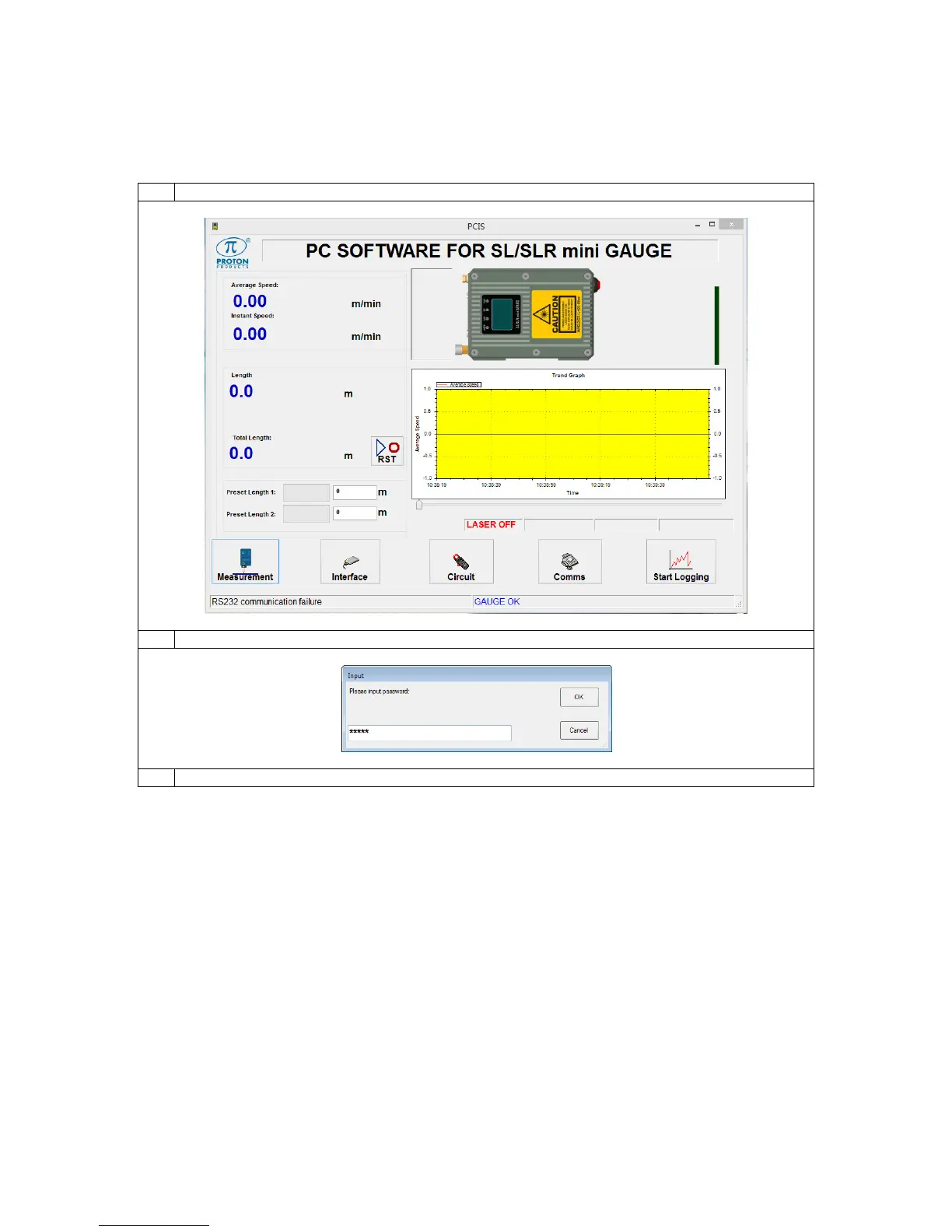

Click the “Measurement” button on the main page:

When prompted, enter 6γ000 for the password and click the “OK” button:

Configure the gauge as required and click the “Exit” button when complete:
