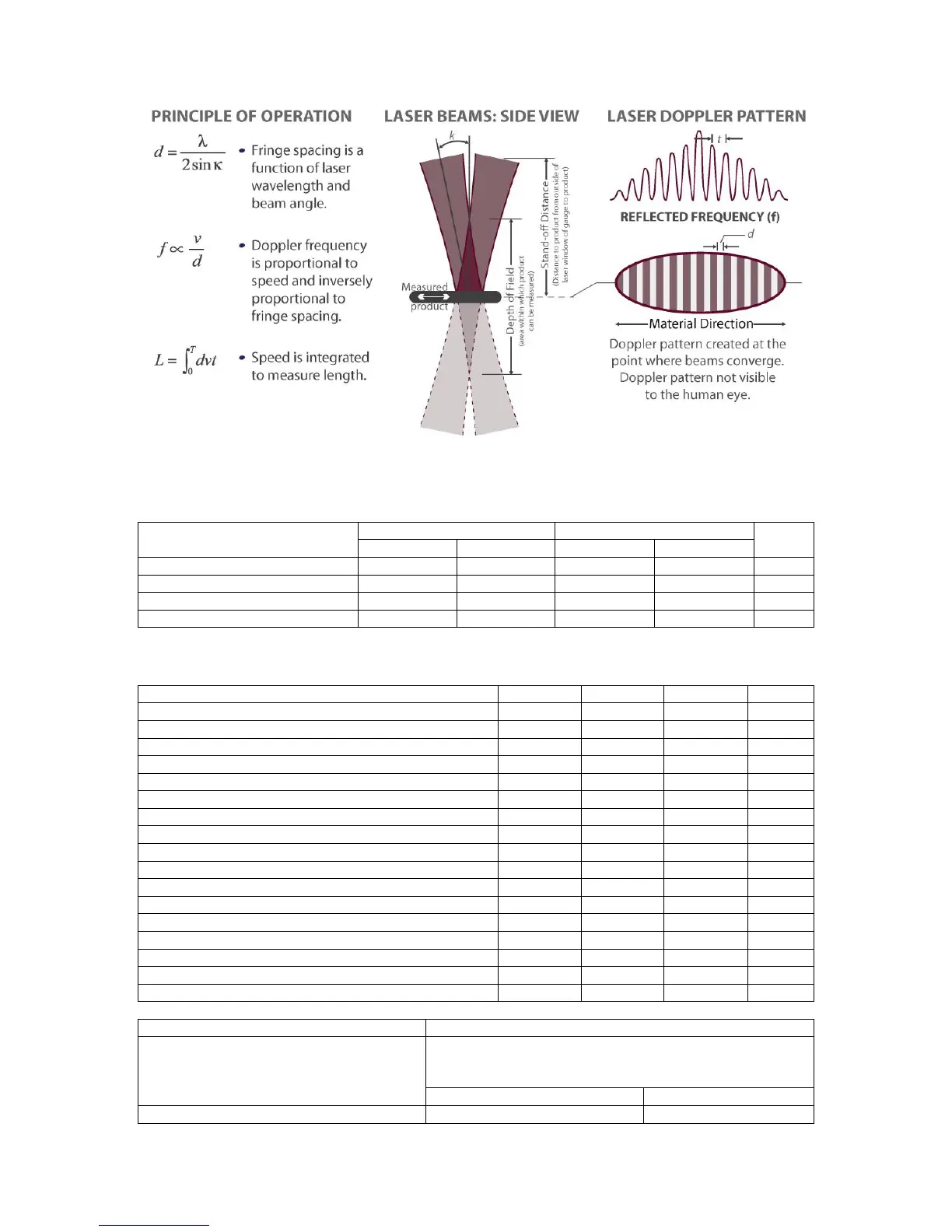

SPECIFICATIONS
MODEL-SPECIFIC SPECIFICATIONS
Specification
Unidirectional – SL mini
Bidirectional – SLR mini
Units
1220
3060
1220
3060
Minimum speed
0.1
0.25
0
0
m/min
Maximum speed
2000
5000
±2000
±5000
m/min
Nominal stand-off distance
120
300
120
300
mm
Depth of field
20
60
20
60
mm
COMMON SPECIFICATIONS
Specification
Minimum
Typical
Maximum
Units
Accuracy
-0.05
0.05
%
Repeatability
-0.02
0.02
%
Acceleration
1000
m/s
2
Measurement update time
20
µ s
Laser beam diameter
3
mm
Laser classification
3B
-
Operating temperature
+5
+40
° C
Environmental protection
IP67
-
Power supply voltage
15
24
28
VDC
Power consumption
15
W
Length
140
mm
Width
105
mm
Height
50
mm
Measurement display
Integrated backlit LCD
Pulse outputs
2× RS-422 compliant differential pair outputs with
maximum pulse rate < 2 MHz (cable length dependent),
end-user configurable as:
2× independent pulse outputs
1× quadrature output
Laser safety
Laser enable input
Open shutter input
