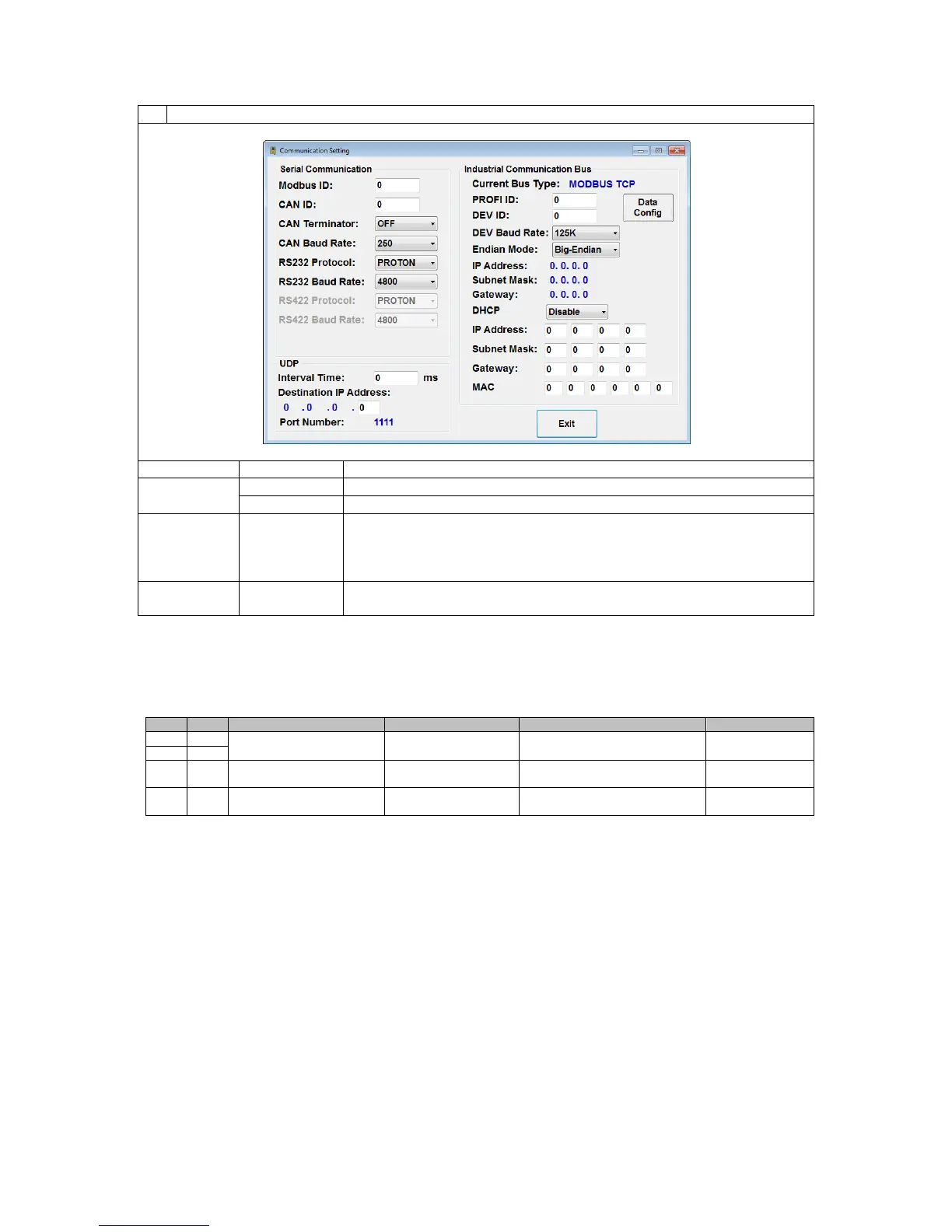

Configure the Ethernet interface as required and click the “Exit” button when complete:
Label
Value
Description
Interval Time
0
Disable UDP data output.
1 ~ 5000 ms
Output UDP data at this interval time.
Destination
IP Address
x.x.x.x
Destination server IP address to which UDP data is sent (only the final
octet is configurable, the first 3 octets are the same as the gauge IP
Address, hence the destination server must be on the same network
as the gauge).
Port Number
1111
Destination server port to which UDP data is sent (fixed at 1111, not
end-user configurable).
Configuration via input parameters:
The UDP data output function may be configured by writing to the following input parameters:
Input parameters
DW
Bit
Comment
Unit
Range/Remark
Default
30
IP address
x.x.x.x
C0A80001
(192.168.0.1)
31
41
UDP data output interval
time
1=1ms
1~5000
0=Disable UDP output
0
48
UDP destination IP
address (last octet only)
Note: the UDP destination port
number is fixed at 1111
2
