5

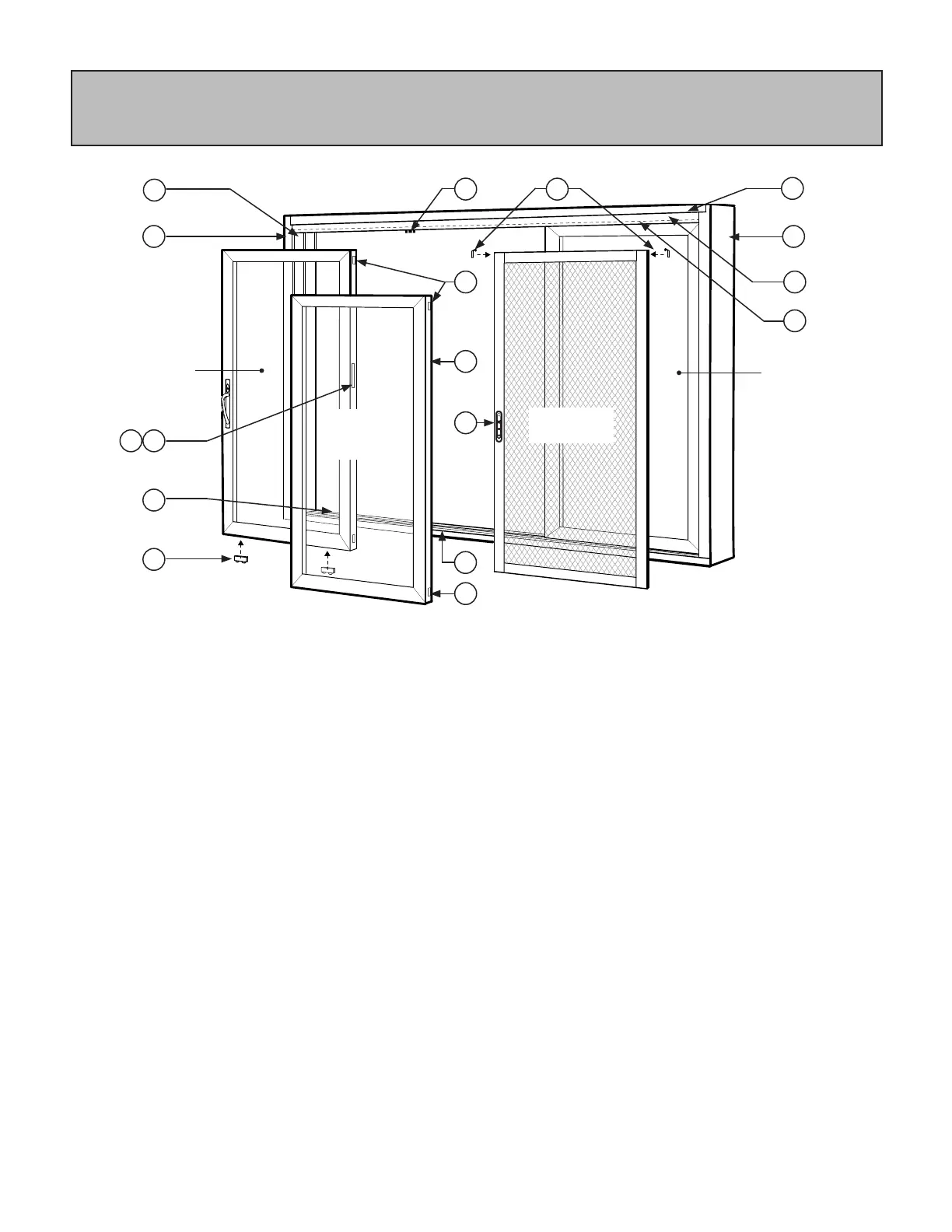

RE-ORDER REFERENCE - PRODUCT PART # IDENTIFICATION
NOTE: Parts listed may be a subassembly or part of a subassembly.
SCREEN PARTS:
O. LH Common Patio Screen Handle - S-DH-071
(RH Common Patio Screen Handle - S-DH-068)
P. LH Wheel Bracket Assembly - S-HG-367P-00 and
RH Wheel Bracket Assembly - S-HG-366P-00
(See page 19 for Detail) (**See note this page)
SASH PARTS - (2) Fixed, (1) End Active:
I. Tandem Wheel Patio Door - S-HG-355-00
with Shim - S-HG-529-01
J. Sash Groove Cover - S-VE-7023-CC
K. Sliding Cap - S-HG-530-CC
L. AccuVent Latch Trim Plate - S-HG-570-CC
(See page 18 for Detail) (*See note this page)
M. AccuVent Latch - S-HG-571-00
(See page 18 for Detail) (*See note this page)
N. Foot Lock Keeper (Optional) - S-HG-354-CC
(Foot Lock - S-HG-353-CC, located on interior
of active sash. (See page 18 for Detail)
NOTES:
* For re-order of all AccuVent
™
parts, please order the
AccuVent Latch Repair Kit, S-HG-571S-CC.
**For re-order of Screen Wheel Bracket Assembly,
please order Pack #10, S-DH-010S.
***For assistance on all re-orders, please contact your
Dealer or our Customer Service Team at
1-800-669-4711.
FRAME PARTS:
A. Header - S-VE-7002-CC
B. Sill - S-VE-7000-CC
C. RH Jamb - S-VE-7004R-CC
D. LH Jamb - S-VE-7004L-CC
E. Outer Cover - S-AE-6206-CC
(See page 19 for Detail)
F. Common Screen Inner Track - S-AE-6207-32
(See page 19 for Detail)
G. Jamb Covers (Ea. Side) - S-VE-0714-CC
H. AccuVent
™
Bolt Plate - S-HG-573S-CC
(See page 18 for Detail) (*See note this page)
End
Active Sash
(Interior Track)
Fixed
Center Sash
(Exterior Track)
Screen
(Screen Track)
Fixed
End Sash
(Interior Track)
A
B
C D
G
H
E
F
I
ML
N
(Hidden)
K
P
O
J
(Hidden)
K
To Next Page
