Hardware Overview and Installation
ORiNOCO
®
802.11n & 802.11ac Access Points - Hardware Installation Guide 10
2.2 ORiNOCO
®
AP-800 and AP-8000
2.2.1 Hardware Overview

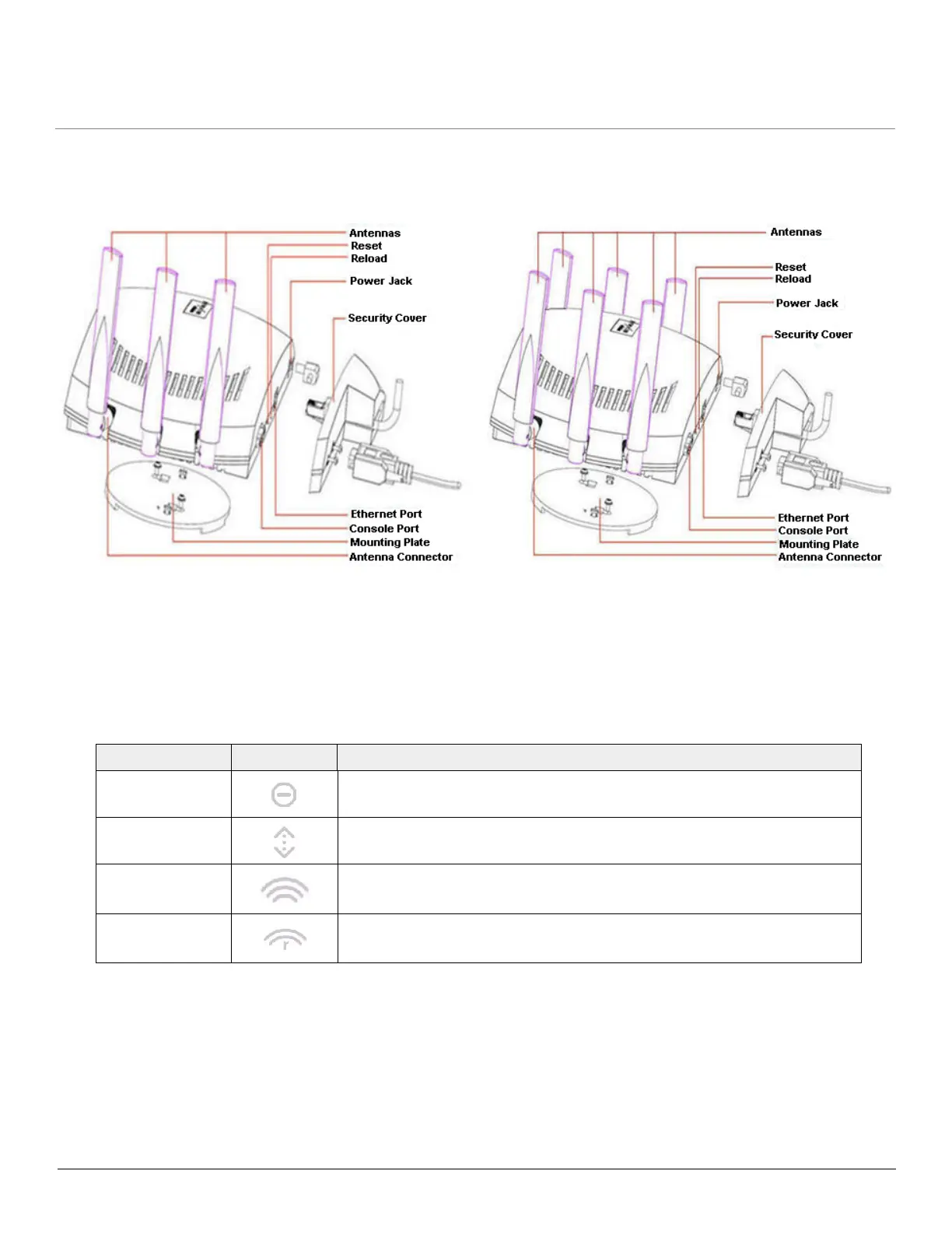

Figure 2-1 Device Overview
Following sections give you hardware overview of AP-800 and AP-8000.
2.2.1.1 LED Indicators
Tabulated below are the four LEDs, that are available on the top panel of the device:
2.2.1.2 Antennas
The AP device comes with 3x3 MIMO omni-directional antennas that are easy to install. Proxim also recommends you an
optional accessory - Range Extender Antenna (REA) with a 3 x RP SMA plug, that can be easily connected to the device.
See Installation Procedure, for details on installation of antennas.
– AP-800 comes with three omni directional antennas.
– AP-8000 comes with six omni directional antennas, three per radio.
LED Symbol Description
Power LED This LED indicates whether the device is switched on/off.
Ethernet LED This LED signals the traffic on the wired ethernet LAN.
Wireless Interface
(Radio) 1 LED
This LED provides the status of the traffic on wireless interface (radio) 1.
Refer Device Operational Modes.
Wireless Interface
(Radio) 2 LED
This LED provides the status of the traffic on wireless interface (radio) 2.
Refer Device Operational Modes.
ORiNOCO
®
AP-800 ORiNOCO
®
AP-8000
