Hardware Overview and Installation
ORiNOCO
®
802.11n & 802.11ac Access Points - Hardware Installation Guide 18
2.3.2.5 Cable Route
A slot for the CAT5e / CAT6 ethernet cable and the power cable to rest securely.
2.3.2.6 Vent-Holes
Ventilation holes on the device allow heat dissipation.
2.3.3 System Requirements
Following are the minimum system requirements to use the device:
1. Any 802.11 compliant wireless adapter.
2. A computer that is connected to the same IP network as the AP and has one of the following installed:
— Web Browser
—Telnet
— MIB Browser
— Ethernet NIC Card
3. Ethernet switch, cross-over or straight Ethernet cable.
4. A 12V DC Power Adapter or a Power over Ethernet (PoE) Adapter.
2.3.4 Product Package
Each shipment includes the items listed in the following table. Please verify that you have received all the parts in the
shipment, prior to the installation.

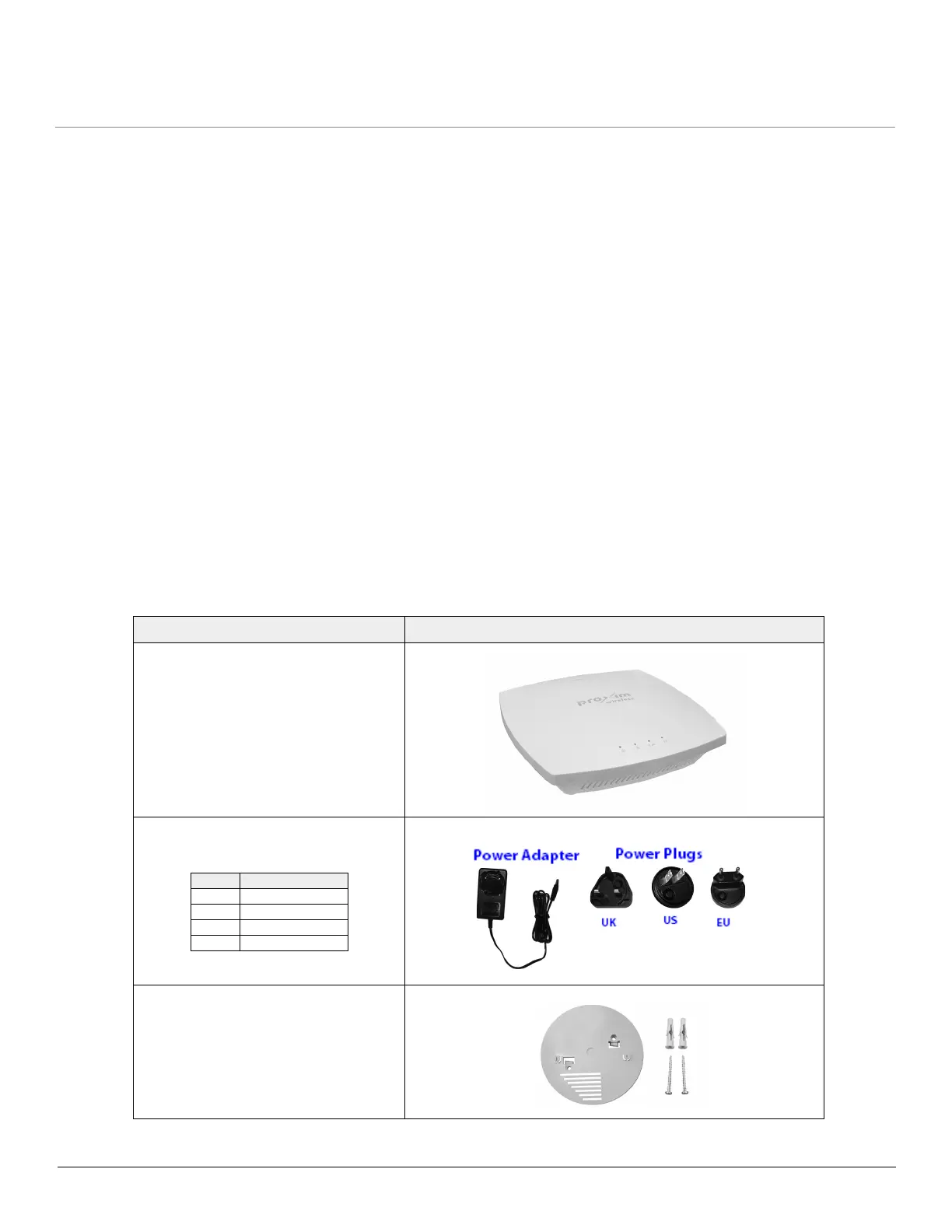

What’s in the Kit Image
ORiNOCO
®
AP-8100
Power adapter with Country specific
Power Plug(s)
Mounting Kit
SKU Power Plug(s)
WD US, UK, EU
US US
JP US
EU UK, EU
