802.11n Access Points - Software Management Guide 36
Click OK and COMMIT, to save the configured parameters.
5.3 Ethernet
This feature enables you to view and configure the speed and transmission mode of the ethernet interface. Navigate to
CONFIGURATION > Ethernet. The Ethernet Interface Properties screen appears.

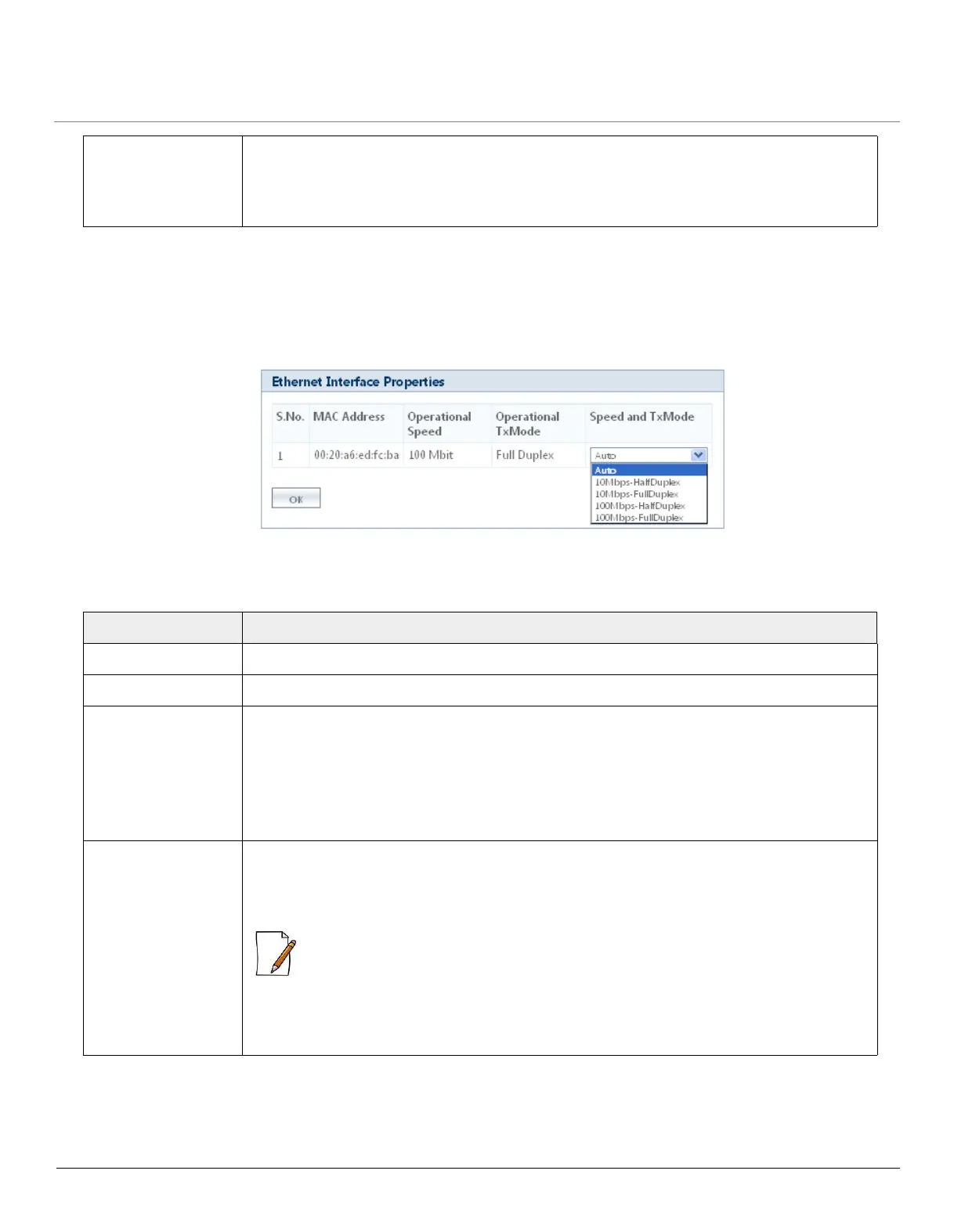

Figure 5-8 Ethernet Interface Properties
Tabulated below are ‘Ethernet Interface’ parameters and the method to configure the configurable parameters:
Click OK and COMMIT, to save the configured parameters.
Entry Status Specifies the status of the selected port.
By default, the Entry Status is disabled. To enable, select Enable from the drop down
menu.
Parameter Description
MAC Address Displays the MAC address of the ethernet Interface.
Operational Speed Displays the current operational speed of the ethernet interface.
Operational TxMode Displays the current operational mode of transmission over the ethernet interface. There are
two types of transmission modes:
– Half Duplex: Allows one-way transmission at a time; where only receive or transmit
operation can be performed at once.
– Full Duplex: Allows two-way transmission, where both receive and transmit
operations can be performed simultaneously.
Speed and TxMode Specifies the speed and transmission mode of the ethernet interface. By default, the AP
device is in Auto mode, which means that the AP device negotiates with its switch or hub to
automatically select the highest throughput option supported by both the ends of a wireless
link. To configure, select the Speed and TxMode from the drop down menu.
:
• ‘Speed and TxMode’ is configurable only for AP-8100.
• Ensure that the same ‘Speed and TxMode’ is configured at both the ends of a wired
link.
