Installationposition

Outdoorusage:

Whenusingtheactuatorsinenvironmentswithhigh
temperaturefluctuationsorhighhumidity,werecommend
usingaheatingresistor.




Figure2:Installationpositions

5.Function
ThePSFactuatorsaredesignedaselectricvalveactuatorswithfailsafefunction.Theactuatorismountedontothe
valveviapillars.Dependingonthetypeofvalveused,mountingpillarsoraspecialvalvemountingbracketis
required.
BasedonabrushlessDCmotor(BLDC)thegeneratedtorqueistransmittedvia
amulti‐stagespurgearontoaspindle
nut.Thespindlenuttransmitstheinputtorqueintoanaxialthrustforceviaaspindle .Thelinearstrokeis
transmittedtothevalvespindlebyacouplingpiece.
Thestrokeismeasuredandcontrolledbyalinear12BitHallsensor.
Incaseofmainspowerloss,thestrokemovementisinOPENorCLOSEdirectionbyspringforce.
Electricalwiringisdonetoa terminalblockundertheactuatorcover.

6.Manualoperation
























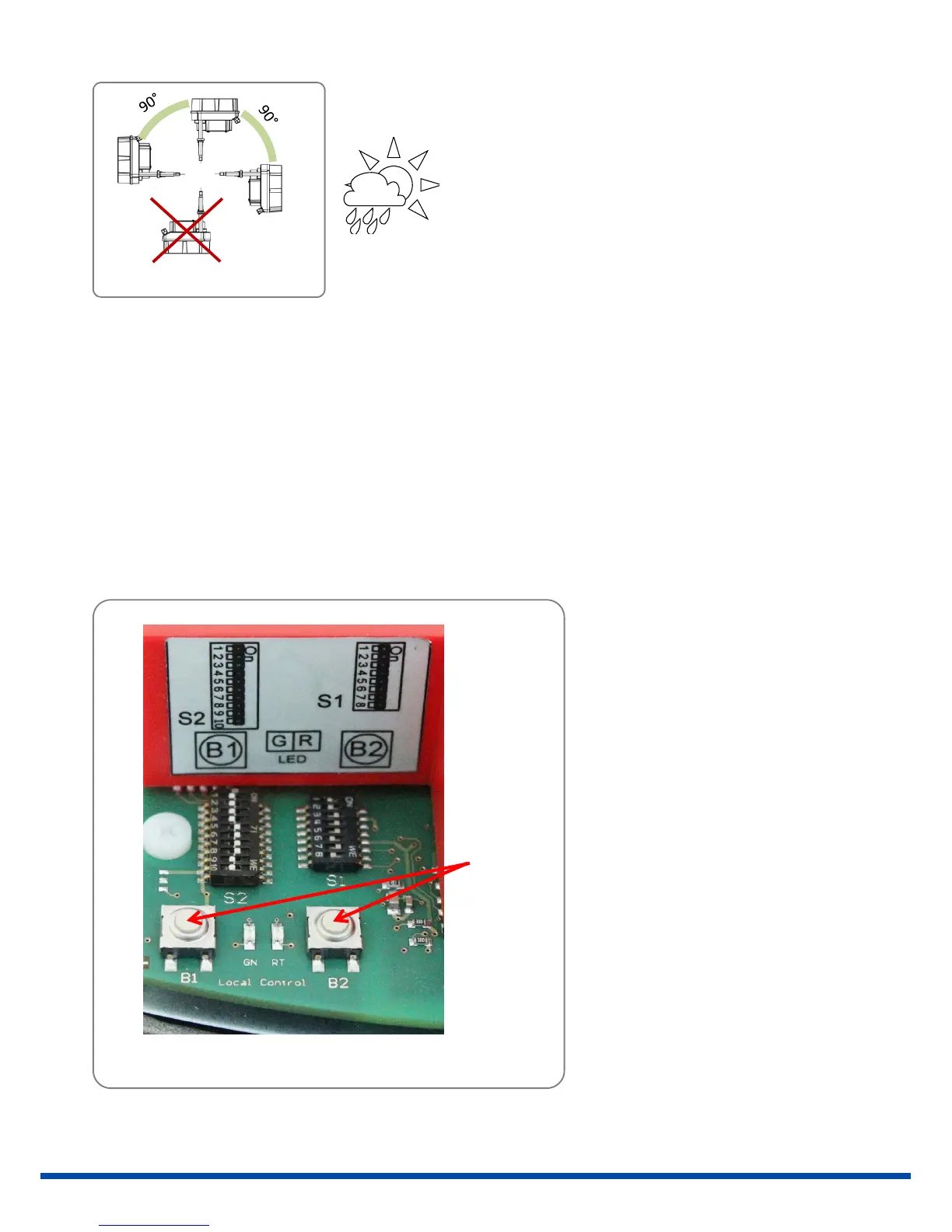

Figure3:Manualoperation



Twopushbuttonsareinstalledto
drivetheactuatorincaseof
installationworksuchasmounting
ontoavalve,orsettingthelimit
switchespositions(see10.7).

push
button
