11.1SplitRange

Thesetting“setvalue/splitrange”atS2‐3/4/9splitsthesetvalueintoanupperandalowerrange.Duetothis

functionmultipleactuatorscanbecontrolledbyonlyonesetvaluesignal.



11.2Valvecurve

WiththehelpoftheswitchpositionS2‐10,therelationbetweensetvalueandactuatorpositioncanbechosen.

Therearetwodifferentcurvestochoosefrom.Whenusingthelinearvalvecurve,theactuatorpositionin%

correspondstothesetvaluein%.The„Quick‐Opening‐curve“allows

aquickopeningofthevalveatasmallset

value.



Set value

Actuator 1

Actuator 2

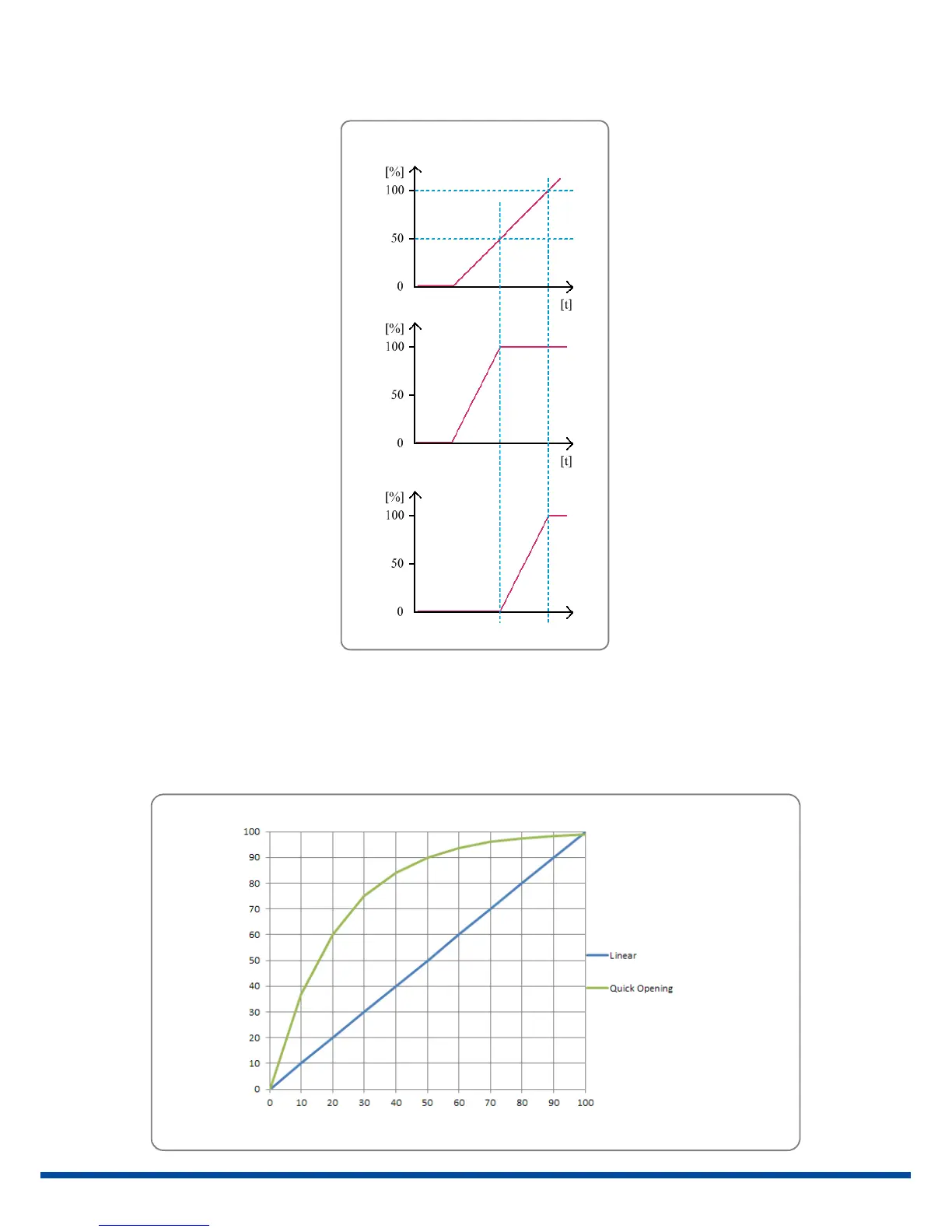

Figure8:SplitRange

Figure9:Valvecurve

Stroke %

Setvalue%
