15

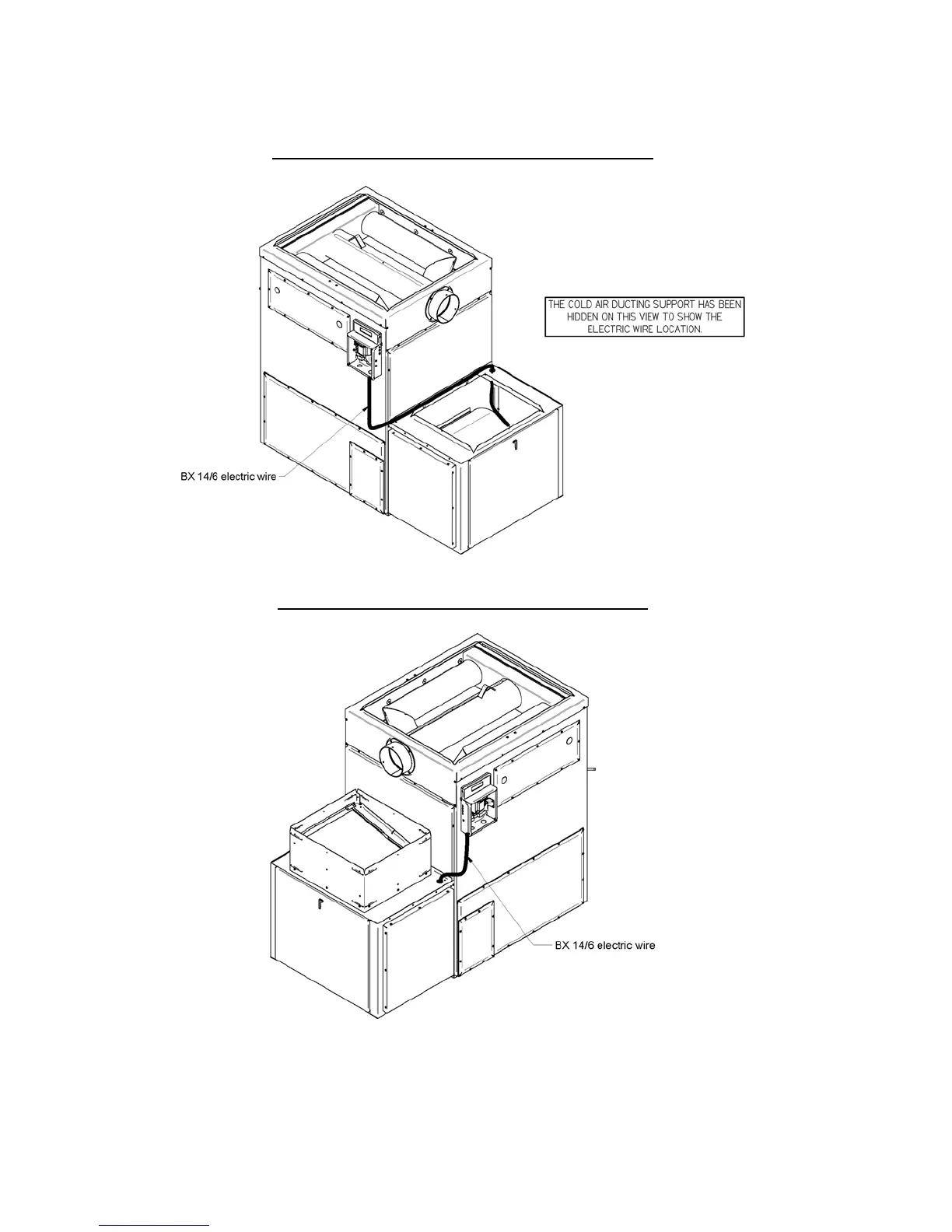

Now, it is time to make the connection between the control PCB and the blower. Since the control PCB may be
installed on either side of the furnace, refer to the drawings below to run the wire properly.
Control PCB installed on the RIGHT side of the furnace
Control PCB installed on the LEFT side of the furnace
