3.4 RTD SUPPORT BRACKET INSTALLATION AND CONNECTION
(resistance temperature detector)
Your Max Caddy furnace is equipped with a RTD probe (resistance temperature detector). This RTD probe must be
installed on the RTD support bracket. The RTD support bracket may be installed on left side or on the right side of

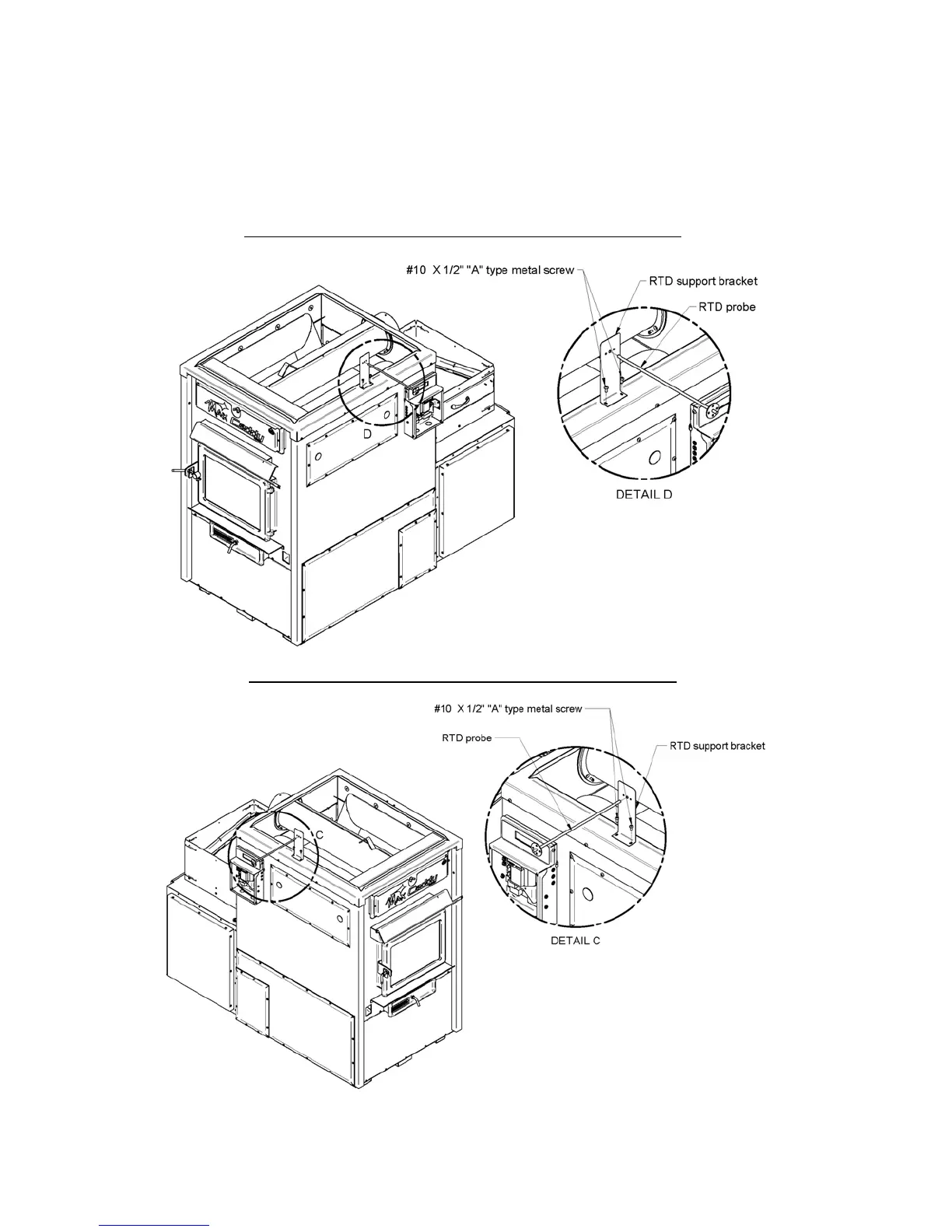

the furnace. To install it, all you need to do is to screw it in place in the two pre-drilled holes as shown below.
RTD support bracket installed on the RIGHT side of the furnace
RTD support bracket installed on the LEFT side of the furnace
