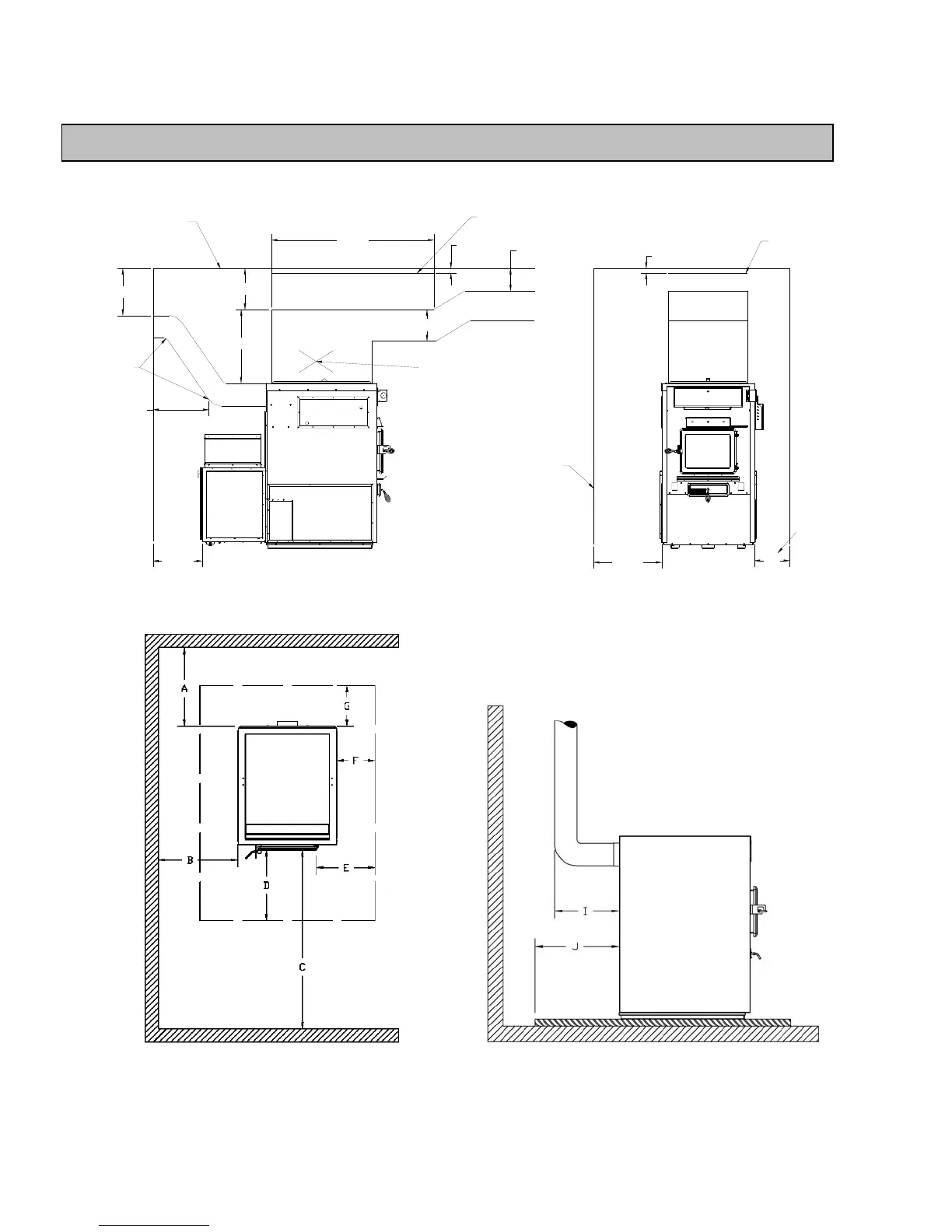

3.8 CLEARANCES TO COMBUSTIBLES AND FLOOR PROTECTOR
3/4"
HEAT SHIELD
24"
LEFT WALL
24" IF
UH-MAX
CADDY
72"
1"
24"
HOT AIR PLENUM
8" MIN
6"
STATIC
PRESSURE
CHECK POINT
MIN 0.20" W.C.
18"
45° ELBOW
18"
CEILING
3/4"
HEAT SHIELD
6"
24"
N.B. This appliance must be installed according to the instructions on the unit’s certification label.
