PSG MAX CADDY - Possible Installations

52

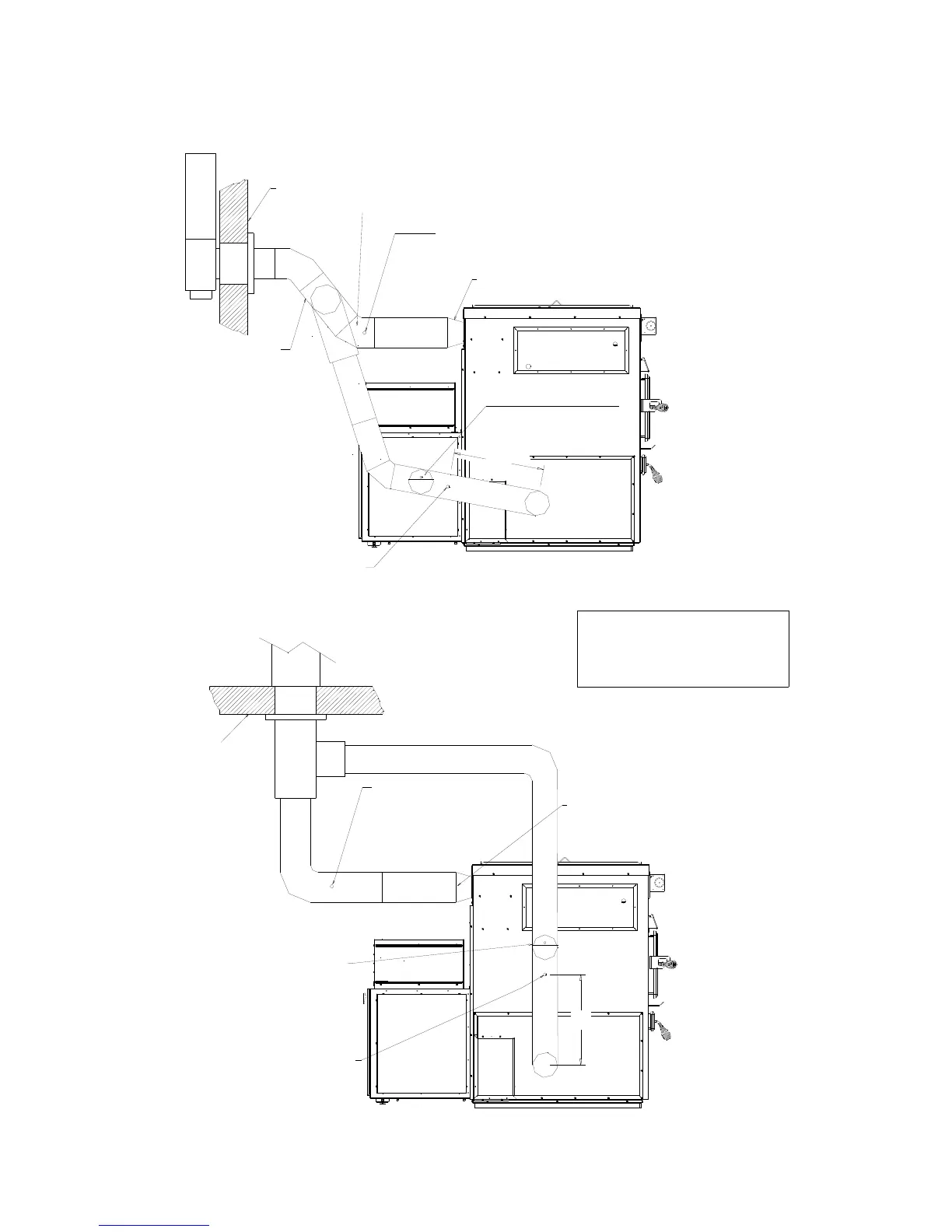

3.4 POSSIBLE INSTALLATIONS
FOR THE WOOD/OIL MAX CADDY
VERIFICATION HOLE
FOR OIL COMBUSTION
BAROMETRIC DAMPER 5"
DRAFT 0.02" W.C.
VERIFICATION HOLE
FOR OIL COMBUSTION
CEILING
Ø7"
18"
REDUCER 7" TO 6"
MINIMUM DRAFT IN
WOOD FLUE PIPE
0.04" W.C.
FURNACE TYPE CHIMNEY PIPE
DIAMETER
MAX CADDY *7"
*REQUIRE A FLUE PIPE REDUCER
WALL
T CONNECTOR
MINIMUM DRAUGHT IN
WOOD FLUE PIPE
0.04" W.C.
BAROMETRIC DAMPER 5"
DRAFT 0.02" W.C.
REDUCER 7" À 6"
1
8
"
Ø7"
ELBOW 45°
