3. APPLIANCE INSTALLATION
The installation instructions of this section apply to the wood-only Max Caddy, the wood-electric Max Caddy, the
wood-oil Max caddy, and the wood-oil-electric trio Max Caddy.
CAUTION: The following instructions do not supersede the local code.

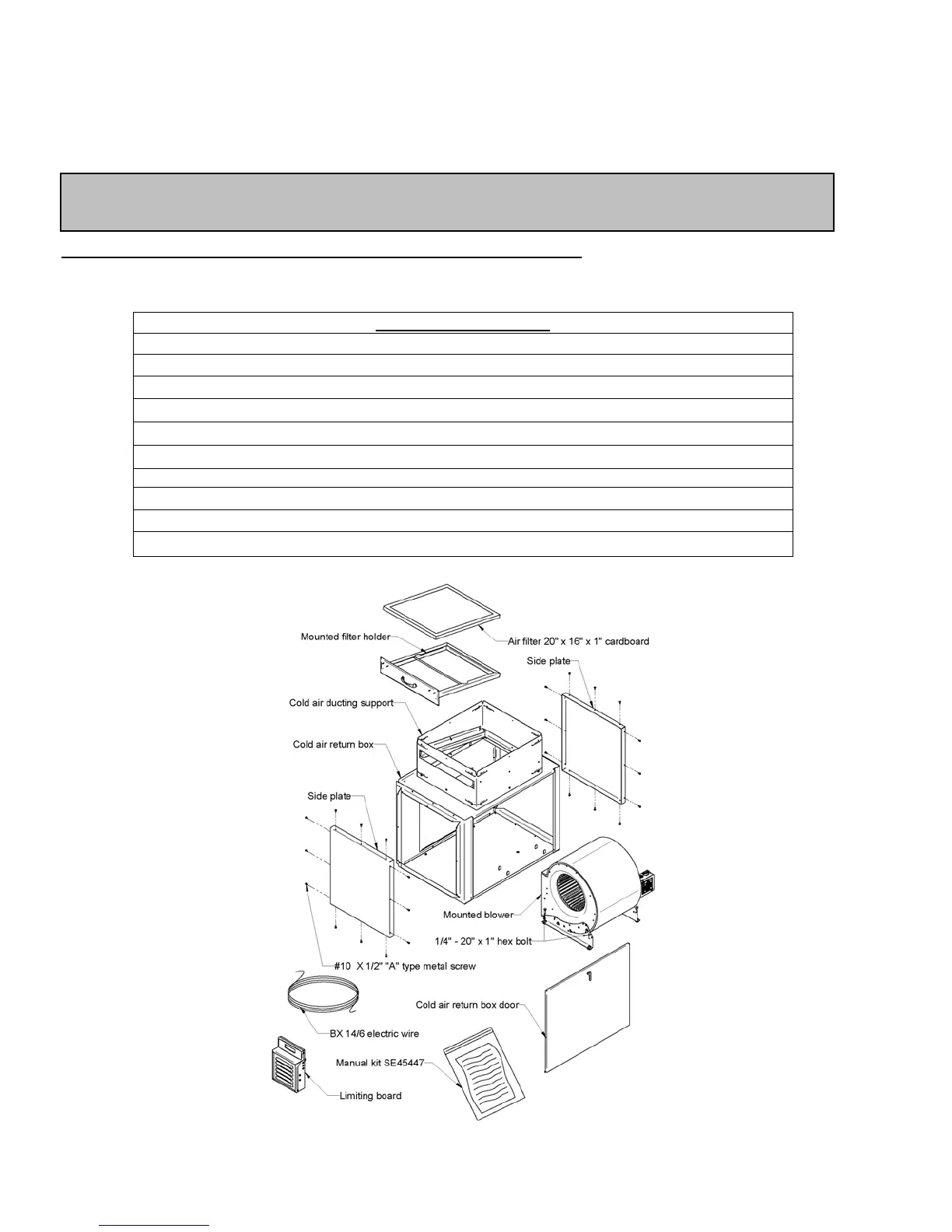

Detailed content of the blower box & electronic fan limit kit (#PA08565):
CONTENT OF THE BOX
1 X BLOWER ASSEMBLY MANUAL KIT FOR MAX CADDY
27 X #10 X ½’’ ‘’A’’ TYPE METAL SCREW
2 X ¼-20 X 1’’ ELEVATOR BOLT
1 X 100 OHM RTD - 38’’ WIRE
1 X RTD SUPPORT
1 X #8 X ½’’ METAL SCREW
1 X 3/8’’ 1 SCREW CONNECTOR FOR BX WIRE
1 X RED PLASTIC SLEEVE FOR BX WIRE
2 X RED PLASTIC SLEEVE FOR BX WIRE (ANTI-SHORT SIZE-2)
1 X ¾’’ SCREW CONNECTOR FOR BX WIRE
WARNING : THE INSTALLATION OF THIS APPLIANCE REQUIRES THE ADITION OF A
BLOWER BOX & ELECTRONIC FAN LIMIT KIT (#PA08565)
