19

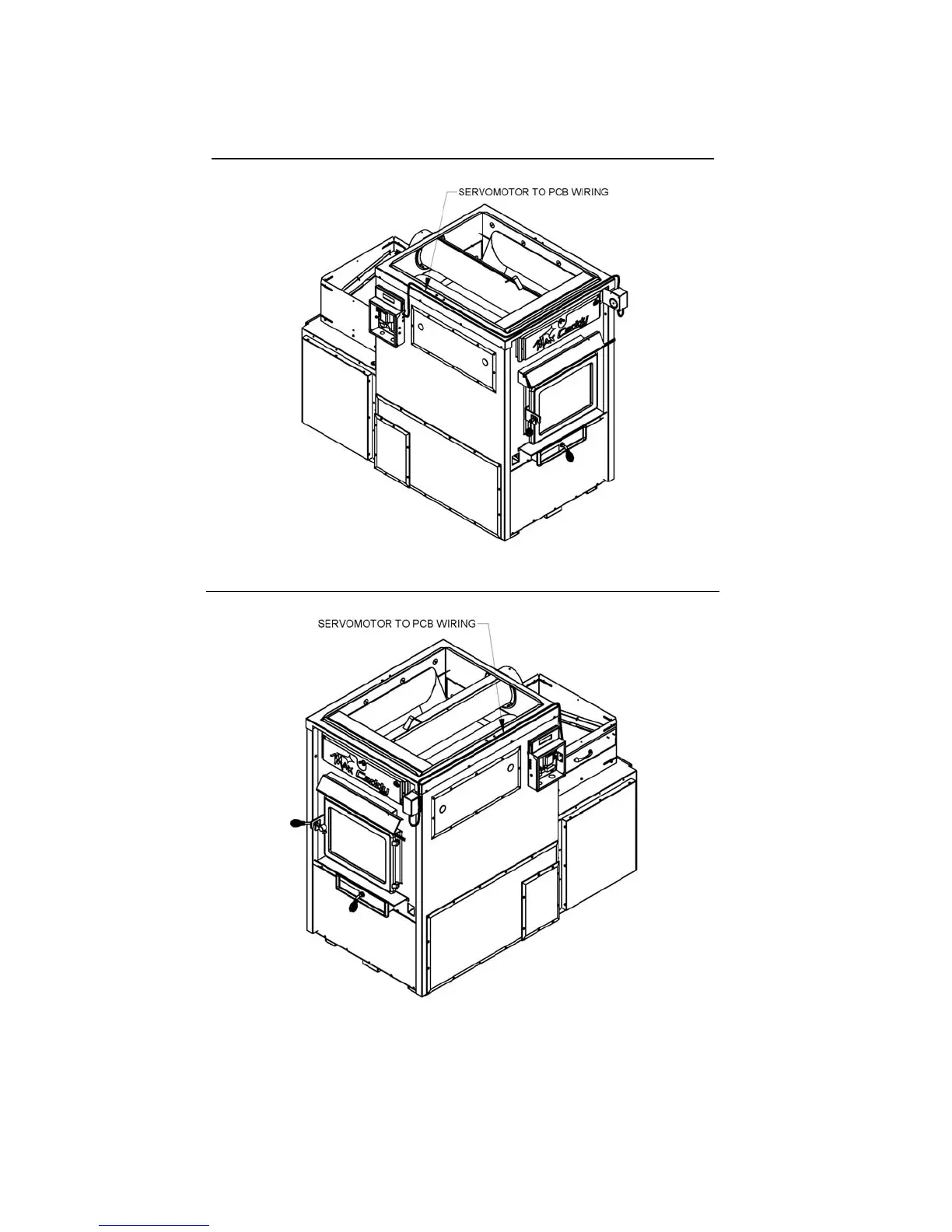

Then, you need to connect the servomotor to the control PCB. To do so, refer to the electric wiring diagram in
section 7. To run the wire properly, refer to the drawings below.
Wire running to the control PCB installed on the LEFT side of the furnace
Wire running to the control PCB installed on the RIGHT side of the furnace
WARNING: USE WIRING SUITABLE FOR 75
O
C (not supplied)
