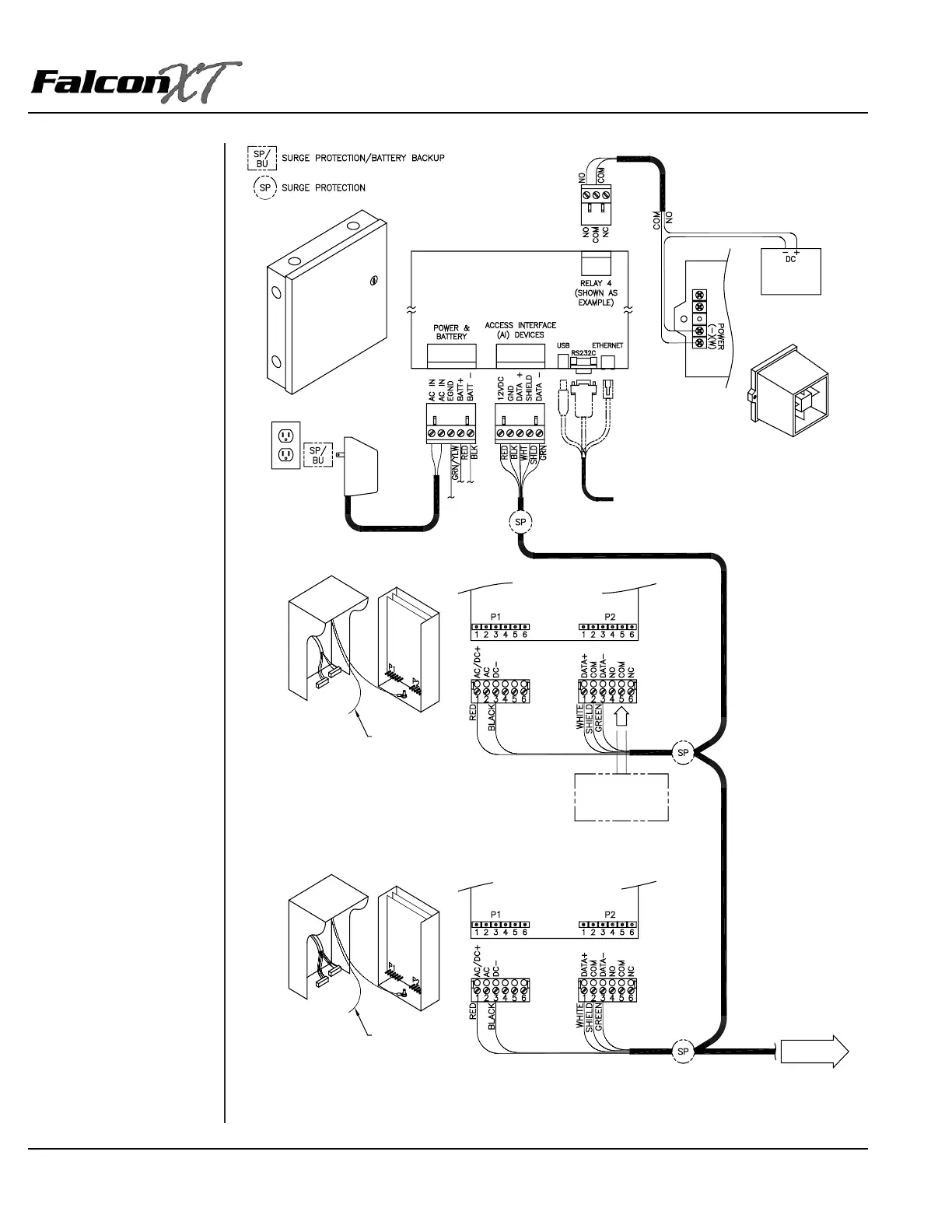

14
TO OTHER
AI DEVICES
REFER TO GATE OPERATOR MANUFACTURER
INSTALLATION INSTRUCTIONS FOR PROPER
WIRING TO KEYPAD RELAY.
ENTRANCE KEYPAD
GATE OPERATOR
EXIT KEYPAD
CONNECT TO
EARTH GROUND
CONNECT TO
EARTH GROUND
(DC POWER
CONNECTION
SHOWN)
(DC POWER
CONNECTION
SHOWN)
CONTROLLER
REFER TO SIREN MANUFACTURER
INSTALLATION INSTRUCTIONS
FOR PROPER SIREN WIRING.
12VDC
POWER
SUPPLY
DEDICATED POWER
SUPPLY FOR SINGLE
SIREN ONLY
EARTH GND
BATTERY
TO
SOFTWARE
COMPUTER
-OR- -OR-
CIRCUIT BOARD
