PTI security systems Falcon XT - Page 19

ChapTEr 1: prE-INSTallaTION
15

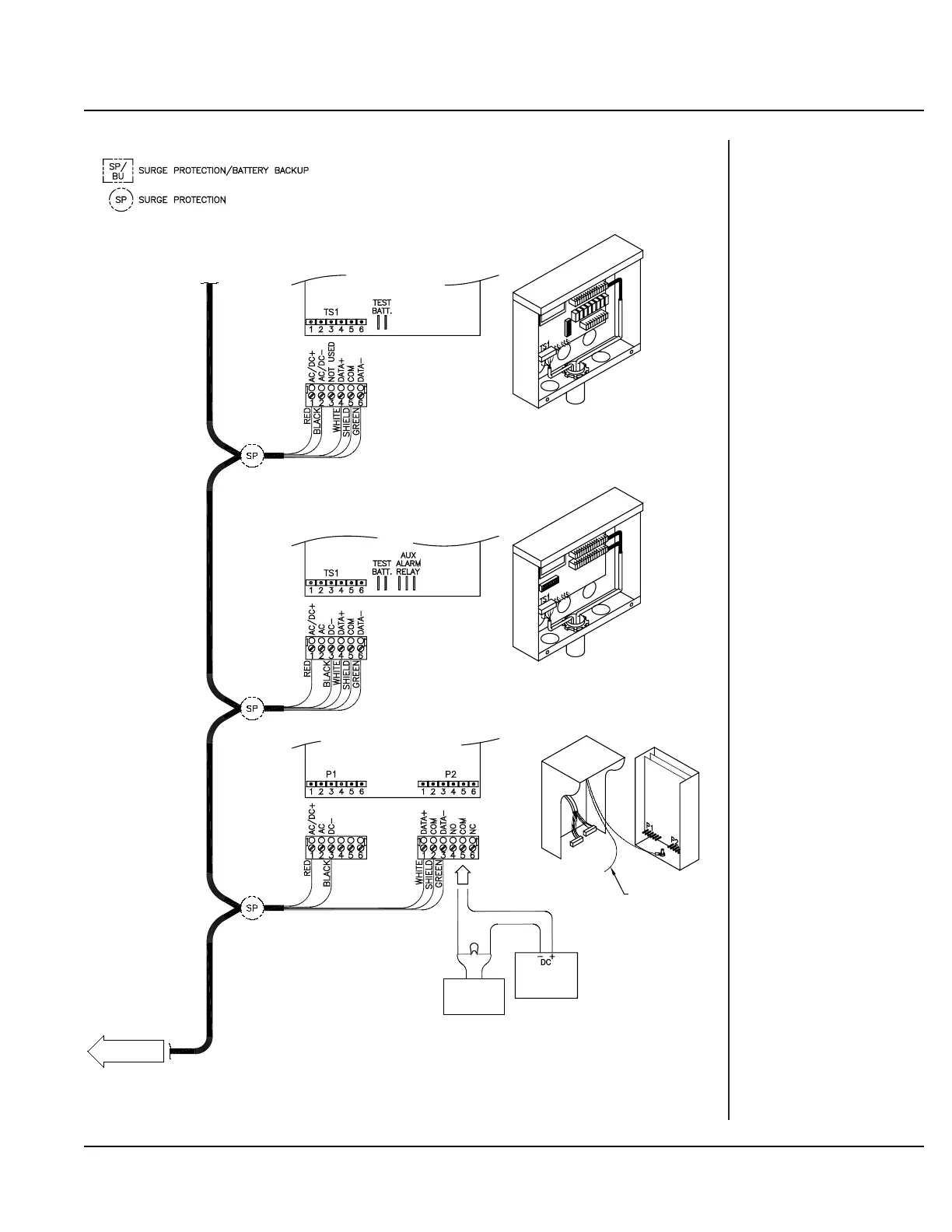

REFER TO DOOR STRIKE MANUFACTURER
INSTALLATION INSTRUCTIONS FOR
PROPER WIRING TO KEYPAD RELAY.
FROM OTHER
AI DEVICES
12VDC DOOR
STRIKE
12VDC
POWER
SUPPLY
BUILDING ENTRANCE
KEYPAD
DEDICATED POWER
SUPPLY FOR SINGLE
DOOR STRIKE ONLY
CONNECT TO
EARTH GROUND
(DC POWER
CONNECTION
SHOWN)
TO OTHER AI DEVICES
(REFER TO THE 'INSTALLING
THE AI DEVICES' CHAPTER
FOR SPECS ON AI DEVICES)
RELAY BOARD
MUX
